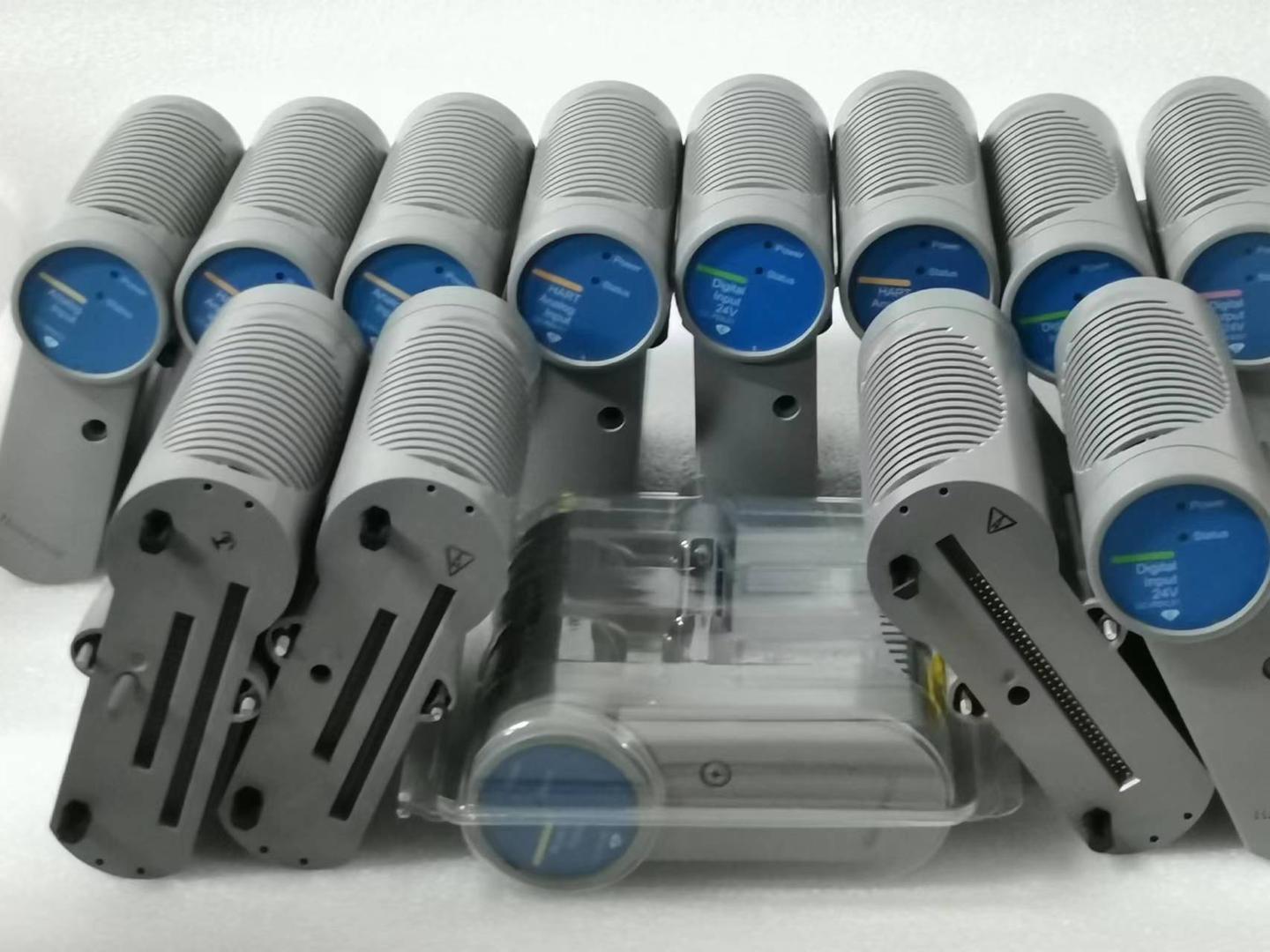

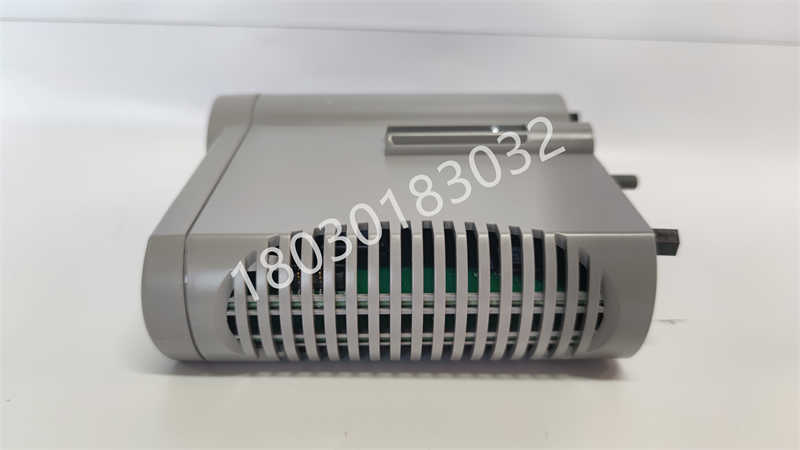

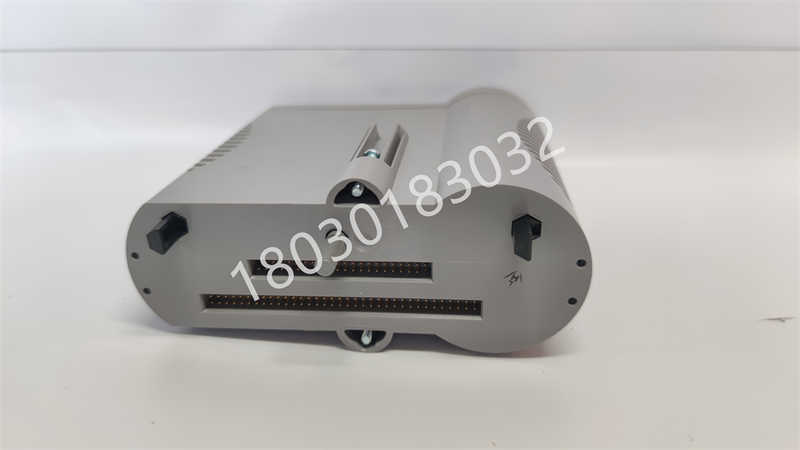

Honeywell CC-PDIS01 多功能數字量輸入模塊
產品概述
Honeywell CC-PDIS01 是一款高性能的多功能數字量輸入模塊，專為工業自動化和控制系統設計。它能夠接收和處理來自現場設備的數字信號，如開關狀態、傳感器讀數等，并將其轉換為控制系統能夠識別的標準數字信號。
技術規格
輸入通道數：32通道。
輸入信號類型：24V DC 和 100V AC。
工作電壓：24V DC。
工作溫度范圍：-40°C至+70°C。
通信接口：支持Modbus RTU協議。
防護等級：IP65。
安裝方式：面板安裝。
尺寸：未明確提供具體尺寸，但模塊設計緊湊，便于安裝。
重量：約2公斤。
功能特點
高精度信號處理：能夠精確采集和處理數字信號，確保信號的準確性和可靠性。
支持事件序列記錄：模塊可以記錄數字輸入的狀態變化，并按照時間順序記錄下來，方便用戶對系統事件進行分析和追溯。
靈活配置：支持多種通信協議，如Modbus、Profibus等，便于與其他控制系統和設備進行高效的數據交換和通信。
多種操作模式：
正常模式：20ms PV掃描。
事件序列模式：1ms分辨率SOE，20ms PV掃描。
低延遲模式：5ms PV掃描。
內部診斷：具備廣泛的內部診斷功能，確保數據完整性。
開路檢測：僅限正常模式。
冗余選項：支持冗余配置，提高系統可靠性。
內部或外部現場電源選擇：提供非易燃現場電源。
正向/反向輸入指示。
電流隔離：確保信號傳輸?shù)姆€(wěn)定性。
應用領域
工業自動化：用于需要高精度控制和監控的工業環境。
過程控制：在化工、能源、水處理等行業中，用于監測和控制過程參數。
安全系統：用于安全相關的監控和報警系統。
注意事項
安裝環境：確保模塊安裝在無塵、干燥且通風良好的環境中，避免高溫、高濕或腐蝕性氣體。
電氣連接：正確連接電源和信號線，避免接線錯誤導致的模塊損壞或性能下降。
Honeywell CC-PDIS01 多功能數字量輸入模塊憑借其高性能、多功能和高可靠性，成為工業自動化和控制系統中的重要組件。
Honeywell CC-PBIS01 Multi functional Digital Input Module
product overview
Honeywell CC-PDIS01 is a high-performance multifunctional digital input module designed specifically for industrial automation and control systems. It can receive and process digital signals from on-site devices, such as switch status, sensor readings, etc., and convert them into standard digital signals that the control system can recognize.
technical specifications
Number of input channels: 32 channels.
Input signal types: 24V DC and 100V AC.
Working voltage: 24V DC.
Working temperature range: -40 ° C to+70 ° C.
Communication interface: Supports Modbus RTU protocol.
Protection level: IP65.
Installation method: Panel installation.
Size: The specific size is not provided, but the module design is compact and easy to install.
Weight: Approximately 2 kilograms.
Functional Features
High precision signal processing: capable of accurately collecting and processing digital signals, ensuring the accuracy and reliability of the signals.
Support event sequence recording: The module can record the status changes of digital inputs and record them in chronological order, making it convenient for users to analyze and trace system events.
Flexible configuration: Supports multiple communication protocols such as Modbus, Profibus, etc., facilitating efficient data exchange and communication with other control systems and devices.
Multiple operating modes:
Normal mode: 20ms PV scan.
Event sequence mode: 1ms resolution SOE, 20ms PV scan.
Low latency mode: 5ms PV scan.
Internal diagnosis: It has a wide range of internal diagnostic functions to ensure data integrity.
Open circuit detection: limited to normal mode only.
Redundancy option: Supports redundant configuration to improve system reliability.
Internal or external on-site power supply selection: Provide non flammable on-site power supply.
Forward/reverse input indication.
Current isolation: Ensure the stability of signal transmission.
application area
Industrial automation: used in industrial environments that require high-precision control and monitoring.
Process control: Used in industries such as chemical, energy, and water treatment to monitor and control process parameters.
Security system: used for security related monitoring and alarm systems.
precautions
Installation environment: Ensure that the module is installed in a dust-free, dry, and well ventilated environment, avoiding high temperatures, high humidity, or corrosive gases.
Electrical connection: Connect power and signal lines correctly to avoid module damage or performance degradation caused by wiring errors.
The Honeywell CC-PBIS01 multifunctional digital input module has become an important component in industrial automation and control systems due to its high performance, versatility, and reliability.
