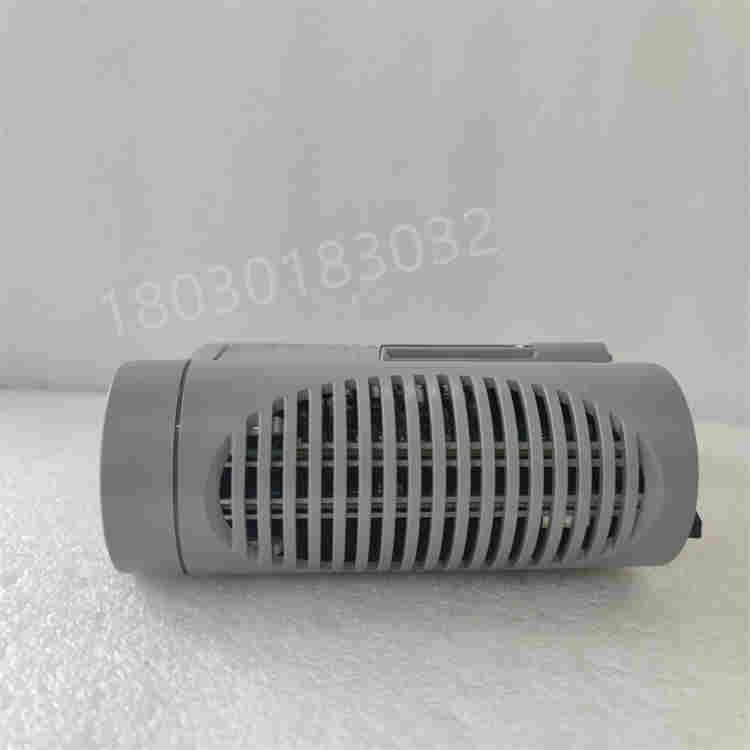

Honeywell CC-PAIH02 模擬輸入模塊
技術規格
輸入/輸出型號：CC-PAIH02 - 高電平模擬輸入，支持HART協議。
輸入類型：電壓、電流（2線制或自供電變送器）。
輸入通道數：16通道（12單端/4差分）。
共模抑制比：70dB（直流至60Hz，500Ω源不平衡）。
共模電壓：-6V至+5V峰值（直流至60Hz）。
A/D轉換器分辨率：16位。
輸入范圍：0至5V、1至5V、0.4至2V、4-20mA（通過250Ω）。
正常模式抑制比：60dB（直流至60Hz）。
正常模式濾波響應：單極RC濾波器，-3dB@6.5Hz。
最大正常模式輸入：±30V（差分輸入，無損壞）。
通道間串擾：-60dB（直流至60Hz）。
輸入阻抗（電壓輸入）：>10MΩ（供電）。
輸入掃描速率：50ms。
硬件精度（CMV=0V）：±0.075%滿量程（23.5°±2°C）、±0.15%滿量程（0至60°C）。
變送器現場電源調節：為Class 1, Div 2非易燃接口提供單獨保護的電流限制電路，無需熔斷器。
功能特點
多通道模擬輸入：提供多個模擬輸入通道，可同時接收和處理多個傳感器的模擬信號，滿足多點監測和控制需求。
HART通信協議：支持HART協議，實現與智能現場設備的雙向數字通信，便于遠程配置、校準、獲取設備狀態信息及故障診斷。
高精度數據采集：具備高精度數據采集能力，實時采集和記錄模擬輸入信號數值，為控制系統決策提供可靠依據。
靈活配置和擴展：支持靈活配置和擴展，用戶可根據實際需求調整模塊參數和配置，提供豐富接口和通信選項，便于與其他設備和系統集成。
可靠性和穩定性：經過嚴格測試和驗證，可在惡劣工作環境下穩定運行。
應用領域
過程控制：在化工、石油、制藥等行業中，用于監測和控制各種工藝參數。
溫度監控：在制造業、數據中心等場所，用于監測環境溫度并確保設備正常運行。
液位測量：在儲罐、水池等容器中，用于測量液位高度。
流量測量：在管道系統中，用于測量流體流量。
壓力測量：在氣動、液壓等系統中，用于測量壓力值。
振動監控：用于監測設備的振動情況，確保設備運行平穩。
資產跟蹤：用于跟蹤設備和資產的位置和狀態。
狀態監控：用于監控設備的運行狀態，及時發現潛在問題。
安全系統：用于安全相關的監控和報警系統。
Honeywell CC-PAIH02 模擬輸入模塊憑借其高性能、多功能和高可靠性，成為工業自動化和控制系統中的重要組件。
Honeywell CC-PAIH02 Analog Input Module
technical specifications
Input/output model: CC-PAIH02- High level analog input, supports HART protocol.
Input type: voltage, current (2-wire system or self powered transmitter).
Number of input channels: 16 channels (12 single ended/4 differential).
Common mode rejection ratio: 70dB (DC to 60Hz, 500 Ω source imbalance).
Common mode voltage: -6V to+5V peak (DC to 60Hz).
A/D converter resolution: 16 bits.
Input range: 0 to 5V, 1 to 5V, 0.4 to 2V, 4-20mA (via 250 Ω).
Normal mode suppression ratio: 60dB (DC to 60Hz).
Normal mode filtering response: unipolar RC filter, -3dB@6.5Hz .
Maximum normal mode input: ± 30V (differential input, no damage).
Channel crosstalk: -60dB (DC to 60Hz).
Input impedance (voltage input):>10M Ω (power supply).
Input scanning rate: 50ms.
Hardware accuracy (CMV=0V): ± 0.075% full scale (23.5 °± 2 ° C), ± 0.15% full scale (0 to 60 ° C).
On site power regulation for transmitters: Provide separate current limiting circuits for Class 1, Div 2 non flammable interfaces without the need for fuses.
Functional Features
Multi channel analog input: Provides multiple analog input channels that can simultaneously receive and process analog signals from multiple sensors, meeting the needs of multi-point monitoring and control.
HART communication protocol: Supports the HART protocol to achieve bidirectional digital communication with intelligent field devices, facilitating remote configuration, calibration, acquisition of device status information, and fault diagnosis.
High precision data acquisition: With high-precision data acquisition capability, real-time acquisition and recording of analog input signal values provide reliable basis for control system decision-making.
Flexible configuration and expansion: Supports flexible configuration and expansion, allowing users to adjust module parameters and configurations according to actual needs, providing rich interfaces and communication options for easy integration with other devices and systems.
Reliability and stability: After rigorous testing and verification, it can operate stably in harsh working environments.
application area
Process control: used in industries such as chemical, petroleum, and pharmaceutical to monitor and control various process parameters.
Temperature monitoring: used in manufacturing, data centers, and other places to monitor environmental temperature and ensure the normal operation of equipment.
Liquid level measurement: used to measure the height of liquid level in containers such as storage tanks and water tanks.
Flow measurement: used in pipeline systems to measure fluid flow.
Pressure measurement: used in pneumatic, hydraulic and other systems to measure pressure values.
Vibration monitoring: used to monitor the vibration situation of equipment and ensure smooth operation of the equipment.
Asset tracking: used to track the location and status of equipment and assets.
Status monitoring: used to monitor the operational status of equipment and promptly identify potential issues.
Security system: used for security related monitoring and alarm systems.
The Honeywell CC-PAIH02 analog input module has become an important component in industrial automation and control systems due to its high performance, versatility, and high reliability.
