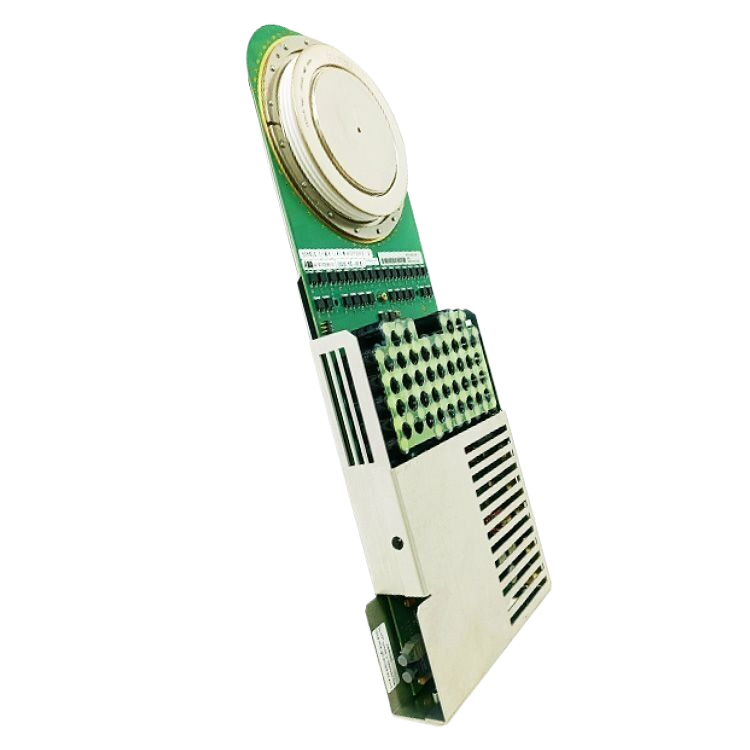

ABB 5SHY35L4512晶閘管可控硅模塊

1. 產品定位與技術規格

類型：IGCT（門極換流晶閘管），結合GTO的高阻斷能力與IGBT的開關特性。

電壓等級：支持220V工作電壓，適配中壓變流器。

電流能力：通態電流范圍100-400A，低通態壓降（2V @4000A），適合高頻（<100 Hz）及寬溫運行。

觸發方式：支持交流或直流觸發，控制靈活。

封裝特性：模塊化設計，便于集成與散熱管理。

2. 核心功能優勢

高效開關：微秒級響應，支持高頻切換，提升系統效率。

集成保護：內置狀態反饋與保護電路，增強可靠性。

電磁兼容：高抗干擾設計，適應復雜工業環境。

熱穩定性：優化散熱結構，支持長時間高負載運行。

3. 典型應用場景

工業傳動：用于變頻器、逆變器，控制電機速度與扭矩。

電力系統：參與高壓直流輸電（HVDC）、無功補償及諧波抑制。

可再生能源：太陽能/風力發電中的電力轉換。

自動化控制：作為無觸點開關替代傳統繼電器，延長設備壽命。

4. 與傳統器件對比

特性 5SHY35L4512 傳統GTO/IGBT

開關效率 微秒級響應，高頻切換 響應較慢，高頻下?lián)p耗增加

通態壓降 2V @4000A，更低損耗 壓降較高，發熱量較大

電磁兼容性 高抗干擾設計 需額外屏蔽措施

集成度 內置保護電路，簡化系統設計 需外部保護電路

ABB 5SHY35L4512 thyristor controlled silicon module

1. Product positioning and technical specifications

Type: IGCT (Gate commutated thyristor), combining the high blocking capability of GTO with the switching characteristics of IGBT.

Voltage level: Supports 220V working voltage and is compatible with medium voltage converters.

Current capability: On state current range 100-400A, low on state voltage ｄｒｏｐ (2V @ 4000A), suitable for high-frequency (<100 Hz) and wide temperature operation.

Trigger mode: Supports AC or DC triggering, with flexible control.

Encapsulation feature: Modular design for easy integration and heat management.

2. Core functional advantages

Efficient switch: microsecond level response, supports high-frequency switching, and improves system efficiency.

Integrated protection: Built in status feedback and protection circuit to enhance reliability.

Electromagnetic compatibility: high anti-interference design, suitable for complex industrial environments.

Thermal stability: Optimized heat dissipation structure, supports long-term high load operation.

3. Typical application scenarios

Industrial transmission: used for frequency converters and inverters to control motor speed and torque.

Power system: Participate in high-voltage direct current transmission (HVDC), reactive power compensation, and harmonic suppression.

Renewable energy: electricity conversion in solar/wind power generation.

Automation control: As a contactless switch to ｒｅｐｌａｃｅ traditional relays, it extends the lifespan of equipment.

4. Comparison with traditional devices

Characteristics 5SHY35L4512 Traditional GTO/IGBT

Switching efficiency with microsecond level response, slow high-frequency switching response, and increased losses at high frequencies

On state voltage ｄｒｏｐ 2V @ 4000A, lower loss, higher voltage ｄｒｏｐ, and greater heat generation

High electromagnetic compatibility and anti-interference design require additional shielding measures

Integrated with built-in protection circuit, simplifying system design requires external protection circuit
