以下是對ABB CSA463AE通訊網關控制板：

一、技術規格

核心功能

高精度監測：實時采集設備運行數據（如溫度、電壓、轉速），支持故障預警。

遠程通信：支持以太網、Modbus、Profinet等協議，實現與SCADA系統或云平臺的數據交互。

環境適應性：

工作溫度范圍：-40℃至55℃

防護等級：IP54（防塵、防水濺）

自然冷卻設計，無需額外散熱設備。

硬件參數

輸入/輸出：支持?jǐn)?shù)字量（DI/DO）、模擬量（AI/AO）及組合信號（GI/GO）。

通信接口：內置以太網口，支持RS-232/RS-485擴展。

電源要求：220V交流供電，功率≤1200W。

二、配置指南

基礎配置流程

網絡設置：

通過示教器進入控制面板 > 配置 > 網絡，設置IP地址、子網掩碼。

示例：若連接PLC，需確保雙方IP在同一網段（如機器人IP設為192.168.1.100，PLC設為192.168.1.200）。

I/O信號映射：

在配置 > I/O系統中定義信號名稱（如Motor_Start）及類型（數字/模擬）。

注意：信號名稱需唯一，首字符為字母，長度≤16字符。

高級功能配置

通信協議選擇：

在通信設置中選擇協議（如Profinet需配置設備名稱及GSD文件）。

安全參數：

配置訪問權限（如Access Level設為Write允許外部設備修改參數）。

三、兼容性

系統兼容性

支持設備：兼容ABB AC800M系列DCS系統、主流PLC（如西門子S7-1500）及工業機器人控制器。

軟件工具：需使用ABB官方軟件（如RobotStudio、Control Builder）進行編程和調試。

物理接口

電氣接口：支持M12連接器（D編碼）或RJ45以太網口。

機械安裝：采用導軌安裝或面板固定方式，適配標準控制柜。

四、故障排除

常見通信問題

故障現象：示教器顯示“通信超時”。

排查步驟：

檢查網線是否松動，更換備用網線測試。

確認雙方IP地址無誤（避免沖突）。

重啟控制板及外部設備，觀察是否恢復。

硬件故障處理

LED狀態：

若ERROR燈常亮，可能為內部保險絲熔斷，需聯系A(chǔ)BB售后更換。

信號干擾：

檢查電纜屏蔽層是否接地，避免與高功率電纜并行布線。

五、應用場景

工業自動化：用于生產線狀態監控（如電機溫度、壓力傳感器數據采集）。

能源管理：集成到智能電網中，實現遠程設備控制（如變頻器啟停）。

機器人控制：作為ABB機器人與MES系統的通信樞紐，傳輸生產數據。

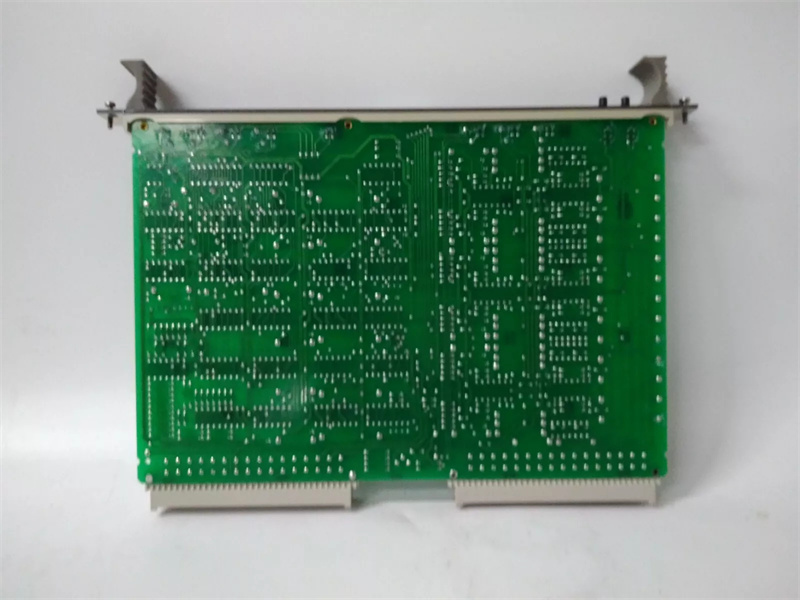

The following is the ABB CSA463AE communication gateway control board:

1、 Technical specifications

Core functions

High precision monitoring: Real time collection of equipment operation data (such as temperature, voltage, speed), supporting fault warning.

Remote communication: Supports protocols such as Ethernet, Modbus, Profinet, etc., to achieve data exchange with SCADA systems or cloud platforms.

Environmental adaptability:

Working temperature range: -40 ℃ to 55 ℃

Protection level: IP54 (dustproof, waterproof splash)

Natural cooling design, no additional heat dissipation equipment required.

Hardware parameters

Input/Output: Supports digital signals (DI/DO), analog signals (AI/AO), and combined signals (GI/GO).

Communication interface: Built in Ethernet port, supporting RS-232/RS-485 expansion.

Power requirement: 220V AC power supply, power ≤ 1200W.

2、 Configuration Guide

Basic configuration process

Network settings:

Go to Control Panel>Configuration>Network through the teaching pendant, and set the IP address and subnet mask.

Example: If connecting to a PLC, it is necessary to ensure that both IP addresses are in the same network segment (such as setting the robot IP to 192.168.1.100 and the PLC to 192.168.1.200).

I/O signal mapping:

Define signal names (such as Motor_Start) and types (digital/analog) in Configuration>I/O System.

Attention: The signal name must be unique, with a letter as the first character and a length of ≤ 16 characters.

Advanced feature configuration

Communication protocol selection:

ｓｅｌｅｃｔ the protocol in the communication settings (such as Profinet, which requires configuring the device name and GSD file).

Security parameters:

Configure access permissions (such as setting Access Level to Write to allow external devices to modify parameters).

3、 Compatibility

system compatibility

Supporting devices: compatible with ABB AC800M series DCS systems, mainstream PLCs (such as Siemens S7-1500), and industrial robot controllers.

Software tools: ABB official software (such as RobotStudio, Control Builder) is required for programming and debugging.

physical interface

Electrical interface: Supports M12 connector (D code) or RJ45 Ethernet port.

Mechanical installation: using guide rail installation or panel fixing method, suitable for standard control cabinets.

4、 Troubleshooting

Common communication issues

Fault phenomenon: The teaching pendant displays "communication timeout".

Troubleshooting steps:

Check if the network cable is loose and ｒｅｐｌａｃｅ it with a spare cable for testing.

Confirm that both parties' IP addresses are correct (to avoid conflicts).

Restart the control board and external devices and observe if they are restored.

Hardware fault handling

LED status:

If the ERROR light stays on, it may be due to a blown internal fuse, and ABB after-sales service needs to be contacted for replacement.

Signal interference:

Check if the cable shielding layer is grounded and avoid parallel wiring with high-power cables.

5、 Application scenarios

Industrial automation: used for monitoring the status of production lines (such as collecting data from motor temperature and pressure sensors).

Energy management: integrated into the smart grid to achieve remote device control (such as frequency converter start stop).

Robot control: As the communication hub between ABB robots and MES systems, it transmits production data.
