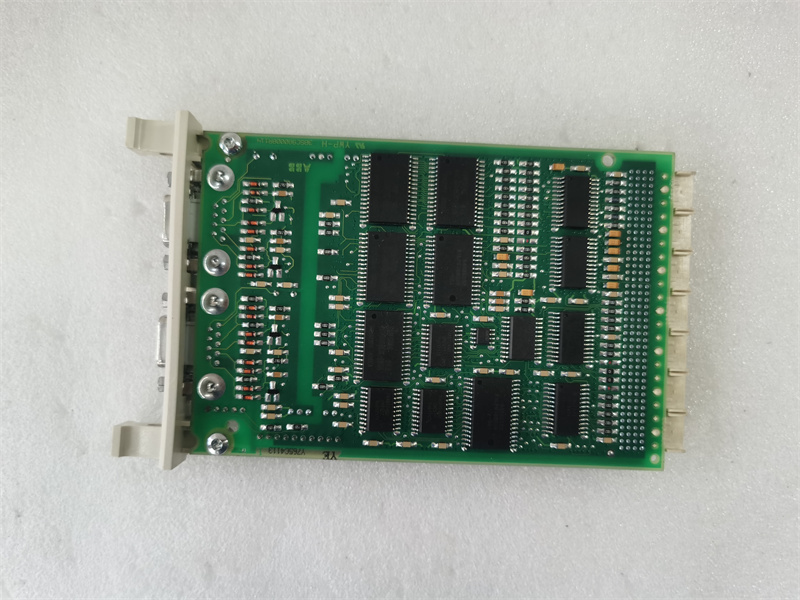

ABB CI541V1 (S800 通訊卡) 模擬量輸入輸出模塊

一、產品概述

ABB CI541V1 是S800 I/O系統中的一款通信接口模塊，專為工業自動化設計，支持模擬量信號的輸入與輸出，實現設備間的數據傳輸和遠程控制。該模塊廣泛應用于電力、化工、石油天然氣、制造業等領域，適用于分布式控制系統，支持多種通信協議（如Modbus、Profibus等）。

二、核心功能

模擬量信號處理

支持4-20mA電流、0-10V電壓等標準模擬量信號。

可配置為熱電阻（如Pt100）或熱電偶（如K型）測量模式，適用于溫度監測。

提供差分輸入選項，減少干擾，提升測量精度。

通信協議支持

兼容以太網、RS-232/RS-485串行通信及主流工業協議（Modbus、Profibus、DeviceNet等）。

支持冗余通信配置，增強系統可靠性。

模塊化與擴展性

屬于S800 I/O系統，支持橫向擴展安裝，單站最多集成24個I/O模塊。

通過光纖ModuleBus擴展，覆蓋遠程分布式控制需求。

三、技術規格

參數 詳情

工作電壓 24V DC（供電電源來自I/O總線）

信號類型 模擬量輸入/輸出：4-20mA、0-10V；數字量I/O（部分型號支持）

分辨率 12位模擬量轉換精度

通信接口 支持以太網、串行接口及工業協議（需配置）

環境適應性 符合G3標準，耐受惡劣工業環境（如高溫、振動）

安裝方式 DIN導軌安裝或墻面固定，支持模塊化組合

四、應用場景

工業自動化控制

在電廠、礦場、鋼廠中用于設備狀態監測（如溫度、壓力、流量）。

與PLC、傳感器等設備配合，實現閉環控制。

環境監測

部署于水處理、環保領域，用于采集水質、氣體濃度等模擬量數據。

分布式控制系統

通過光纖擴展，覆蓋大型工廠的多區域控制需求，降低布線成本。

五、安裝與配置指南

電氣連接

使用屏蔽電纜并接地，避免信號干擾。

未使用的模擬量通道需設為“未使用”狀態，防止錯誤診斷。

配置工具

通過ABB提供的配置軟件（如Control Builder）設置通信協議、I/O通道參數。

支持熱電阻/熱電偶的接線配置（如2線制、3線制）。

冗余設計

關鍵應用可配置冗余電源和I/O通道，提升系統容錯能力。

ABB CI541V1 (S800 communication card) analog input/output module

1、 Product Overview

ABB CI541V1 is a communication interface module in the S800 I/O system, designed specifically for industrial automation. It supports the input and output of analog signals, enabling data transmission and remote control between devices. This module is widely used in fields such as power, chemical, oil and gas, manufacturing, etc. It is suitable for distributed control systems and supports multiple communication protocols (such as Modbus, Profibus, etc.).

2、 Core functions

Analog signal processing

Supports standard analog signals such as 4-20mA current and 0-10V voltage.

Can be configured as a thermistor (such as Pt100) or thermocouple (such as K-type) measurement mode, suitable for temperature monitoring.

Provide differential input options to reduce interference and improve measurement accuracy.

Communication protocol support

Compatible with Ethernet, RS-232/RS-485 serial communication, and mainstream industrial protocols such as Modbus, Profibus, DeviceNet, etc.

Support redundant communication configuration to enhance system reliability.

Modularity and Scalability

Belonging to the S800 I/O system, it supports horizontal expansion installation and can integrate up to 24 I/O modules in a single station.

Expand through fiber optic Module Bus to cover remote distributed control requirements.

3、 Technical specifications

Parameter details

Working voltage 24V DC (power supply from I/O bus)

Signal type analog input/output: 4-20mA, 0-10V; Digital I/O (supported by some models)

Resolution 12 bit analog conversion accuracy

Communication interface supports Ethernet, serial interface, and industrial protocol (configuration required)

Environmental adaptability meets G3 standards and can withstand harsh industrial environments such as high temperatures and vibrations

Installation method: DIN rail installation or wall fixing, supporting modular combination

4、 Application scenarios

industrial automation control

Used for equipment condition monitoring (such as temperature, pressure, flow) in power plants, mines, and steel mills.

Cooperate with PLC, sensors and other equipment to achieve closed-loop control.

environmental monitoring

Deploy in the fields of water treatment and environmental protection, used to collect analog data such as water quality and gas concentration.

DCS

By expanding through fiber optics, we can cover the multi area control needs of large factories and reduce wiring costs.

5、 Installation and Configuration Guide

Electrical connection

Use shielded cables and ground them to avoid signal interference.

Unused analog channels should be set to "unused" status to prevent incorrect diagnosis.

Configuration tool

Set communication protocols and I/O channel parameters through configuration software provided by ABB, such as Control Builder.

Support wiring configuration for thermistor/thermocouple (such as 2-wire system, 3-wire system).

Redundant design

Key applications can be configured with redundant power supplies and I/O channels to enhance system fault tolerance.
