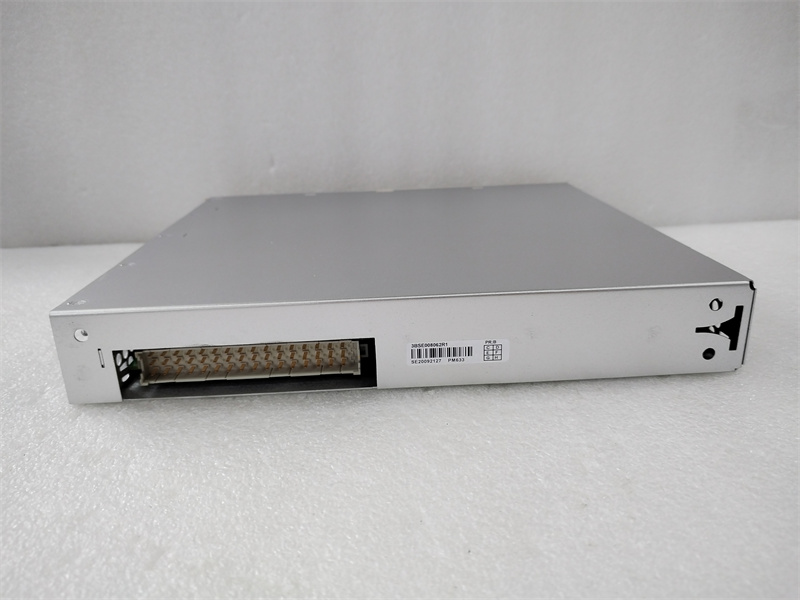

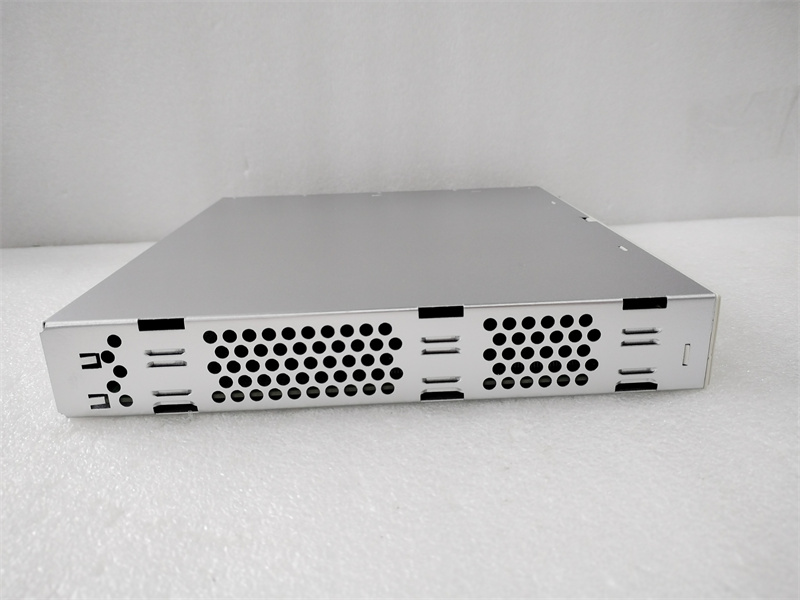

ABB的PM633-3BSE008062R1是一款高性能PLC處理器模塊,專為工業自動化控制設計。以下從技術規格、功能特點、應用場景三個維度展開分析:

一、技術規格
核心性能
處理器架構:支持實時操作系統(如ABB Advant OCS),適用于復雜控制算法(如PID調節、邏輯運算)。
內存配置:提供充足的程序與數據存儲空間,支持多任務處理及用戶自定義功能塊。
電氣特性
輸入電壓:24Vdc/120Vac寬電壓設計,適應工業現場復雜供電環境。
功耗:典型值1.8W,低功耗設計降低長期運行成本。
物理接口
通信協議:支持Modbus RTU/TCP、EtherNet/IP等,便于與上位機(如ABB 800xA系統)或第三方設備集成。
擴展能力:提供8通道隔離輸入,支持4-20mA電流或0-5V電壓信號,兼容多種傳感器(如壓力、溫度傳感器)。
環境適應性
防護等級:IP30防護,適應高溫(0-55℃)、高濕(5%-95% RH)工業場景。
認證標準:符合CE、UL、ATEX Zone 2等規范,適用于石油、化工等危險區域。

二、功能特點
控制算法與邏輯
實時控制:支持毫秒級響應,適用于運動控制、過程控制等場景。
自定義編程:通過ABB Control Builder工具,用戶可開發專屬控制邏輯(如設備啟停順序、安全聯鎖)。
信號處理與診斷
信號調理:內置數字濾波器,消除高頻噪聲干擾,提升信號穩定性。
狀態監測:通過LED指示燈(故障/F、警告/W、通道狀態)實時反饋模塊健康狀態。
安全與冗余
過載保護:支持電流限制功能,防止傳感器電源過載。
冗余設計:可與其他PM633模塊組成冗余系統,提升控制可靠性。
三、典型應用場景
電力系統
發電機組控制:監測轉速、振動參數,執行超速保護或負載分配邏輯。
變電站自動化:集成至SCADA系統,實現斷路器、變壓器的遠程監控。
油氣與化工
壓縮機控制:通過PID算法調節出口壓力,優化能效。
安全聯鎖:在緊急工況下觸發ESD(緊急停車系統),避免設備損壞。
水處理與環保
泵組控制:根據水位或流量信號自動調節泵速,實現節能運行。
閥門管理:控制調節閥開度,確保水質或工藝參數穩定。
智能制造
生產線集成:作為PLC主站,協調機器人、傳送帶等設備動作。
數據追溯:記錄生產參數(如溫度、壓力),支持質量追溯分析。
四、選型與集成建議
兼容性驗證
確保模塊固件版本與上位機軟件(如ABB System 800xA)兼容。
檢查通信協議是否匹配現有網絡架構(如Modbus TCP或EtherNet/IP)。
擴展配置
根據I/O需求,選配數字量/模擬量擴展模塊(如ABB DO880輸出模塊)。
集成HMI(人機界面)實現本地化操作與狀態可視化。
維護與升級
利用ABB Service Tool進行在線診斷,減少停機時間。
通過以太網遠程更新固件,提升系統安全性與功能擴展性。

ABB's PM633-3BSE008062R1 is a high-performance PLC processor module designed specifically for industrial automation control. The following analysis is conducted from three dimensions: technical specifications, functional features, and application scenarios:
1、 Technical specifications
core performance
Processor architecture: Supports real-time operating systems (such as ABB Advant OCS) and is suitable for complex control algorithms (such as PID regulation and logical operations).
Memory configuration: Provides sufficient program and data storage space, supports multitasking and user-defined function blocks.
Electrical characteristics
Input voltage: 24Vdc/120Vac wide voltage design, suitable for complex power supply environments in industrial sites.
Power consumption: Typical value of 1.8W, low-power design reduces long-term operating costs.
physical interface
Communication protocol: Supports Modbus RTU/TCP, EtherNet/IP, etc., making it easy to integrate with upper computers (such as ABB 800xA systems) or third-party devices.
Scalability: Provides 8-channel isolated input, supports 4-20mA current or 0-5V voltage signals, compatible with multiple sensors such as pressure and temperature sensors.
Environmental adaptability
Protection level: IP30 protection, suitable for high temperature (0-55 ℃) and high humidity (5% -95% RH) industrial scenarios.
Certification standards: Compliant with CE, UL, ATEX Zone 2 and other specifications, suitable for hazardous areas such as petroleum and chemical industries.
2、 Functional Features
Control Algorithm and Logic
Real time control: Supports millisecond level response, suitable for scenarios such as motion control and process control.
Custom programming: Through the ABB Control Builder tool, users can develop exclusive control logic (such as equipment start stop sequence, safety interlock).
Signal Processing and Diagnosis
Signal conditioning: Built in digital filter to eliminate high-frequency noise interference and improve signal stability.
Status monitoring: Real time feedback of module health status through LED indicator lights (fault/F, warning/W, channel status).
Security and redundancy
Overload protection: Supports current limiting function to prevent sensor power overload.
Redundant design: It can form a redundant system with other PM633 modules to enhance control reliability.
3、 Typical application scenarios
Power System
Generator set control: Monitor speed and vibration parameters, execute overspeed protection or load distribution logic.
Substation automation: integrated into SCADA system to achieve remote monitoring of circuit breakers and transformers.
Oil and Gas and Chemical Industry
Compressor control: Adjust the outlet pressure through PID algorithm to optimize energy efficiency.
Safety interlock: Trigger ESD (emergency stop system) in emergency conditions to prevent equipment damage.
Water Treatment and Environmental Protection
Pump group control: Automatically adjust pump speed based on water level or flow signal to achieve energy-saving operation.
Valve management: Control the opening of regulating valves to ensure stable water quality or process parameters.
Intelligent manufacturing
Production line integration: As a PLC master station, it coordinates the actions of robots, conveyors, and other equipment.
Data traceability: Record production parameters (such as temperature and pressure) to support quality traceability analysis.
4、 Selection and integration suggestions
Compatibility verification
Ensure that the module firmware version is compatible with the upper computer software (such as ABB System 800xA).
Check if the communication protocol matches the existing network architecture (such as Modbus TCP or EtherNet/IP).
Expand configuration
According to the I/O requirements, select digital/analog expansion modules (such as ABB DO880 output module).
Integrate HMI (Human Machine Interface) to achieve localized operation and status visualization.
Maintenance and Upgrade
Use ABB Service Tool for online diagnosis to reduce downtime.
Remote firmware updates via Ethernet to enhance system security and functionality scalability.
