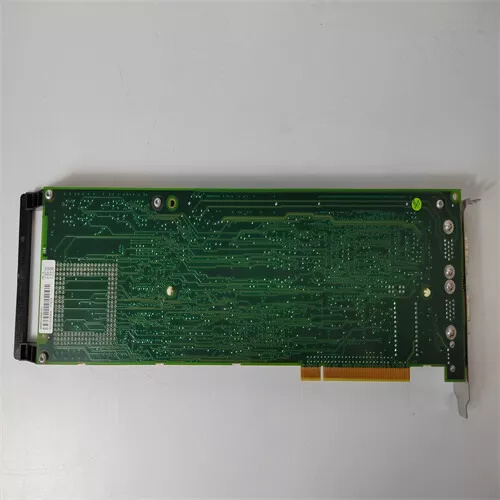

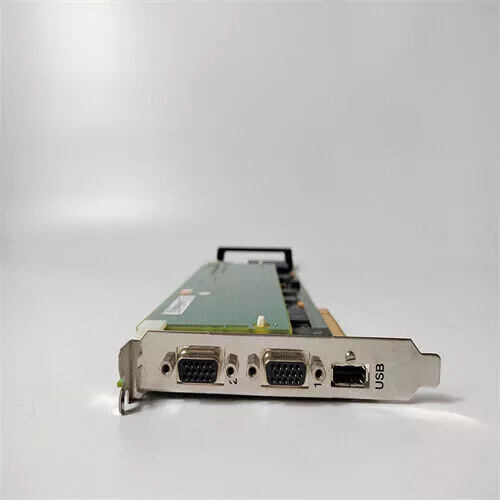

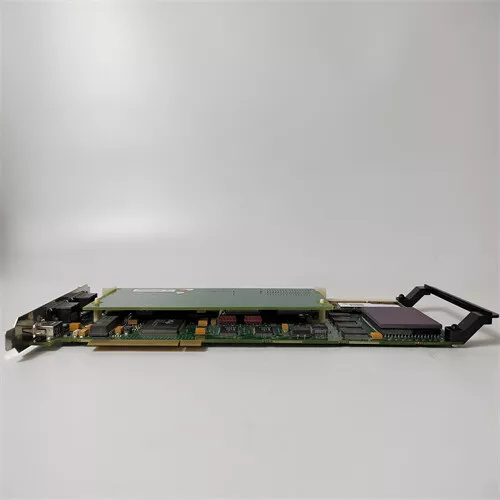

PU519 3BSE018681R1雙通道控制器主板
產品概述
PU519 3BSE018681R1是一款專為工業自動化設計的控制器主板,廣泛應用于鋼廠、電廠、水泥、化工、造紙、CNC數控機床等多個行業。該主板不僅具備強大的控制能力,還支持雙通道RTA實時加速器,確保系統的高效運行。
工作電壓與輸出頻率
工作電壓標準:VV
輸出頻率標準:kHz
系列與物料編碼
系列:PLCDCS系列
物料編碼:6662
技術特點與應用場景
PU519 3BSE018681R1控制器主板以其高可靠性和靈活的編程能力,在多個工業自動化領域中發揮著重要作用。其主要技術特點包括:
高可靠性
PLC大都采用單片微型計算機,集成度高,加上相應的保護電路及自診斷功能,大大提高了系統的可靠性。
編程容易
PLC的編程多采用繼電器控制梯形圖及命令語句,數量比微型機指令要少得多,便于快速掌握和應用。
組態靈活
PLC采用積木式結構,用戶可以通過簡單的組合來改變控制系統的功能和規模,適用于各種控制系統。
輸入/輸出功能模塊齊全
針對不同的現場信號(如直流或交流、開關量、數字量或模擬量、電壓或電流等),均有相應的模板可與工業現場的器件直接連接,并通過總線與CPU主板連接。
安裝方便
與計算機系統相比,PLC的安裝不需要專用機房,也不需要嚴格的屏蔽措施,使用時只需把檢測器件與執行機構和PLC的I/O接口端子正確連接,便可正常工作。
運行速度快
PLC的控制是由程序控制執行的,不論其可靠性還是運行速度,都是繼電器邏輯控制無法相比的。
擴展性與兼容性
PU519 3BSE018681R1控制器主板不僅具備強大的核心控制能力,還具有良好的擴展性和兼容性。具體表現在以下幾個方面:
通訊模塊
除了CPU上集成的通訊功能外,每一個CPU另外支持多4個通訊擴展接口模塊,這些接口可擴展為任意的標準總線協議模塊。CPU上集成的兩個Modbus通訊接口和可選集成的其他通訊接口,進一步增強了其通訊能力和靈活性。
兼容性與擴展性
CPU有多個不同等級的CPU均可用同一個編程軟件使用6種不同編程語言進行編程。保留的CS31的通訊接口更是考慮到了和AC31系列的兼容性,確保了系統的穩定性和擴展性。



PU519 3BSE018681R1 dual channel controller motherboard
product overview
PU519 3BSE018681R1 is a controller motherboard designed specifically for industrial automation, widely used in various industries such as steel mills, power plants, cement, chemical, papermaking, CNC machine tools, etc. This motherboard not only has powerful control capabilities, but also supports dual channel RTA real-time accelerators to ensure efficient system operation.
Working voltage and output frequency
Working voltage standard: VV
Output frequency standard: kHz
Series and Material Code
Series: PLCDCS series
Material Code: 6662
Technical characteristics and application scenarios
The PU519 3BSE018681R1 controller motherboard plays an important role in multiple industrial automation fields due to its high reliability and flexible programming capabilities. Its main technical features include:
high reliability
Most PLCs use single-chip microcomputers with high integration, along with corresponding protection circuits and self diagnostic functions, greatly improving the reliability of the system.
Programming is easy
PLC programming often uses relay control ladder diagrams and command statements, which are much fewer in number than microcomputer instructions, making it easier to quickly master and apply.
Flexible configuration
PLC adopts a modular structure, and users can change the function and scale of the control system through simple combinations, making it suitable for various control systems.
Complete input/output function modules
For different on-site signals (such as DC or AC, switch values, digital or analog values, voltage or current, etc.), there are corresponding templates that can be directly connected to industrial devices and connected to the CPU motherboard through a bus.
Easy installation
Compared with computer systems, the installation of PLC does not require a dedicated computer room or strict shielding measures. When in use, only the detection devices need to be correctly connected to the I/O interface terminals of the actuator and PLC to work normally.
Fast running speed
The control of PLC is executed by program control, and its reliability and operating speed cannot be compared to relay logic control.
Scalability and compatibility
The PU519 3BSE018681R1 controller motherboard not only has powerful core control capabilities, but also has good scalability and compatibility. Specifically manifested in the following aspects:
communication module
In addition to the communication functions integrated on the CPU, each CPU also supports four additional communication expansion interface modules, which can be extended to any standard bus protocol module. The two Modbus communication interfaces integrated on the CPU and optional other communication interfaces further enhance its communication capability and flexibility.
Compatibility and Scalability
There are multiple CPUs of different levels that can be programmed using the same programming software and six different programming languages. The reserved communication interface of CS31 takes into account compatibility with the AC31 series, ensuring the stability and scalability of the system.
