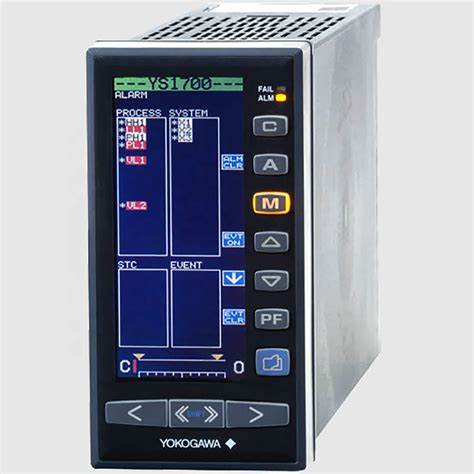

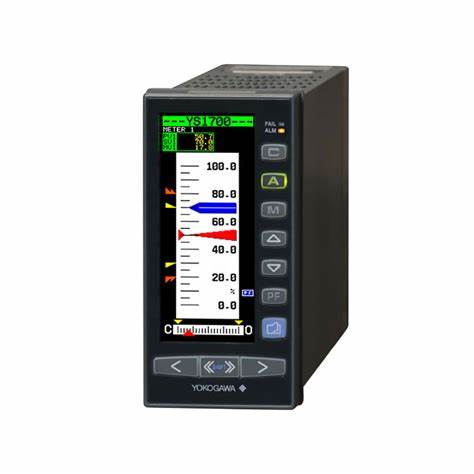

YOKOGAWA橫河YS1700-020/A31可編程指示控制器是一款高性能的控制器，它結合了橫河公司的專有技術，具有用戶友好性、可擴展性以及高可靠性等特點。
一、產品概述
YS1700-020/A31可編程指示控制器是橫河公司推出的一款先進控制器，它適用于多種應用場合。通過運行用戶程序，該控制器可以實現定制化的控制需求。同時，它還具有豐富的功能和強大的性能，可以滿足各種復雜的控制要求。
二、產品特點
小型輕便：該控制器比以往系列更加小型輕便，節約安裝空間，并符合國際安全標準（CE標志及FM防爆認證）。
全點顯示：采用半反射型彩色LCD，即使在早晨或傍晚的日光直射下，也可確保顯示屏具有良好的可視性。
模塊編程：除了與舊機型兼容的文本編程方式外，YS1700還提供了基于GUI的編程方法，即模塊編程。這使得用戶能夠更加方便地進行程序開發和調試。
超大編程容量：文本編程容量為1000行，模塊編程容量為400個功能模塊，滿足各種復雜的控制需求。
強大的控制與運算功能：采用了四字節浮點運算（IEEE754格式），可進行實量運算、壓力補償?shù)饶K。同時，它還提供了多種控制模式，如PID、PD、采樣保持PI和批處理PID等，使得用戶能夠根據實際需要進行靈活選擇。
功能選擇模式：無需編程即可從常用功能（單回路、級聯或選擇器控制）中選擇控制類型。通過參數設定可以選擇分配到數字和模擬輸入/輸出（DI、DO、AI和AO）的功能。
擴展I/O：帶擴展I/O的基本型具有多個模擬輸入點、模擬輸出點以及數字輸入/輸出點，滿足各種輸入輸出需求。
控制輸出備份功能：配備雙CPU（一個用于控制，一個用于顯示），即使其中一個CPU發生故障，也可進行顯示和手動操作。當包括兩個CPU的數字回路發生故障時，能夠手動調節控制器輸出。
非易失性存儲器：存儲備份時不使用電池或電容，無需定期維護。
AC/DC兩用電源：操作范圍廣，確保了電壓波動時的穩定性。可通過AC（100V）或DC（24V）電源供電。此外，DC電源可無極性受電。
三、應用領域
YS1700-020/A31可編程指示控制器廣泛應用于工業自動化、過程控制、環境監測等領域。它可以與各種傳感器、執行器等設備配合使用，實現對溫度、壓力、流量等參數的精確控制和監測。
The YOKOGAWA Yokogawa YS1700-020/A31 programmable indicator controller is a high-performance controller that combines Yokogawa's proprietary technology and features user friendliness, scalability, and high reliability.
1、 Product Overview
The YS1700-020/A31 programmable indicator controller is an advanced controller launched by Yokogawa Corporation, which is suitable for various application scenarios. By running user programs, the controller can achieve customized control requirements. At the same time, it also has rich functions and powerful performance, which can meet various complex control requirements.
2、 Product Features
Small and Lightweight: This controller is smaller and lighter than previous series, saving installation space and complying with international safety standards (CE mark and FM explosion-proof certification).
Full point display: Using a semi reflective color LCD, even in direct sunlight in the morning or evening, the display screen can ensure good visibility.
Module programming: In addition to the text programming method compatible with older models, YS1700 also provides a GUI based programming method, namely module programming. This enables users to develop and debug programs more conveniently.
Large programming capacity: The text programming capacity is 1000 lines, and the module programming capacity is 400 functional modules, meeting various complex control requirements.
Powerful control and operation functions: Adopting four byte floating-point operation (IEEE754 format), it can perform modules such as real quantity operation and pressure compensation. At the same time, it also provides multiple control modes such as PID, PD, sample and hold PI, and batch PID, allowing users to flexibly choose according to their actual needs.
Function selection mode: Control type can be selected from commonly used functions (single loop, cascade, or selector control) without programming. The functions assigned to digital and analog inputs/outputs (DI, DO, AI, and AO) can be selected through parameter settings.
Expansion I/O: The basic model with expansion I/O has multiple analog input points, analog output points, and digital input/output points to meet various input/output requirements.
Control output backup function: Equipped with dual CPUs (one for control and one for display), even if one CPU fails, display and manual operation can be performed. When the digital circuit including two CPUs fails, the controller output can be manually adjusted.
Non volatile memory: does not use batteries or capacitors when storing backups, and does not require regular maintenance.
AC/DC dual-purpose power supply: With a wide operating range, it ensures stability during voltage fluctuations. It can be powered by AC (100V) or DC (24V) power supply. In addition, DC power sources can receive electricity without polarity.
3、 Application Fields
YS1700-020/A31 programmable indicator controller is widely used in industrial automation, process control, environmental monitoring and other fields. It can be used in conjunction with various sensors, actuators, and other devices to achieve precise control and monitoring of parameters such as temperature, pressure, and flow rate.
