204B實戰應用-LMK04821代碼詳解（二）
一、?SPI協議
通過閱讀LMK04821數據手冊，我們可以從中知道，可以通過SPI協議對LMK04821進行寄存器的配置工作，進而實現我們設計所需要的功能。
SPI協議部分，咱們可以用3線，或者4線，在本次設計中，使用3線。關于SPI的時序部分，這兒就不再贅述，手冊里面都有詳細的描述。
圖1
二、?SPI寄存器配置模塊設計
圖2

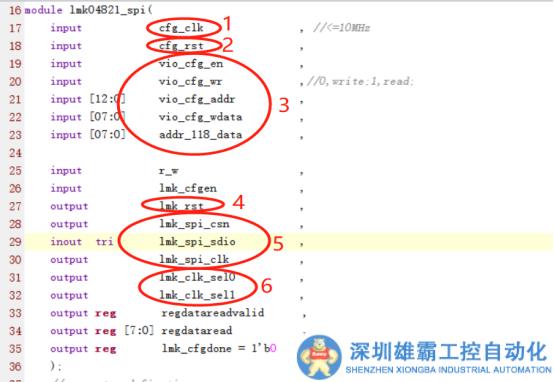

如圖2所示，就是配置LMK04821存器的單元，信號定義如下：
1、cfg_clk：系統時鐘；
2、cfg_rst：系統復位；
3、通過VIO控制的信號，這組信號存在的目的在于方便檢測自己配置寄存器的正確性。
vio_cfg_en：配置寄存器使能信號；
vio_cfg_wr：配置寄存器讀寫使能，0寫1讀；
vio_cfg_addr：配置的寄存器地址；
vio_cfg_wdata：寄存器中配置的值；
addr_118_data：預留信號，模塊中沒有用；
我們在配置LMK04821寄存器時，要驗證配置寄存器操作是否正確，就要有寫有讀，在對應的寄存器內寫入對應的數值，然后進行讀操作，觀察正確性。本次設計是在vivado環境下進行設計，通過添加VIO的IP核，來控制讀寫操作。同時，添加ILA配合VIO來進行讀寫數據操作的觀測。別的開發環境下思路一樣。
該組信號僅在回讀寄存器時使用，目的是為了驗證寄存器讀寫正確性。
圖3
4、lmk_rst：LMK04821復位信號，用于復位LMK04821，直接和LMK04821芯片相連；
5、3線制SPI信號：
lmk_spi_csn：片選；
lmk_spi_sdio：數據；
lmk_spi_clk：時鐘；
6、可編程管教：主要和LMK04821內部的PLL相關，本次設計中默認為0；
lmk_clk_sel0 ：sel0；
lmk_clk_sel1 ：sel1；
三、?SPI數據buffer定義

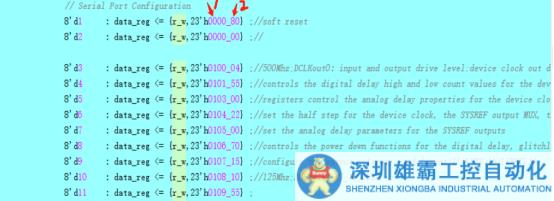

在本次設計中，SPI配置數據buffer，data_reg為24bit，r_w占1bit，箭頭1所指包含W1、W2以及地址位占13bit，具體見SPI時序圖；箭頭2所指數據位8bit。
圖4

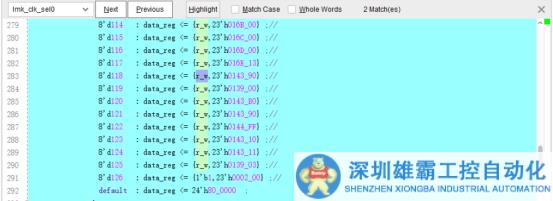

根據圖5我們可以知道，要配置LMK04821我們需要配置126個寄存器，這126個寄存器來源參見第一章實戰記錄。
其中，126個寄存器包含必須要配的寄存器、一些無關緊要的寄存器、以及功能實現所需要的寄存器等，有些寄存器需要配置多次。
圖5
四、?SPI時序?qū)崿F(xiàn)
設計中，我們需要按照順序配置126個寄存器，也就是說SPI要執行126次。因此，在代碼實現過程中，注意寄存器配置的順序，并且保證每個寄存器都準確無誤的配置完成，才能進行下一個寄存器的配置。如果在設計中，要求LMK004821實現不同的功能，當配置的寄存器個數不一致時，在v文件中更改圖6所示的參數即可。
圖6
如下：是LMK04821配置的模塊，讀者可以作為參考。
代碼區（參考代碼）：
//###########################################################################//// Copyright (C) 2017, JSZX, Co. Ltd. All Rights Reserved.//###########################################################################////-- Project Name ://-- File Name : lmk04821_spi//-- Description ://###########################################################################////---------------------------Modification History----------------------------////-- Date By Ver Comment//-- 12/04/2017 hhh 1.0 Create new//===================================================================//-- End Revision//===================================================================`timescale 1ns / 1ps
module lmk04821_spi( input cfg_clk , //<=10MHz input cfg_rst , input vio_cfg_en , input vio_cfg_wr ,//0,write;1,read; input [12:0] vio_cfg_addr , input [07:0] vio_cfg_wdata , input [07:0] addr_118_data ,
input r_w , input lmk_cfgen , output lmk_rst , output lmk_spi_csn , inout tri lmk_spi_sdio , output lmk_spi_clk , output lmk_clk_sel0 , output lmk_clk_sel1 , output reg regdatareadvalid , output reg [7:0] regdataread , output reg lmk_cfgdone = 1'b0 ); //parameter defination parameter NUM_REG = 8'd126 ;//需要配置的寄存器個數 parameter CFG_DONE_DLY = 32'hF4240 ;//100ms@10Mhz; //====================================================================// //----------------------internal signals------------------------------// //====================================================================// reg [00:0] lmk_cfgen_d0 ; reg [00:0] lmk_cfgen_d1 ; reg [00:0] lmk_cfgen_d2 ; reg [00:0] vio_cfg_en_d0 ; reg [00:0] vio_cfg_en_d1 ; reg [00:0] vio_cfg_en_d2 ; reg [07:0] cnt_clk ;// 每個寄存器需要的時鐘數計數器 reg [07:0] cnt_reg ;// 需要配置的寄存器計數器,最多255個! reg [23:0] data_reg ; reg [00:0] load_p ; reg [00:0] load_p_d0 ; reg [35:0] mid_data_o ; reg [35:0] mid_csn_o ; reg [00:0] spi_sdo ; reg [00:0] spi_cs_n ; wire[00:0] spi_sdi ; reg [05:0] sdo_cnt ;// //====================================================================//// //-----------------------------ila debug------------------------------//// //====================================================================//// //ila_spi// ila_spi ila_spi(// .clk ( cfg_clk ),//// .probe0 ( cnt_clk ),//8// .probe1 ( cnt_reg ),//8// .probe2 ( data_reg ),//24// .probe3 ( load_p ),//1// .probe4 ( sdo_cnt ),//6// .probe5 ( spi_cs_n ),//1// .probe6 ( spi_sdi ),//1// .probe7 ( spi_sdo ),//1// .probe8 ( lmk_cfgen_d1 ) //1// ); //====================================================================// //--------------------------main process------------------------------// //====================================================================// //lmk_clk_sel assign lmk_clk_sel0= 1'b0 ; assign lmk_clk_sel1= 1'b0 ; //spi signals; assign lmk_rst = cfg_rst ; assign lmk_spi_clk = (spi_cs_n) ? 1'b0 : ~cfg_clk ; assign lmk_spi_csn = spi_cs_n ; assign spi_sdi = lmk_spi_sdio; assign lmk_spi_sdio= (data_reg[23]==1'b1 && sdo_cnt>6'h18)? 1'bz : spi_sdo ; //lmk_cfgen_d0/lmk_cfgen_d1/lmk_cfgen_d2/load_p_d0 always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst==1'b1) begin lmk_cfgen_d0 <= 1'b0 ; lmk_cfgen_d1 <= 1'b0 ; lmk_cfgen_d2 <= 1'b0 ; load_p_d0 <= 1'b0 ; vio_cfg_en_d0 <= 1'b0 ; vio_cfg_en_d1 <= 1'b0 ; vio_cfg_en_d2 <= 1'b0 ; end else begin lmk_cfgen_d0 <= lmk_cfgen ; lmk_cfgen_d1 <= lmk_cfgen_d0 ; lmk_cfgen_d2 <= lmk_cfgen_d1 ; load_p_d0 <= load_p ; vio_cfg_en_d0 <= vio_cfg_en ; vio_cfg_en_d1 <= vio_cfg_en_d0 ; vio_cfg_en_d2 <= vio_cfg_en_d1 ; end end //load_p/cnt_reg/cnt_clk always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst==1'b1) begin cnt_reg <= 8'd0 ; cnt_clk <= 8'd36 ; load_p <= 1'b0 ; end else begin if(lmk_cfgen_d1==1'b1 && lmk_cfgen_d2==1'b0) begin cnt_clk <= 8'd0 ; cnt_reg <= 8'd0 ; load_p <= 1'b0 ; end else if((cnt_clk==8'd36)&&(cnt_reg begin cnt_clk <= 8'd0 ; cnt_reg <= cnt_reg + 8'h1 ; load_p <= 1'b1 ; end else begin load_p <= 1'b0 ; if(cnt_clk==8'd36)//cnt_reg==NUM_REG begin cnt_clk <= 8'd0 ; cnt_reg <= cnt_reg ; end else begin cnt_clk <= cnt_clk + 8'h1 ; cnt_reg <= cnt_reg ; end end end end //data_reg:VCO0,1930~2075;VCO1,2920~3080; always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst==1'b1) begin data_reg <= 24'h80_0000; end else begin case(cnt_reg)//VCO_2Ghz; // Serial Port Configuration 8'd1 : data_reg <= {r_w,23'h0000_80} ;//soft reset 8'd2 : data_reg <= {r_w,23'h0000_00} ;//
8'd3 : data_reg <= {r_w,23'h0100_04} ;//500Mhz;DCLKout0: input and output drive level;device clock out divider values 8'd4 : data_reg <= {r_w,23'h0101_55} ;//controls the digital delay high and low count values for the device clock outputs 8'd5 : data_reg <= {r_w,23'h0103_00} ;//registers control the analog delay properties for the device clocks 8'd6 : data_reg <= {r_w,23'h0104_22} ;//set the half step for the device clock, the SYSREF output MUX, the SYSREF clock digital delay,and half step 8'd7 : data_reg <= {r_w,23'h0105_00} ;//set the analog delay parameters for the SYSREF outputs 8'd8 : data_reg <= {r_w,23'h0106_70} ;//controls the power down functions for the digital delay, glitchless half step 8'd9 : data_reg <= {r_w,23'h0107_15} ;//configure the output polarity, and format:11:LVDS;15:LVPECL16; 8'd10 : data_reg <= {r_w,23'h0108_10} ;//125Mhz;DCLKout2;V7_IO_CLK2; 8'd11 : data_reg <= {r_w,23'h0109_55} ; 8'd12 : data_reg <= {r_w,23'h010B_00} ; 8'd13 : data_reg <= {r_w,23'h010C_22} ;//bit[5]:SDCLKoutY_MUX;0, Device clock output; 8'd14 : data_reg <= {r_w,23'h010D_00} ; 8'd15 : data_reg <= {r_w,23'h010E_70} ;//bit[3]:0,enable;bit[4]:powerdown; 8'd16 : data_reg <= {r_w,23'h010F_11} ;//11:LVDS;15:LVPECL16 8'd17 : data_reg <= {r_w,23'h0110_10} ;//125Mhz;DCLKout4; 8'd18 : data_reg <= {r_w,23'h0111_55} ; 8'd19 : data_reg <= {r_w,23'h0113_00} ; 8'd20 : data_reg <= {r_w,23'h0114_22} ;//bit[5]:SDCLKoutY_MUX;0, Device clock output; 8'd21 : data_reg <= {r_w,23'h0115_00} ; 8'd22 : data_reg <= {r_w,23'h0116_70} ;//bit[3]:0,enable;bit[4]:powerdown; 8'd23 : data_reg <= {r_w,23'h0117_11} ;//11:LVDS;15:LVPECL16 8'd24 : data_reg <= {r_w,23'h0118_04} ;//500Mhz;DCLKout6,FPGA;V7_IO_CLK0; 8'd25 : data_reg <= {r_w,23'h0119_55} ; 8'd26 : data_reg <= {r_w,23'h011B_00} ; 8'd27 : data_reg <= {r_w,23'h011C_22} ;//bit[5]:SDCLKoutY_MUX;0, Device clock output; 8'd28 : data_reg <= {r_w,23'h011D_00} ; 8'd29 : data_reg <= {r_w,23'h011E_70} ; 8'd30 : data_reg <= {r_w,23'h011F_11} ;//11:LVDS;15:LVPECL16 8'd31 : data_reg <= {r_w,23'h0120_10} ;//125Mhz;DCLKout8,FPGA MGT114 CLOCK; 8'd32 : data_reg <= {r_w,23'h0121_55} ; 8'd33 : data_reg <= {r_w,23'h0123_00} ; 8'd34 : data_reg <= {r_w,23'h0124_02} ;//bit[5]:SDCLKoutY_MUX;0, Device clock output; 8'd35 : data_reg <= {r_w,23'h0125_00} ; 8'd36 : data_reg <= {r_w,23'h0126_70} ; 8'd37 : data_reg <= {r_w,23'h0127_11} ;//11:LVDS;15:LVPECL16 8'd38 : data_reg <= {r_w,23'h0128_10} ;//125Mhz;DCLKout10,FPGA MGT116 CLOCK; 8'd39 : data_reg <= {r_w,23'h0129_55} ; 8'd40 : data_reg <= {r_w,23'h012B_00} ; 8'd41 : data_reg <= {r_w,23'h012C_02} ;//bit[5]:SDCLKoutY_MUX;0, Device clock output; 8'd42 : data_reg <= {r_w,23'h012D_00} ; 8'd43 : data_reg <= {r_w,23'h012E_70} ; 8'd44 : data_reg <= {r_w,23'h012F_11} ;//11:LVDS;15:LVPECL16 8'd45 : data_reg <= {r_w,23'h0130_04} ;//500Mhz;DCLKout12; 8'd46 : data_reg <= {r_w,23'h0131_55} ; 8'd47 : data_reg <= {r_w,23'h0133_00} ; 8'd48 : data_reg <= {r_w,23'h0134_22} ; 8'd49 : data_reg <= {r_w,23'h0135_00} ; 8'd50 : data_reg <= {r_w,23'h0136_70} ; 8'd51 : data_reg <= {r_w,23'h0137_15} ;//11:LVDS;15:LVPECL16
8'd52 : data_reg <= {r_w,23'h0138_00} ;//selects the clock distribution source, and OSCout parameters;VCO0; 8'd53 : data_reg <= {r_w,23'h0139_03} ;//sets the source for the SYSREF outputs 8'd54 : data_reg <= {r_w,23'h013A_00} ;//SYSREF_DIV[12:8] DIV register 1;sysref 2000M/160=12.5Mhz; 8'd55 : data_reg <= {r_w,23'h013B_A0} ;//SYSREF_DIV[7:0] DIV register 0; 8'd56 : data_reg <= {r_w,23'h013C_08} ;//set the delay of the SYSREF digital delay value[12:8] 8'd57 : data_reg <= {r_w,23'h013D_00} ;//set the delay of the SYSREF digital delay value[7:0] 8'd58 : data_reg <= {r_w,23'h013E_03} ;//sets the number of SYSREF pulses if SYSREF is not in continuous mode;
8'd59 : data_reg <= {r_w,23'h013F_04} ;//controls the feedback feature 8'd60 : data_reg <= {r_w,23'h0140_01} ;//13-OSCin PD; powerdown controls for OSCin and SYSREF functions;bit[0]:Powerdown SYSREF pulse generator; 8'd61 : data_reg <= {r_w,23'h0141_FF} ;//enables dynamic digital delay for enabled device clocks 8'd62 : data_reg <= {r_w,23'h0142_00} ;//sets the number of dynamic digital delay adjustments occur 8'd63 : data_reg <= {r_w,23'h0143_91} ;//sets general SYNC parameters such as polarization, and mode 8'd64 : data_reg <= {r_w,23'h0144_00} ;//prevent a clock output from being synchronized or interrupted by a SYNC event or when outputting SYSREF 8'd65 : data_reg <= {r_w,23'h0145_7F} ;//Always program this register to value 127 8'd66 : data_reg <= {r_w,23'h0171_AA} ;// 8'd67 : data_reg <= {r_w,23'h0172_02} ;// 8'd68 : data_reg <= {r_w,23'h0173_00} ;//bit[6]PLL2_PRE_PD; bit[5]PLL2_PD; 8'd70 : data_reg <= {r_w,23'h017C_15} ;//OPT_REG_1:21; 8'd71 : data_reg <= {r_w,23'h017D_33} ;//OPT_REG_2:51; 8'd72 : data_reg <= {r_w,23'h0182_00} ; 8'd73 : data_reg <= {r_w,23'h0183_00} ; 8'd74 : data_reg <= {r_w,23'h0184_00} ; 8'd75 : data_reg <= {r_w,23'h0185_00} ; 8'd76 : data_reg <= {r_w,23'h0188_00} ;
8'd77 : data_reg <= {r_w,23'h0146_38} ;//CLKin enable and type controls. 8'd78 : data_reg <= {r_w,23'h0147_02} ;//CLKin_SEL_MODE. pin select mode; 8'd79 : data_reg <= {r_w,23'h0148_02} ;//CLKin_SEL0 controls 8'd80 : data_reg <= {r_w,23'h0149_42} ;//CLKin_SEL1 controls and register readback SDIO pin type 8'd81 : data_reg <= {r_w,23'h014A_02} ;//contains control of the RESET pin 8'd82 : data_reg <= {r_w,23'h014B_16} ;//contains the holdover functions:start; 8'd83 : data_reg <= {r_w,23'h014C_00} ;// 8'd84 : data_reg <= {r_w,23'h014D_00} ;// 8'd85 : data_reg <= {r_w,23'h014E_C0} ;// 8'd86 : data_reg <= {r_w,23'h014F_7F} ;// 8'd87 : data_reg <= {r_w,23'h0150_03} ;// 8'd88 : data_reg <= {r_w,23'h0151_02} ;// 8'd89 : data_reg <= {r_w,23'h0152_00} ;//contains the holdover functions:end; 8'd90 : data_reg <= {r_w,23'h0153_00} ;//CLKin0_R[13:8] 8'd91 : data_reg <= {r_w,23'h0154_01} ;//CLKin0_R[7:0] 8'd92 : data_reg <= {r_w,23'h0155_00} ;//CLKin1_R[13:8] 8'd93 : data_reg <= {r_w,23'h0156_40} ;//CLKin1_R[7:0] 8'd94 : data_reg <= {r_w,23'h0157_00} ;//CLKin2_R[13:8] 8'd95 : data_reg <= {r_w,23'h0158_40} ;//CLKin2_R[7:0] 8'd96 : data_reg <= {r_w,23'h0159_00} ;//PLL1_N[13:8] 8'd97 : data_reg <= {r_w,23'h015A_01} ;//PLL1_N[7:0] 8'd98 : data_reg <= {r_w,23'h015B_D4} ;//PLL1 phase detector 8'd99 : data_reg <= {r_w,23'h015C_20} ;//PLL1_DLD_CNT[13:8] 8'd100 : data_reg <= {r_w,23'h015D_00} ;//PLL1_DLD_CNT[7:0] 8'd101 : data_reg <= {r_w,23'h015E_00} ;//contains the delay value for PLL1 N and R delays. 8'd102 : data_reg <= {r_w,23'h015F_0B} ;//configures the PLL1 LD pin 8'd103 : data_reg <= {r_w,23'h0160_00} ;//PLL2_R[11:8] 8'd104 : data_reg <= {r_w,23'h0161_01} ;//PLL2_R[7:0] 8'd105 : data_reg <= {r_w,23'h0162_44} ;//sets other PLL2 functions:[7:5]:PLL2_P;[4:2]:OSCin_FREQ;[1]:PLL2_XTAL_EN;[0]:PLL2_REF_2X_EN; 8'd106 : data_reg <= {r_w,23'h0163_00} ;//PLL2_N_CAL[17:16] 8'd107 : data_reg <= {r_w,23'h0164_00} ;//PLL2_N_CAL[15:8] 8'd108 : data_reg <= {r_w,23'h0165_0C} ;//PLL2_N_CAL[7:0] 8'd109 : data_reg <= {r_w,23'h0166_00} ;//PLL2_N[17:16],MSB; 8'd110 : data_reg <= {r_w,23'h0167_00} ;//PLL2_N[15:8],---; 8'd111 : data_reg <= {r_w,23'h0168_0A} ;//PLL2_N[7:0],LSB; 8'd112 : data_reg <= {r_w,23'h0169_59} ;//controls the PLL2 phase detector 8'd113 : data_reg <= {r_w,23'h016A_60} ;// 8'd114 : data_reg <= {r_w,23'h016B_00} ;// 8'd115 : data_reg <= {r_w,23'h016C_00} ;// 8'd116 : data_reg <= {r_w,23'h016D_00} ;// 8'd117 : data_reg <= {r_w,23'h016E_13} ;// 8'd118 : data_reg <= {r_w,23'h0143_90} ;// 8'd119 : data_reg <= {r_w,23'h0139_00} ;// 8'd120 : data_reg <= {r_w,23'h0143_B0} ;// 8'd121 : data_reg <= {r_w,23'h0143_90} ;// 8'd122 : data_reg <= {r_w,23'h0144_FF} ;// 8'd123 : data_reg <= {r_w,23'h0143_10} ;// 8'd124 : data_reg <= {r_w,23'h0143_11} ;// 8'd125 : data_reg <= {r_w,23'h0139_03} ;// 8'd126 : data_reg <= {1'b1,23'h0002_00} ;// default : data_reg <= 24'h80_0000 ; endcase end end //spi_sdo/spi_cs_n/mid_data_o/mid_csn_o/mid_data_o/vio_cfg_cnt always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst==1'b1) begin spi_sdo <= 1'b0; spi_cs_n <= 1'b1; mid_data_o <= 36'h0; mid_csn_o <= 36'hFFFFFFFFF; sdo_cnt <= 6'b0 ; end else begin if(load_p_d0==1'b1) begin spi_sdo <= 1'b0; mid_data_o <= {data_reg[23:0],12'hfff};//r_w:0 write;1 read; spi_cs_n <= 1'b1; mid_csn_o <= {24'h0,12'hFFF}; sdo_cnt <= 6'h1 ; end else if(vio_cfg_en_d1==1'b1 && vio_cfg_en_d2==1'b0) begin spi_sdo <= 1'b0; mid_data_o <= {vio_cfg_wr,2'b00,vio_cfg_addr,vio_cfg_wdata,12'hfff};//r_w:0 write;1 read; spi_cs_n <= 1'b1; mid_csn_o <= {24'h0,12'hFFF}; sdo_cnt <= 6'h1 ; end else begin spi_sdo <= mid_data_o[35]; mid_data_o <= {mid_data_o[34:0],1'b0}; spi_cs_n <= mid_csn_o[35]; mid_csn_o <= {mid_csn_o[34:0],1'b1}; if(sdo_cnt<6'h3f) begin sdo_cnt <= sdo_cnt + 6'h1 ; end else begin sdo_cnt <= sdo_cnt ; end end end end //regdatareadvalid/regdataread always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst==1'b1) begin regdatareadvalid <= 1'b0 ; regdataread <= 8'b0 ; end else begin if(spi_cs_n==1'b0) begin if(data_reg[23]==1'b1) begin if(sdo_cnt>6'd18 && sdo_cnt<6'd25)//2-17;18-25; begin regdatareadvalid <= 1'b0 ; regdataread <= {regdataread[6:0],spi_sdi}; end else if(sdo_cnt==6'd25) begin regdatareadvalid <= 1'b1 ; regdataread <= {regdataread[6:0],spi_sdi}; end else begin regdatareadvalid <= 1'b0 ; regdataread <= regdataread ; end end else begin regdatareadvalid <= 1'b0 ; regdataread <= regdataread ; end end else begin regdatareadvalid <= 1'b0 ; regdataread <= regdataread ; end end end //lmk_cfgdone always @(posedge cfg_clk or posedge cfg_rst) begin if(cfg_rst) begin lmk_cfgdone <= 1'b0 ; end else begin if(cnt_reg>=NUM_REG) begin lmk_cfgdone <= 1'b1 ; end else begin lmk_cfgdone <= 1'b0 ; end end end //====================================================================// //------------------------------- end ------------------------------// //====================================================================//
endmodule
