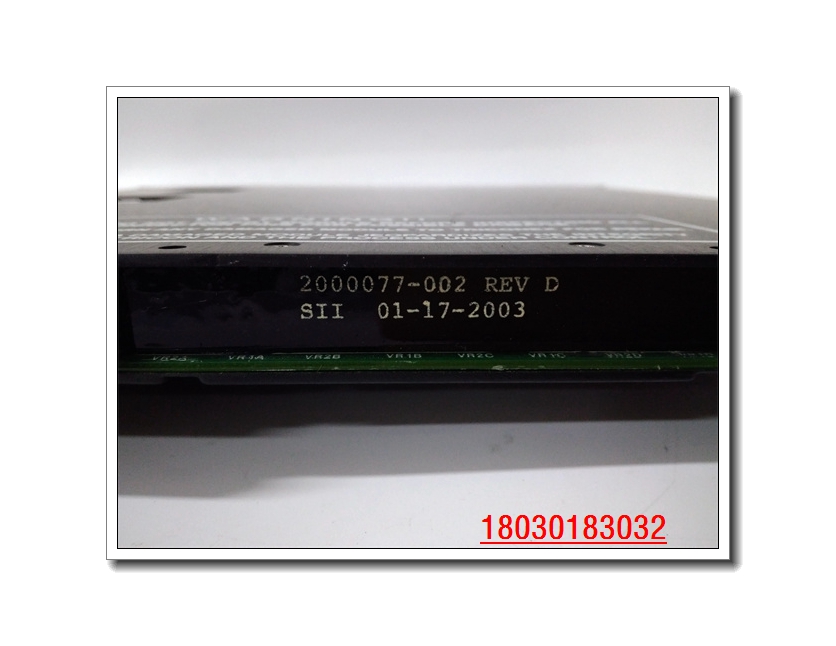

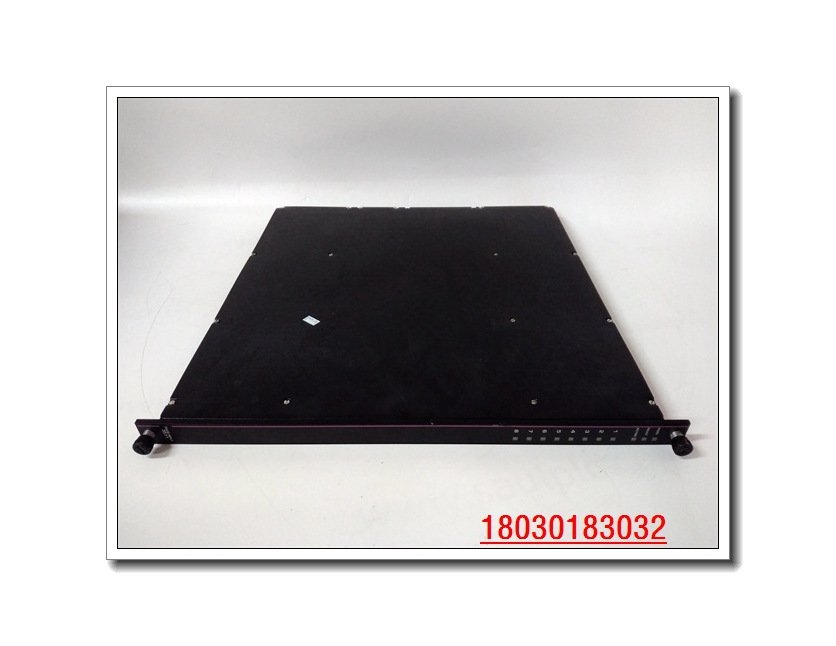

TRICONEX 3511是英維思Triconex系統中的通信模塊
TRICONEX 3511是工控DCS（分布式控制系統）模塊，用于工業自動化和過程控制中的數據處理和控制功能
公司主營進口PLC模塊，可編程控制器，伺服控制系統，和DCS備件等，例如：ABB、AB、GE， Bently，F(xiàn)OXBORO. MOTOROLA. XYCOM. HONEYWELL. TRICONEX. SCHNEIDER. REXROTH. YOKOGAWA .KUKA .OVATION .HIMA.等。英維思卡件 TRICONEX 3511 Invensys控制系統 通訊模塊 可提供產品報價、資料 細節請與我聯系輸出回路設計注意事項：3.1、輸出方式選擇
(1)繼電器輸出：優點是不同公共點之間可帶不同的交直流負載，且電壓也可不同，帶負載電流可達2A 點；但繼電器輸出方式不適用于高頻動作的負載，這是由繼電器的壽命決定的 (2)晶閘管輸出：帶負載能力為0.2A/ 點，只能帶交流負載，可適應高頻動作，響應時間為 1ms (3)晶體管輸出：優點是適應于高頻動作，響應時間短，一般為0.2ms左右，但它只能帶DC5-30V的負載，輸出負載電流為0.5A/點，但每4點不得大于0.8A。當你的系統輸出頻率為每分鐘 6 次以下時，應繼電器輸出，因其電路設計簡單，抗干擾和帶負載能力強 當頻率為 10 次/min 以下時，既可采用繼電器輸出方式，也可采用PLC輸出驅動達林頓三極管（5-10A），再驅動負載。
英維思卡件TRICONEX 3511當PLC輸出帶感性負載，負載斷電時會對PLC的輸出造成浪涌電流的沖擊，為此，對直流感性負載應在其旁邊并接續流二極管，對交流感性負載應并接浪涌吸收電路，可有效保護 PLC 當兩個物理量的輸出在 PLC內部已進行軟件互鎖后，在 PLC的外部也應進行互鎖，以加強系統的可靠性
The company specializes in importing PLC modules, programmable controllers, servo control systems, and DCS spare parts,
For example: ABB, AB, GE, Bently, FOXBORO MOTOROLA XYCOM HONEYWELL TRICONEX SCHNEIDER REXROTH YOKOGAWA, KUKA, OVATION, HIMA, etc.
The TRICONEX 3511 Invensys control system communication module for Invensys card parts can provide product quotes and information details. Please contact me
Precautions for output circuit design:
3.1. Selection of Output Method
(1) Relay output: The advantage is that different common points can carry different AC and DC loads, and the voltage can also be different, with a load current of up to 2A points; However, the relay output method is not suitable for high-frequency action loads, which is determined by the lifespan of the relay. (2) Thyristor output: with a load capacity of 0.2A/point, it can only carry AC loads and can adapt to high-frequency action, with a response time of 1ms. (3) Transistor output: The advantage is that it is suitable for high-frequency action, with a short response time, usually around 0.2ms. However, it can only carry DC5-30V loads, and the output load current is 0.5A/point, But every 4 points shall not exceed 0.8A. When the output frequency of your system is less than 6 times per minute, relay output should be used. Due to its simple circuit design, strong anti-interference and load carrying capacity, when the frequency is less than 10 times per minute, either relay output mode or PLC output can be used to drive the Darlington transistor (5-10A) and then drive the load.
When the PLC output carries an inductive load and the load is cut off, it will cause a surge current impact on the PLC output. Therefore, the DC inductive load should be placed next to it and connected to a continuous current diode. The AC inductive load should be connected to a surge absorption circuit in parallel, which can effectively protect the PLC. When two physical quantities of output have been software interlocked inside the PLC, they should also be interlocked outside the PLC to enhance system reliability
TRICONEX 3511 脈沖輸入模塊 工控備件模塊庫存
3700A 模擬量輸入模塊
3704E 模擬量輸入模塊
3604E 數字量輸出模塊
3614E 數字量輸出模塊
3615E 數字量輸出模塊
3624 數字量輸出模塊
3603B 數字量輸出模塊用的端子面板9251-210
3806E 模擬量輸出模塊用的端子面板9863-710
3501E 數字量輸入模塊 115VAC/VDC32pts 通用端子9561-
810 不通用端子9561-110 基本端子9551-110 9101-010
9141-010
3502E 數字量輸入模塊 48VAC/VDC32pts 通用端子9562-
810 基本端子9552-610 9101-010 9142-010
3503E 數字量輸入模塊 24VAC/VDC32pts 通用端子9563-
810 9563-910 基本端子9553-610 9572-610 BP9228-010
9143-010
3504E 數字量輸入模塊 24/48VDC 通用端子9566-81024V
9565-81048V 基本端子 9750-31024V 9750-41048V
BP229-010
3505E 數字量輸入模塊 24VDC 通用端子9563-810 9563-
910 基本端子9553-610 9572-610
3510 PI 20-20000 HZ 8pts 基本端子9753-110
3511 PI 20-20000 HZ 8pts 基本端子9753-110 9793-110
9794-110
3515 脈沖累加模塊24VDC32pts 基本端子9753-110 9572-
610
