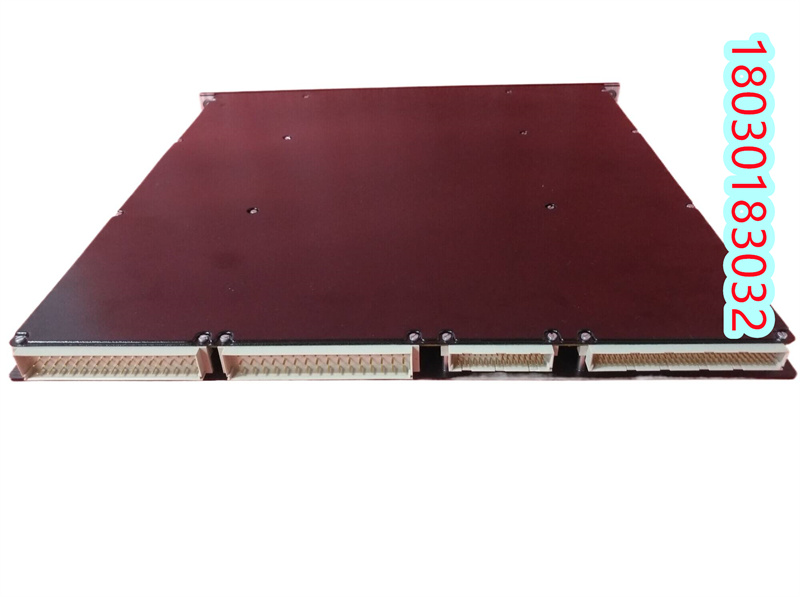

TRICON卡件3721 TMR模擬輸入模塊具備三重冗余結構，這一特性顯著提升了其在工業自動化和控制系統中的可靠性和安全性。
一、產品概述
TRICON卡件3721是一款4通道模擬輸入模塊，采用三重模塊化冗余（TMR）結構。該模塊通過三個獨立的通道異步測量輸入信號，并將結果傳遞給主處理器模塊，從而提供高可用性和安全性。
二、三重冗余結構
冗余設計：
TRICON卡件3721的每個I/O模件內部都包含三個獨立的分電路。
每個MP（主處理器）模件控制系統都獨立成為一路，并與其他兩個MP并行工作。
這種三重冗余設計使得在任何一個通道或組件發生故障時，系統都能繼續運行，不會中斷控制過程。
工作原理：
在模擬輸入模塊上，三個通道中的每一個都異步測量輸入信號，并將結果放入一個值表中。
三個輸入表中的每一個都通過相應的I/O總線傳遞給相關的主處理器模塊。
每個主處理器模塊中的輸入表通過Tricon傳輸?shù)剿泥従?，中間值由每個主處理器選擇，并相應地修正輸入表。
在TMR模式下，控制程序使用中值數據；在雙工模式下，則使用平均值。
三、技術規格與功能
輸入范圍：0至5VDC或-5至+5VDC，提供寬輸入范圍以適應不同的應用場景。
分辨率：16位，高精度的測量能力確保了信號的準確性和穩定性。
本質安全（IS）認證：適用于危險區域的本質安全認證，確保了系統在危險環境下的安全運行。
故障安全操作：在發生故障時，系統能夠自動切換到安全狀態，確保人員和設備的安全。
診斷功能：提供診斷功能，幫助識別和解決問題，降低了維護成本和停機時間。
四、應用領域
TRICON卡件3721 TMR模擬輸入模塊廣泛應用于石油、天然氣、化工、電力等工業領域，特別是在需要高可靠性和安全性的自動化和控制系統中。其三重冗余結構和多種功能特點使得它成為這些領域中的理想選擇。
五、維護與檢查
為確保TRICON卡件3721 TMR模擬輸入模塊的穩定運行和延長使用壽命，用戶應定期進行維護和檢查。這包括清潔模塊表面、檢查連接器接觸狀態、驗證信號線連接是否牢固以及根據系統要求正確配置模塊的軟件參數等。同時，用戶還應遵守所有相關安全規程，確保人身安全和設備安全。
The TRICON card 3721 TMR analog input module has a triple redundant structure, which significantly improves its reliability and safety in industrial automation and control systems.
1、 Product Overview
The TRICON card 3721 is a 4-channel analog input module that adopts a triple modular redundancy (TMR) structure. This module measures input signals asynchronously through three independent channels and passes the results to the main processor module, providing high availability and security.
2、 Triple redundant structure
Redundant design:
Each I/O module of TRICON card 3721 contains three independent sub circuits inside.
Each MP (main processor) module control system is independent and works in parallel with the other two MPs.
This triple redundancy design ensures that in the event of a failure in any channel or component, the system can continue to operate without interrupting the control process.
working principle:
On the analog input module, each of the three channels asynchronously measures the input signal and puts the results into a value table.
Each of the three input tables is transmitted to the relevant main processor module through the corresponding I/O bus.
The input table in each main processor module is transmitted to its neighbors through Tricon, with intermediate values selected by each main processor and the input table adjusted accordingly.
In TMR mode, the control program uses median data; In duplex mode, the average value is used.
3、 Technical specifications and functions
Input range: 0 to 5VDC or -5 to+5VDC, providing a wide input range to adapt to different application scenarios.
Resolution: 16 bits, high-precision measurement capability ensures the accuracy and stability of the signal.
Intrinsic Safety (IS) Certification: An intrinsic safety certification applicable to hazardous areas, ensuring the safe operation of the system in hazardous environments.
Fault safe operation: In the event of a malfunction, the system can automatically switch to a safe state to ensure the safety of personnel and equipment.
Diagnostic function: Provides diagnostic functions to help identify and solve problems, reducing maintenance costs and downtime.
4、 Application Fields
The TRICON card 3721 TMR analog input module is widely used in industrial fields such as petroleum, natural gas, chemical, and power, especially in automation and control systems that require high reliability and safety. Its triple redundant structure and multiple functional features make it an ideal choice in these fields.
5、 Maintenance and Inspection
To ensure the stable operation and extended service life of the TRICON card 3721 TMR analog input module, users should regularly maintain and inspect it. This includes cleaning the surface of the module, checking the contact status of the connectors, verifying the firmness of the signal line connections, and correctly configuring the software parameters of the module according to system requirements. At the same time, users should also comply with all relevant safety regulations to ensure personal and equipment safety.
