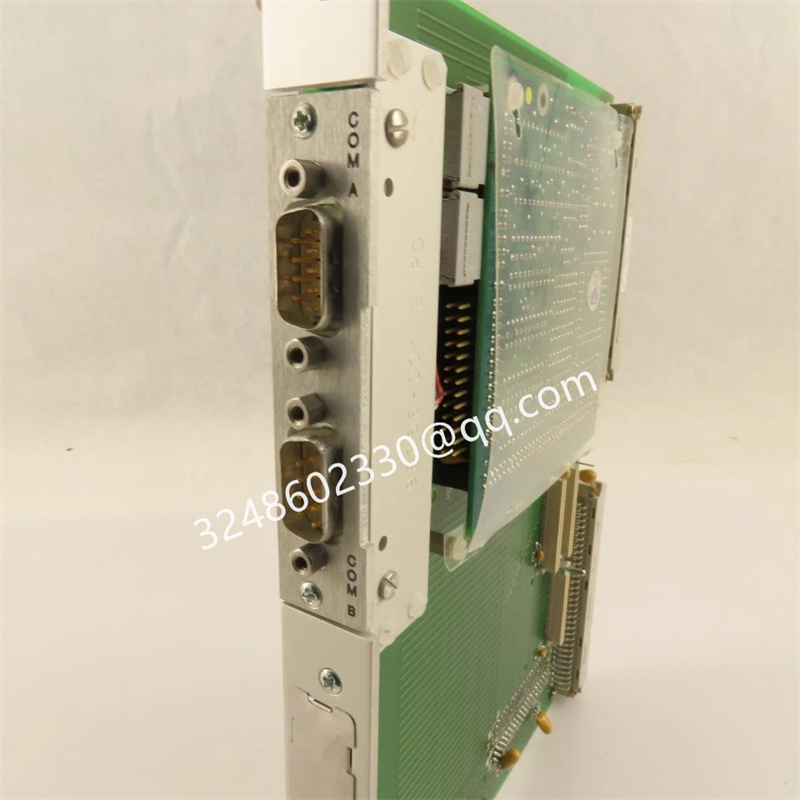

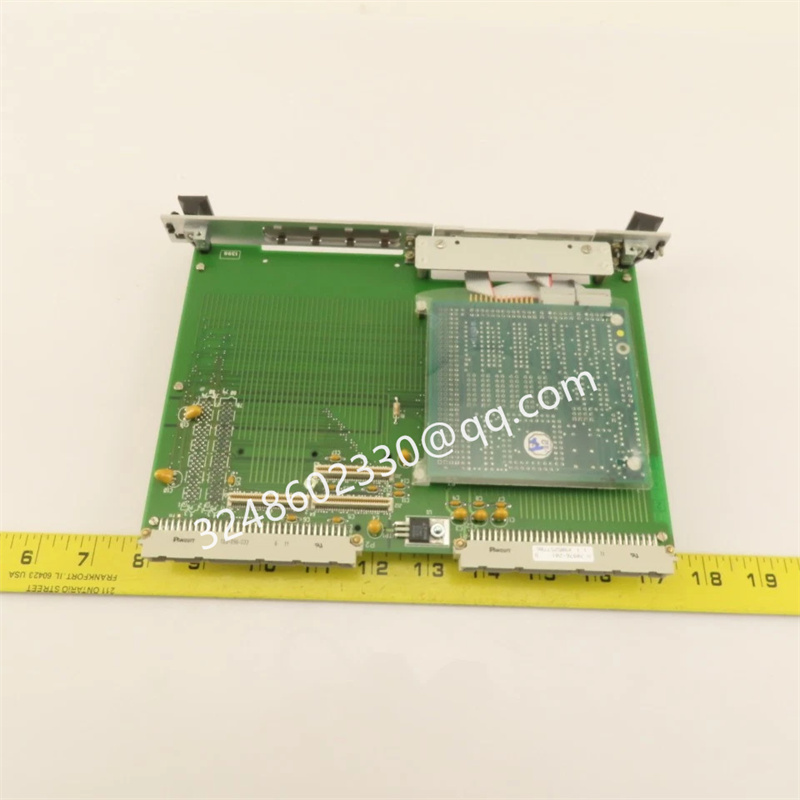

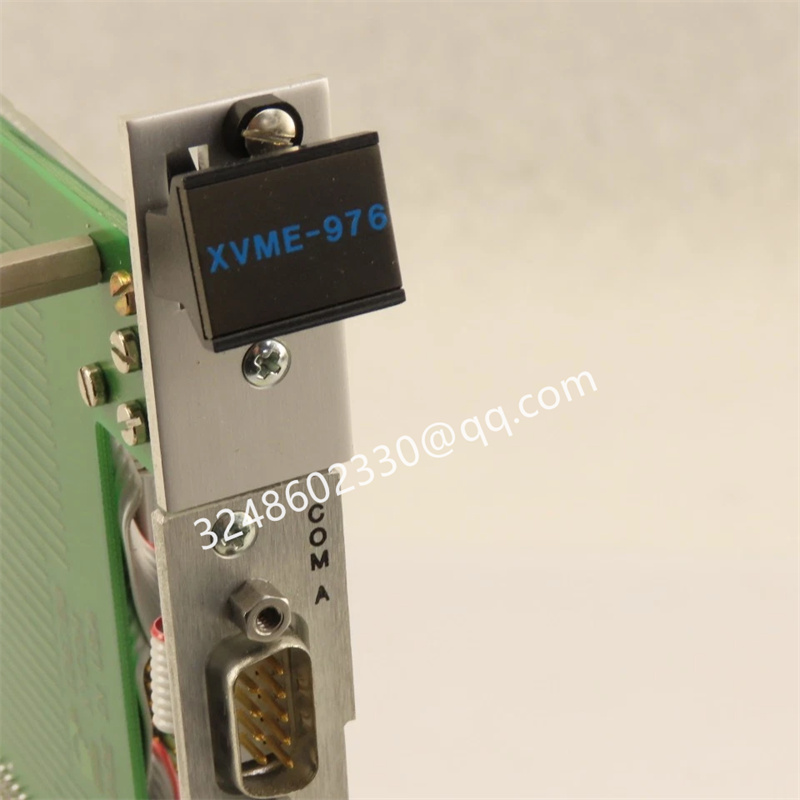

Xycom XVME-976 是一款 VME 總線轉接模塊，主要用于擴展 VMEbus 系統的功能，支持連接 PC/104 和 PMC（PCI Mezzanine Card）擴展模塊，適用于工業自動化、測試測量等領域。

核心功能

1. 擴展模塊支持
   • PC/104 擴展：提供 1 或 2 個 PC/104 擴展站點，兼容標準 PC/104 模塊（如以太網、SCSI、串行、并行等），支持 A 型（帶前面板）和 B 型（通用型）模塊。
   • PMC 擴展：提供 1 或 2 個 PMC 站點，支持 IEEE P1386 標準，允許擴展 PCI 功能（如高速數據采集、通信接口等）。
   • 可選模塊：支持 ATM、FDDI、SCSI 等擴展（需第三方模塊）。
2. 電氣特性
   • 電源管理：板載直流穩壓器，為 PMC 站點提供 3.3V 電壓。
   • 信號緩沖：PC/104 信號（除數據線外）均經過緩沖，確保信號完整性。
   • 跳線配置：用戶可通過跳線自定義信號路由，適應不同擴展需求。
3. 機械設計
   • 6U VME 插槽：符合標準 VMEbus 卡籠尺寸，支持熱插拔。

   • 插針連接器：采用高可靠性插針和插座方案，適應工業環境振動和沖擊。

   •

技術參數

• 環境適應性：
  • 工作溫度：0°C 至 50°C（32°F 至 122°F）
  • 存儲溫度：-40°C 至 60°C（-40°F 至 140°F）
  • 濕度：20% 至 80% RH（非凝結）
  • 振動：5Hz 至 2000Hz，0.15mm 峰峰值位移
  • 沖擊：30g 峰值加速度（11ms 持續時間）
• 兼容性：
  • 支持 Xycom VME 處理器模塊（如 XVME-653、XVME-654、XVME-655）。
  • PMC 站點兼容 2.0 規范（IEEE P1386）。

  • PC/104 站點符合 ISA 標準。

  •

典型應用場景

1. 工業自動化
   • 作為 VMEbus 系統的 I/O 擴展樞紐，連接 PC/104 模塊實現以太網通信、數據存儲或傳感器接口。
   • 通過 PMC 模塊擴展高速 ADC/DAC，用于實時控制或信號處理。
2. 測試與測量
   • 在數據采集系統中，集成 PC/104 模塊實現多通道同步采樣，或通過 PMC 模塊擴展高速緩存。
   • 支持 SCSI 接口連接外部存儲設備，滿足大數據記錄需求。

3. 軍事與航空航天

   • 模塊化設計便于系統升級，適應高可靠性要求的嵌入式應用。

   • 支持冗余配置，提高系統容錯能力。




Xycom XVME-976 is a VME bus adapter module mainly used to expand the functionality of VMEbus systems. It supports connecting PC/104 and PMC (PCI Mezzanine Card) expansion modules and is suitable for industrial automation, testing and measurement, and other fields.

core functionality

Extension module support

PC/104 Expansion: Provides 1 or 2 PC/104 expansion sites, compatible with standard PC/104 modules such as Ethernet, SCSI, serial, parallel, etc., supporting A-type (with front panel) and B-type (universal) modules.

PMC Expansion: Provides 1 or 2 PMC sites, supports IEEE P1386 standard, and allows for the expansion of PCI functionality (such as high-speed data acquisition, communication interfaces, etc.).

Optional modules: Supports ATM, FDDI, SCSI and other extensions (requires third-party modules).

Electrical Characteristics

Power management: Onboard DC regulator provides 3.3V voltage to PMC sites.

Signal buffering: All PC/104 signals (except for data lines) are buffered to ensure signal integrity.

Jumper configuration: Users can customize signal routing through jumpers to meet different expansion needs.

Mechanical Design

6U VME slot: conforms to the standard VMEbus card cage size and supports hot swapping.

Pin connector: Adopting high reliability pin and socket solutions, suitable for industrial environment vibration and impact.

Technical Specifications

Environmental adaptability:

Working temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)

Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F)

Humidity: 20% to 80% RH (non condensing)

Vibration: 5Hz to 2000Hz, 0.15mm peak to peak displacement

Impact: 30g peak acceleration (11ms duration)

Compatibility:

Support Xycom VME processor modules (such as XVME-653, XVME-654, XVME-655).

PMC site is compatible with the 2.0 specification (IEEE P1386).

The PC/104 site complies with ISA standards.

Typical application scenarios

Industrial Automation

As the I/O expansion hub of the VMEbus system, it connects PC/104 modules to achieve Ethernet communication, data storage, or sensor interfaces.

Expand high-speed ADC/DAC through PMC module for real-time control or signal processing.

test and measurement

In the data acquisition system, the PC/104 module is integrated to achieve multi-channel synchronous sampling, or the PMC module is used to expand the high-speed cache.

Support SCSI interface connection to external storage devices to meet the needs of big data recording.

Military and Aerospace

Modular design facilitates system upgrades and adapts to embedded applications with high reliability requirements.

Support redundant configuration to improve system fault tolerance.
