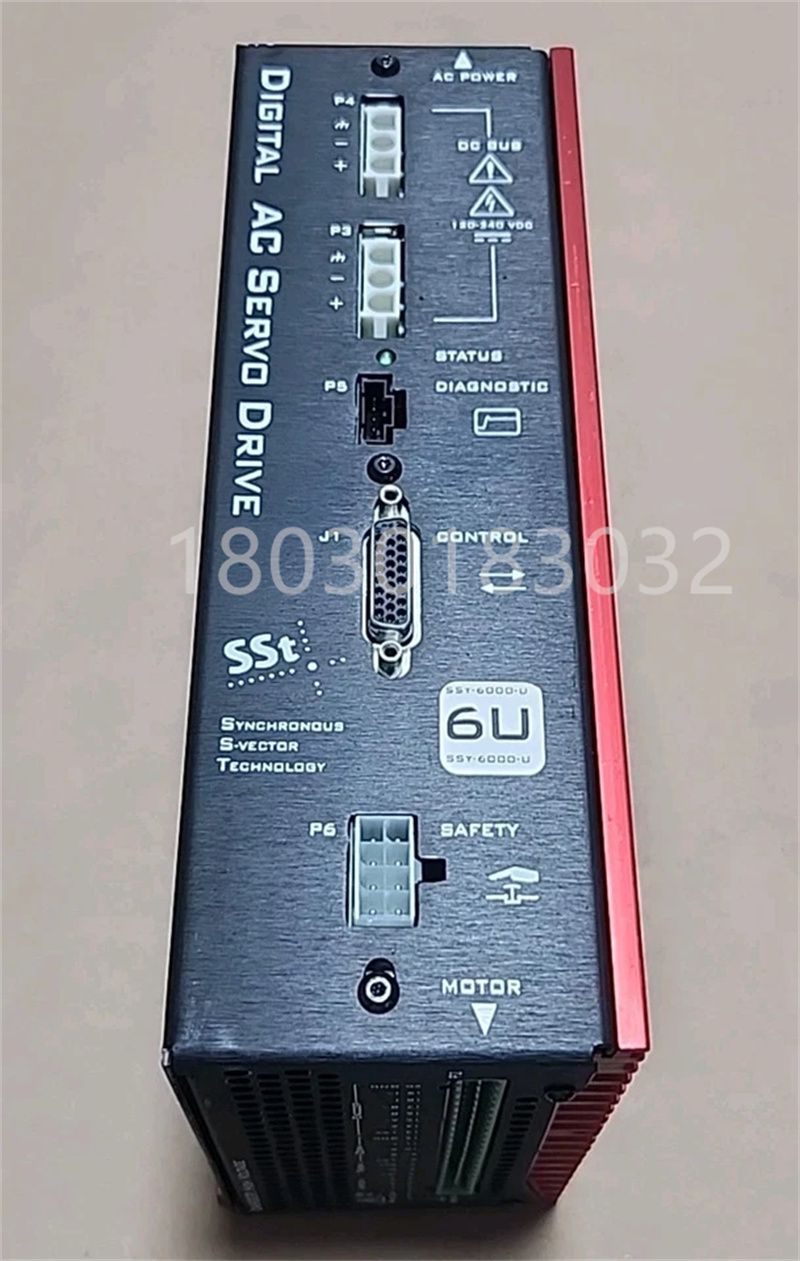

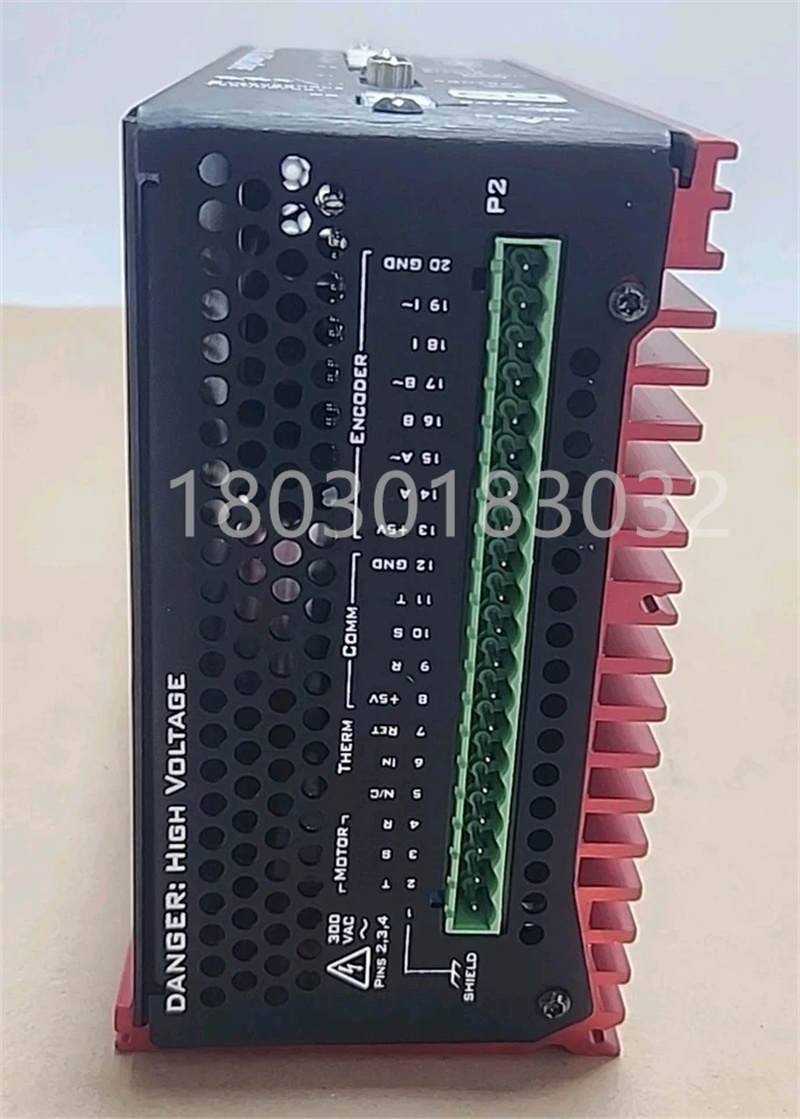

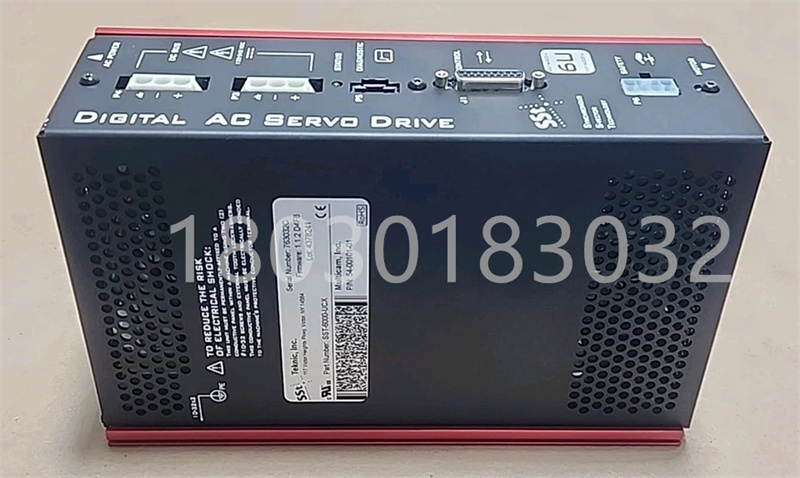

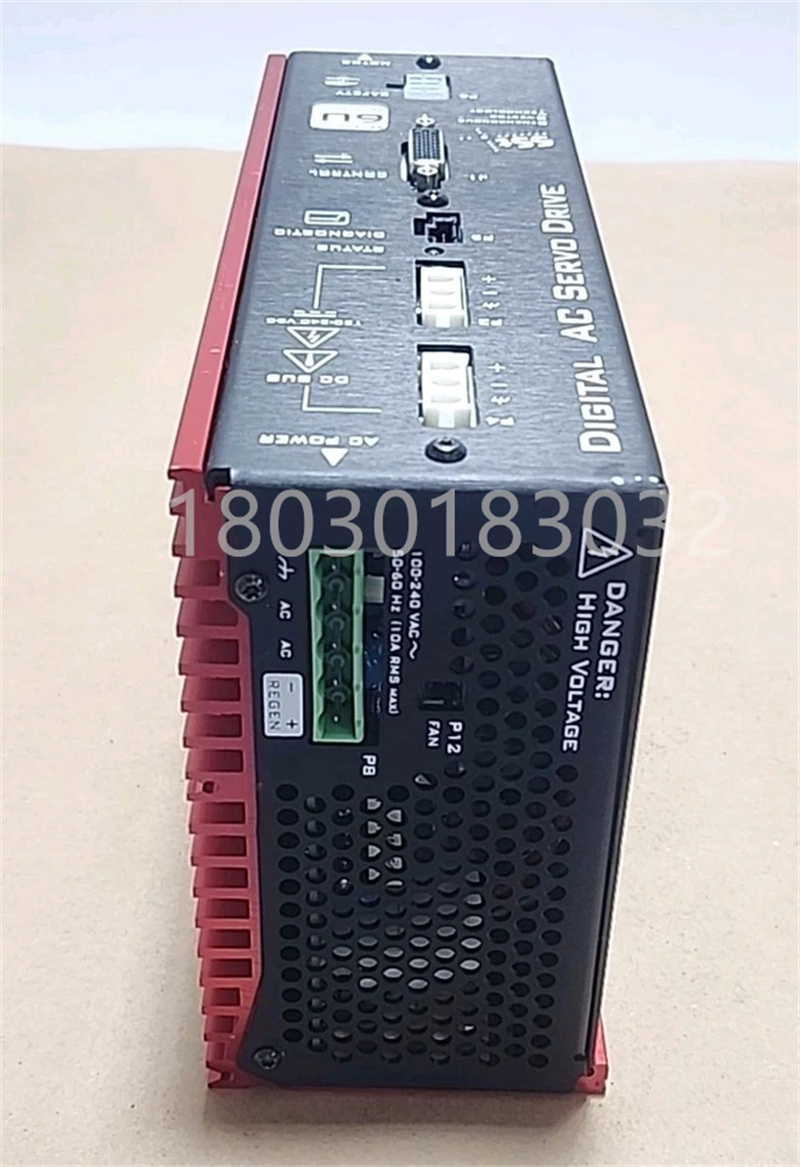

Teknic SST-6000-UCX 數字交流伺服驅動器
產品概述
Teknic SST-6000-UCX 是一款高性能的數字交流伺服驅動器，專為工業自動化和運動控制應用設計。它通過專用的數字信號處理器（DSP）實現伺服補償與轉矩控制的緊密集成，能夠提供卓越的性能。
技術規格
電壓范圍：12-30V DC。
最大連續電流：6A。
控制接口：支持多種控制接口，包括 RS-232。
通信協議：支持多種通信協議，如 EtherNet/IP。
工作溫度范圍：-40°C 至 +85°C。
尺寸：緊湊設計，適合安裝在控制柜中。
功能特點
高精度控制：多導數、狀態前饋增益顯著提高了跟蹤性能。
零穩定時間：對于要求苛刻的點對點應用，SST-6000 提供了零穩定時間。
超平滑運動：Teknic 的專利回歸自動樣條技術（Regressive AutoSpline?, RAS）產生超平滑的軌跡。
自適應調整：基于神經模糊邏輯的自適應控制算法（IMT），幾乎消除了慣性匹配的擔憂。
抗振蕩：小信號、滑模、自動增益調制來消除即使在極高增益下的振蕩。
易于使用：級聯PIV控制結構提供了尖端性能且易于使用。
通用電機接口：能夠控制幾乎任何三相無刷或有刷電機。
低總伺服相位延遲：從讀取位置反饋到電機更新轉矩的總時間完全確定為行業最快（35微秒）。
極快的轉矩響應時間：正弦波換向與矢量前饋和DQ解耦提供水臂轉矩響應時間。
抗共振轉矩環路：在專家模式下，數字轉矩環路可訪問，提供卓越的共振控制。
智能飽和度：動態算法在電壓飽和事件中保持?jǐn)?shù)字掃描控制。
應用領域
制造業：用于生產線上的設備連接和通信，實現自動化控制和數據采集。
能源管理：在電力監控系統中，用于連接和通信各種電力設備，實現能源的優化管理和調度。
交通監控：在智能交通系統中，用于連接和通信交通信號設備、監控?cái)z像頭等，實現交通流量的實時監控和調度。
注意事項
使用限制：該模塊不單獨使用或作為某一部件用于轉速控制或超速保護系統。
報警功能：模擬量比例輸出僅用于數據收集、圖表記錄或顯示，轉速的警告設置點僅用于通知目的。
維護與更換：支持帶電插拔，便于維護和更換。
Teknic SST-6000-UCX Digital AC Servo Drive
product overview
Teknic SST-6000-UCX is a high-performance digital AC servo drive designed specifically for industrial automation and motion control applications. It tightly integrates servo compensation and torque control through a dedicated digital signal processor (DSP), providing excellent performance.
technical specifications
Voltage range: 12-30V DC.
Maximum continuous current: 6A.
Control interface: Supports multiple control interfaces, including RS-232.
Communication Protocol: Supports multiple communication protocols, such as EtherNet/IP.
Working temperature range: -40 ° C to+85 ° C.
Size: Compact design, suitable for installation in control cabinets.
Functional Features
High precision control: Multi derivative and state feedforward gain significantly improve tracking performance.
Zero settling time: For demanding point-to-point applications, SST-6000 provides zero settling time.
Ultra smooth motion: Teknic's patented Regressive AutoSpline technology ?, RAS generates ultra smooth trajectories.
Adaptive adjustment: The adaptive control algorithm (IMT) based on neural fuzzy logic almost eliminates the concern of inertia matching.
Anti oscillation: small signal, sliding mode, automatic gain modulation to eliminate oscillations even at extremely high gains.
Easy to use: The cascaded PIV control structure provides cutting-edge performance and is easy to use.
Universal motor interface: capable of controlling almost any three-phase brushless or brushed motor.
Low total servo phase delay: The total time from reading position feedback to updating motor torque is completely determined to be the fastest in the industry (35 microseconds).
Extremely fast torque response time: Sine wave commutation, vector feedforward, and DQ decoupling provide water arm torque response time.
Anti resonance torque loop: In expert mode, the digital torque loop is accessible, providing excellent resonance control.
Intelligent saturation: Dynamic algorithms maintain digital scan control during voltage saturation events.
application area
Manufacturing: Used for connecting and communicating equipment on production lines to achieve automated control and data collection.
Energy management: In power monitoring systems, it is used to connect and communicate various power equipment to achieve optimized management and scheduling of energy.
Traffic monitoring: In intelligent transportation systems, it is used to connect and communicate traffic signal devices, monitoring cameras, etc., to achieve real-time monitoring and scheduling of traffic flow.
precautions
Usage restrictions: This module is not intended to be used alone or as a component for speed control or overspeed protection systems.
Alarm function: Analog proportional output is only used for data collection, chart recording, or display, and the warning set point for speed is only for notification purposes.
Maintenance and replacement: Supports live plugging and unplugging for easy maintenance and replacement.
