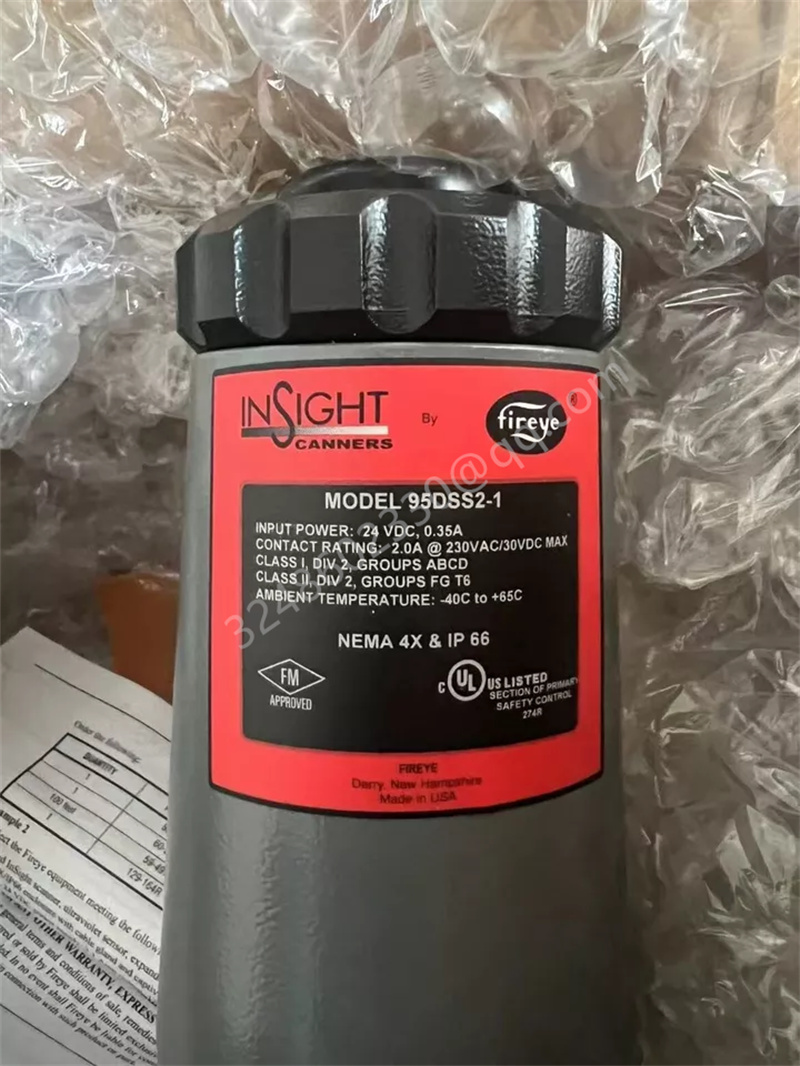

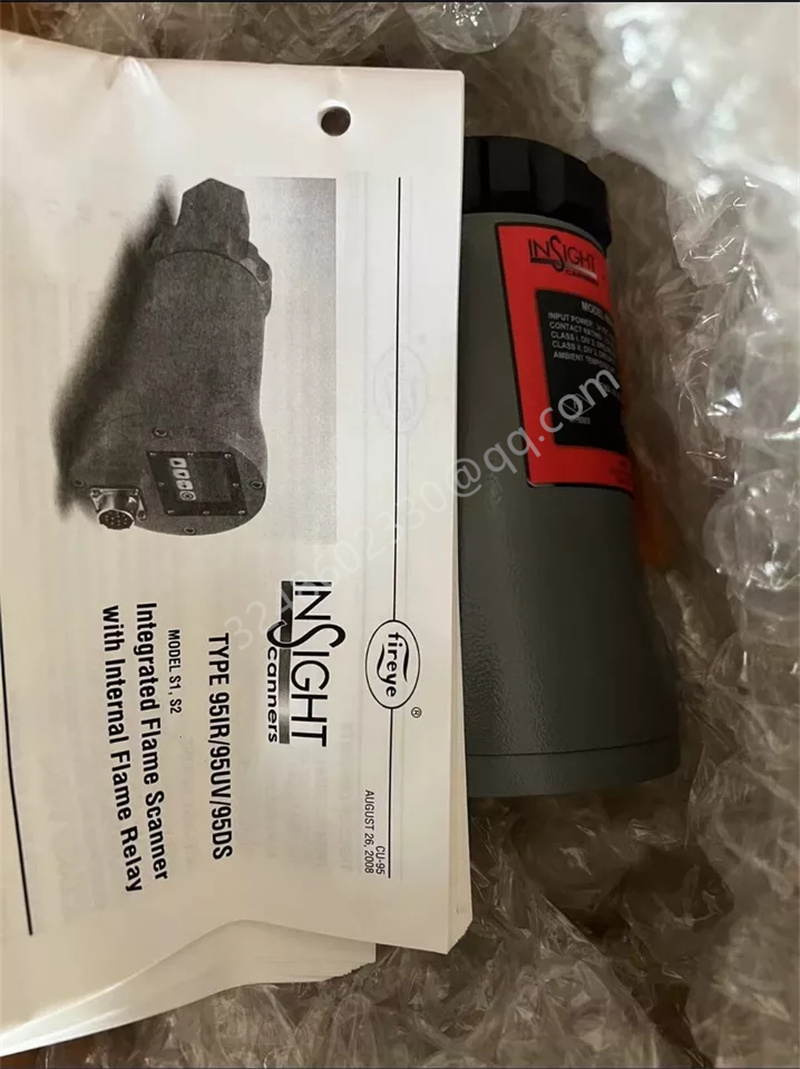

FIREYE 95DSS2-1 是一款高性能的雙探測器火焰檢測器，廣泛應用于工業燃燒系統，如鍋爐、熔爐和管道燃燒器等。

技術規格

傳感器類型：雙傳感器（紅外 IR 和紫外 UV）。

外殼材質：鑄鋁沖模，銀色聚酯粉涂層。

重量：約 1.73 kg（3.8 lbs）。

安裝方式：1 英寸 NPT 內螺紋管連接，帶鎖環安全固定；支持光纖連接。

冷卻風：清潔、干燥、低溫；風量通常為 10 SCFM（17 Nm3/hr）；風壓通常為 6 英寸水柱（4.95 mbar），需比爐膛壓力大。

工作溫度：-40℉ 至 +150℉（-40℃ 至 +65℃）。

濕度：0% 至 95% 相對濕度（不結露）。

輸入電源：24Vdc（+10%，-15%）。

電氣連接：12 針，1/4 旋轉快開接頭。

繼電器輸出：火焰繼電器 SPST（常開觸點）；故障信號繼電器 SPST（常閉觸點）。

模擬量輸出：4-20mA 直流電流輸出（24VDC，最大負載 750 歐姆）。

狀態顯示：八位字符 LED 顯示屏（滾動顯示）。

操作界面：通過四個按鈕式小鍵盤進行操作。

UV 傳感器波長范圍：295~320 nm。

IR 傳感器波長范圍：700~1700 nm。

認證：ATEX 認證，適用于危險區域。

應用場景

工業燃燒系統：如鍋爐、熔爐、管道燃燒器等。

多燃料燃燒系統：適用于多種燃料混燒的工況。

單燃燒器和多燃燒器應用：能夠檢測目標火焰的存在或缺失，確保燃燒系統的安全和穩定運行。

安裝與調試

安裝：設備安裝需遵循 FIREYE 提供的安裝手冊，確保與燃燒系統的連接正確無誤。

調試：根據實際火焰情況調整設備的 ON/OFF 閾值和傳感器增益，以實現最佳火焰檢測效果。

FIREYE 95DSS2-1 火焰檢測器采用先進的雙光譜技術，能夠快速準確地識別火焰的存在，適用于各種工業燃燒系統。其內置的電子自檢功能確保了長期使用的可靠性。

FIREYE 95DSS2-1 is a high-performance dual detector flame detector widely used in industrial combustion systems such as boilers, furnaces, and pipeline burners. technical specifications Sensor type: Dual sensors (infrared IR and ultraviolet UV). Shell material: cast aluminum die, silver polyester powder coating. Weight: Approximately 1.73 kg (3.8 lbs). Installation method: 1-inch NPT internal threaded pipe connection with locking ring for secure fixation; Supports fiber optic connections. Cooling air: clean, dry, low temperature; The air volume is usually 10 SCFM (17 Nm 3/hr); The wind pressure is usually 6 inches of water column (4.95 mbar), which needs to be higher than the furnace pressure. Working temperature: -40 ℉ to+150 ℉ (-40 ℃ to+65 ℃). Humidity: 0% to 95% relative humidity (non condensing). Input power supply: 24Vdc (+10%, -15%). Electrical connection: 12 pin, 1/4 turn quick open connector. Relay output: flame relay SPST (normally open contact); Fault signal relay SPST (normally closed contact). Analog output: 4-20mA DC current output (24VDC, maximum load 750 ohms). Status display: Eight character LED display screen (scrolling display). Operation interface: Operated through four button style small keyboards. UV sensor wavelength range: 295~320 nm. IR sensor wavelength range: 700~1700 nm. Certification: ATEX certification, suitable for hazardous areas.

Application scenarios Industrial combustion systems: such as boilers, furnaces, pipeline burners, etc. Multi fuel combustion system: suitable for working conditions where multiple fuels are co fired. Single burner and multi burner applications: capable of detecting the presence or absence of target flames, ensuring the safe and stable operation of the combustion system. Installation and debugging Installation: The equipment installation must follow the installation manual provided by FIREYE to ensure correct connection with the combustion system. Debugging: Adjust the ON/OFF threshold and sensor gain of the equipment according to the actual flame situation to achieve the best flame detection effect. The FIREYE 95DSS2-1 flame detector adopts advanced dual spectral technology, which can quickly and accurately identify the presence of flames and is suitable for various industrial combustion systems. Its built-in electronic self-test function ensures long-term reliability.
