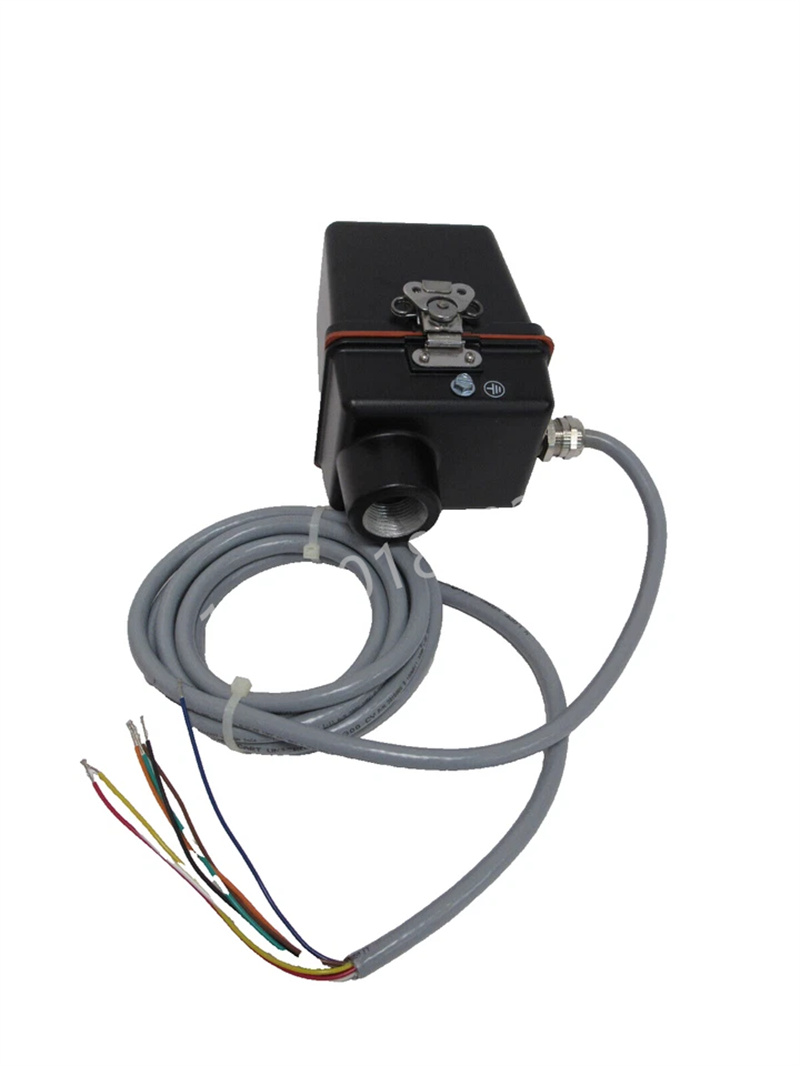

### Fireye 65UV5-1004EQD 火焰探測器
#### 技術規格
- **型號**：65UV5-1004EQD
- **外形尺寸**：250mm × 185mm。
- **重量**：6.6磅（約2.99公斤）。
- **外殼材料**：鑄鋁，黑色聚酯粉末涂層。
- **環境等級**：NEMA 4X/IP66。
- **危險區域分類**：Class I, Division 2, Groups A, B, C, D; Ex II 3 G/D Ex nA IIC T4A。
- **工作溫度范圍**：-40°F至+150°F（-40°C至+65°C）。
- **濕度**：0%至95%相對濕度，非冷凝。
- **電源要求**：24Vdc，+20%/-25%，供電電流100mA。
- **電氣連接**：內部端子排。
- **繼電器輸出**：
- 火焰繼電器：(NO.)/(NC.) SPDT
- 故障繼電器：(NO.) SPST。
- **接觸器額定值**：
- 最小值：1mA @ 5Vdc
- 最大值：2A @ 30Vdc，2A @ 240Vac。
- **狀態指示**：內部LED指示燈，顯示“火焰信號”和“故障指示”。
- **模擬輸出**：4-20mA DC電流，參考24Vdc公共端，最大連接負載750歐姆。
#### 應用領域
Fireye 65UV5-1004EQD火焰探測器廣泛應用于各種工業燃燒設備，包括但不限于：
- **發電廠**：用于鍋爐和燃燒器的火焰監測。
- **石油化工**：用于加熱爐、裂解爐等設備的火焰監測。
- **食品加工**：用于烤箱、干燥爐等設備的火焰監測。
- **造紙廠**：用于紙漿干燥爐等設備的火焰監測。
#### 安裝與維護
- **最佳掃描儀定位**：掃描儀的視線應與燃燒器中心線以小角度相交，確保視線或視角也能看到點火火焰。
- **冷卻/凈化空氣要求**：需要清潔、干燥、冷卻的空氣，體積為4 SCFM（113升/分鐘），在接近掃描儀工作溫度上限和/或使用臟/灰塵燃料時，可能需要高達15 SCFM（425升/分鐘）。
- **維護建議**：定期清潔掃描儀的觀察窗口，確保無污染物（油、煙、煙灰、灰塵），并確保掃描儀的溫度不超過其最大額定值。
Fireye 65UV5-1004EQD火焰探測器憑借其高靈敏度、可靠性和廣泛的應用范圍，成為工業燃燒系統中的重要組件。
| Extreme Networks X460-G2-48P-GE 4 48-Port Edge Ethernet Switch SummitStack |
| Extreme Networks 5520-90W POE Switch - BRAND NEW |
| Extreme Networks ExtremeSwitchi ng Ethernet Switch (X435-8T-4S) |
| X440-G2-24P-10 GE4 / 16533EXTREME NETWORKS X440-G2-24P-10 GE4 SWITCH 16533 |
| Lot of 10 Symbol AP-7522I AP-7522-67030- US Access Points |
| Extreme Networks X440-G2-12P-10 GE4 16531 12 Port Ethernet Switch |
| Extreme / Siemens WS-AP3765i IdentiFi 376X Series Industrial Outdoor Dual 3x3:3 |
| Extreme Networks Summit X460-G2-24t-10 GE4-Base |
| NEW! Extreme Networks AP460C-FCC 4.8 GbpsWireless Access Point |
| Extreme Networks X440-G2-24P-10 GE4 16533 24Plus-Ports POE+ Switch 10GE EDGE Lic |
| EXTREME NETWORKS INC Summit X450e-48p / 16148 / |
| Extreme Summit X450-G2-24p-10 GE4 Gigabit Switch Edge License DirectAttach |
| Extreme Networks BlackDiamond 6808 50011 10-Slot Chassis Switch - Excl Modules |
| Extreme Networks Summit 16301 X480-48T 48-Port Gigabit Switch |
| Extreme Networks BlackDiamond X 48-Port 1GBASE-T RJ45 Module BDXA-G48T 48038 |
| Extreme Networks ExtremeRouting XR600 - router - desktop wall-mountable |
| Extreme Networks 17103 Summit X670-48x-FB 48x 10 Gigabit SFP+ Switch / USED |
| Extreme 16704 X460-G2-48p-10 GE4 Adv Edge Dir Attach 1x 16713 VIM-2SS 1x 10941 PS |
| Lot of 27 Extreme Networks WS-AP3805i WLAN Wireless Access Points |
| Extreme AP7632-680B40- WR 802.11ac Wave 2 Indoor Access Point AP-7632 37114 |
| Extreme X480-48T 16301 48x GbE Switch 2x 10917 PS VIM2-10G4X Advanced Edge Licen |
| 55x Extreme Networks Wireless Access Points WS-AP3805i Dual Band LAN Extenders |
| Extreme Networks Switch X620-16t-Base Part (17402) |
| Extreme Networks X440-G2-48P-10 GE4 48 Port Switch 16535 - Same Day Shipping |
| Extreme Networks Summit X460-G2-24t-GE 4 24x 1GBase-T + 12x 1GBaseX Switch 16716 |
| Extreme Networks 220-24t-10GE2 10GBE SFP+ Gigabit Ethernet Network Switch 16562 |
###Fireye 65UV5-1004EQD flame detector
####Technical specifications
-* * Model * *: 65UV5-1004EQD
-* * Dimensions * *: 250mm × 185mm.
-Weight: 6.6 pounds (approximately 2.99 kilograms).
-Shell material: cast aluminum, black polyester powder coating.
-Environmental rating: NEMA 4X/IP66.
-* * Hazardous Area Classification * *: Class I, Division 2, Groups A, B, C, D; Ex II 3 G/D Ex nA IIC T4A。
-* * Operating temperature range * *: -40 ° F to+150 ° F (-40 ° C to+65 ° C).
-Humidity: 0% to 95% relative humidity, non condensing.
-* * Power requirement * *: 24VDC,+20%/-25%, supply current 100mA.
-Electrical connection: Internal terminal block.
-Relay output:
-Flame relay: (NO.)/(NC.) SPDT
-Fault relay: (NO.) SPST.
-Rated value of contactor:
-Minimum value: 1mA @ 5VDC
-Maximum value: 2A @ 30Vdc, 2A @ 240Vac.
-* * Status indication * *: Internal LED indicator light, displaying "flame signal" and "fault indication".
-* * Analog output * *: 4-20mA DC current, reference 24Vdc common terminal, maximum connected load of 750 ohms.
####Application Fields
The Fireye 65UV5-1004EQD flame detector is widely used in various industrial combustion equipment, including but not limited to:
-* * Power Plant * *: Used for flame monitoring of boilers and burners.
-Petrochemical industry: Used for flame monitoring of heating furnaces, cracking furnaces, and other equipment.
-Food processing: Used for flame monitoring of ovens, drying ovens, and other equipment.
-Paper mill: Used for flame monitoring of equipment such as pulp drying furnaces.
####Installation and maintenance
-Best scanner positioning: The scanner's line of sight should intersect with the centerline of the burner at a small angle to ensure that the ignition flame can also be seen from the line of sight or perspective.
-Cooling/Purification Air Requirements: Air that requires cleaning, drying, and cooling, with a volume of 4 SCFM (113 liters/minute), may require up to 15 SCFM (425 liters/minute) when approaching the upper operating temperature limit of the scanner and/or using dirty/dusty fuel.
-* * Maintenance suggestion * *: Regularly clean the observation window of the scanner to ensure no contaminants (oil, smoke, cigarette ash, dust), and ensure that the temperature of the scanner does not exceed its maximum rated value.
The Fireye 65UV5-1004EQD flame detector has become an important component in industrial combustion systems due to its high sensitivity, reliability, and wide range of applications.
