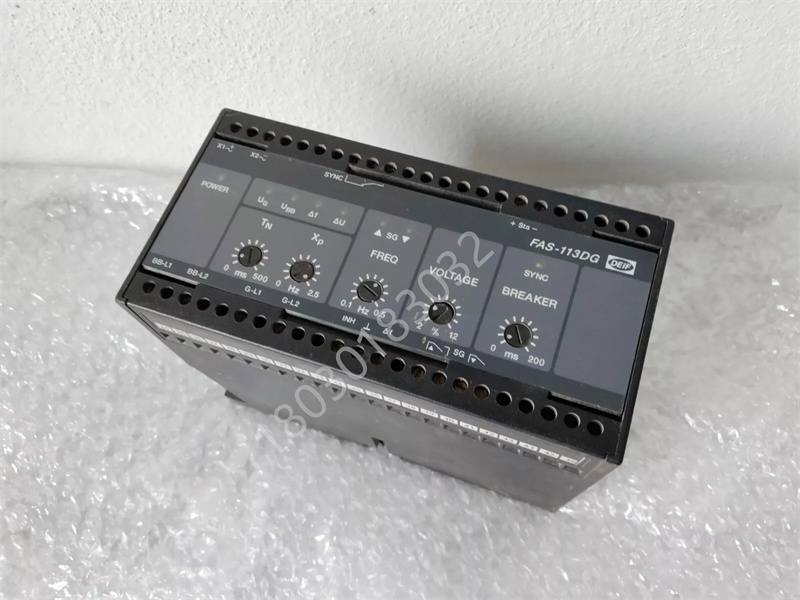

DEIF FAS-113DG 同步控制器是一款高性能的工業自動化設備，廣泛應用于發電機組控制與電力系統同步領域。
一、產品特點
同步控制功能
專為同步發電機至母排設計，具備動態同步控制能力，可防止逆功率狀況發生。
支持超前同步和滯后同步，適應不同應用場景需求。
通過檢測電壓差、頻差和相角差，在預設限值范圍內自動執行發電機合閘操作。
高可靠性與穩定性
采用模塊化設計，便于靈活配置與擴展。
具備冗余設計，確保在惡劣工業環境下穩定運行。
通過嚴格的質量控制和測試，符合工業級標準。
多功能控制與保護
可實現發電機組的啟動、停止、并網、孤島運行等控制功能。
提供過載、欠載、過壓、欠壓、過頻、欠頻、相序錯誤、逆功率等多種保護功能。
支持中文菜單和用戶手冊，操作簡便，維護方便。
擴展性與兼容性
配備模擬頻率輸出和模擬電壓輸出，可與其他設備或系統無縫集成。
支持多種通信接口（如 RS232、RS485、CAN 等），便于實現遠程監控與數據傳輸。
易于配置與操作
設計有 LED 指示燈，直觀顯示設備狀態。
用戶可根據實際需求進行參數設置和調整，實現靈活控制。
二、技術參數
參數 規格
電壓等級 380 V AC
頻率 50/60 Hz
額定電流 6500 A
控制方式 自動/手動
保護功能 過載、欠載、過壓、欠壓、過頻、欠頻、相序錯誤、逆功率等
通信接口 RS232、RS485、CAN 等
外殼防護等級 IP65
工作溫度 -25°C 至 +70°C
存儲溫度 -40°C 至 +85°C
三、應用場景
電力系統同步：用于同步發電機至母排，確保電力系統的穩定運行。
發電機組控制：實現發電機組的啟動、停止、并網、孤島運行等控制功能。
工業自動化：適用于船舶、數據中心、醫院、工廠等對電力供應穩定性要求較高的場景。
分布式能源系統：支持可再生能源發電系統的并網控制，提高能源利用效率。
四、優勢總結
高精度同步：確保發電機在接入系統時的穩定性和安全性。
多功能保護：提供全面的電氣保護功能，延長設備使用壽命。
靈活配置：模塊化設計支持多種應用需求，便于擴展和升級。
易于維護：中文菜單和用戶手冊降低操作難度，LED
The DEIF FAS-113DG synchronous controller is a high-performance industrial automation equipment widely used in the fields of generator control and power system synchronization.
CHARACTERISTICS
Synchronous control function
Specially designed for synchronous generators to busbars, with dynamic synchronization control capability to prevent reverse power conditions from occurring.
Support advanced synchronization and lagging synchronization to meet the needs of different application scenarios.
Automatically execute the generator closing operation within the preset limit range by detecting voltage difference, frequency difference, and phase angle difference.
High reliability and stability
Adopting modular design for flexible configuration and expansion.
Equipped with redundant design to ensure stable operation in harsh industrial environments.
Through strict quality control and testing, it meets industrial grade standards.
Multi functional control and protection
It can achieve control functions such as starting, stopping, grid connection, and islanding operation of the generator set.
Provide multiple protection functions such as overload, underload, overvoltage, undervoltage, overclocking, underflocking, phase sequence error, reverse power, etc.
Supports Chinese menus and user manuals, easy to operate and maintain.
Scalability and compatibility
Equipped with analog frequency output and analog voltage output, it can be seamlessly integrated with other devices or systems.
Supports multiple communication interfaces (such as RS232, RS485, CAN, etc.) to facilitate remote monitoring and data transmission.
Easy to configure and operate
Designed with LED indicator lights to visually display device status.
Users can set and adjust parameters according to their actual needs to achieve flexible control.
2、 Technical parameters
Parameter specifications
Voltage level 380 V AC
Frequency 50/60 Hz
Rated current 6500 A
Control mode: automatic/manual
Protection functions include overload, underload, overvoltage, undervoltage, overclocking, underflocking, phase sequence error, reverse power, etc
Communication interfaces RS232, RS485, CAN, etc
Shell protection level IP65
Working temperature -25 ° C to+70 ° C
Storage temperature -40 ° C to+85 ° C
3、 Application scenarios
Power system synchronization: used to synchronize the generator to the busbar, ensuring the stable operation of the power system.
Generator set control: Implement control functions such as starting, stopping, grid connection, and islanding operation of the generator set.
Industrial automation: suitable for scenarios such as ships, data centers, hospitals, factories, etc. that require high stability in power supply.
Distributed energy system: supports grid control of renewable energy generation systems to improve energy utilization efficiency.
4、 Summary of Advantages
High precision synchronization: ensuring the stability and safety of the generator when connected to the system.
Multi functional protection: Provides comprehensive electrical protection functions to extend the service life of equipment.
Flexible configuration: Modular design supports multiple application requirements, making it easy to expand and upgrade.
Easy to maintain: Chinese menu and user manual reduce operational difficulty, LED
