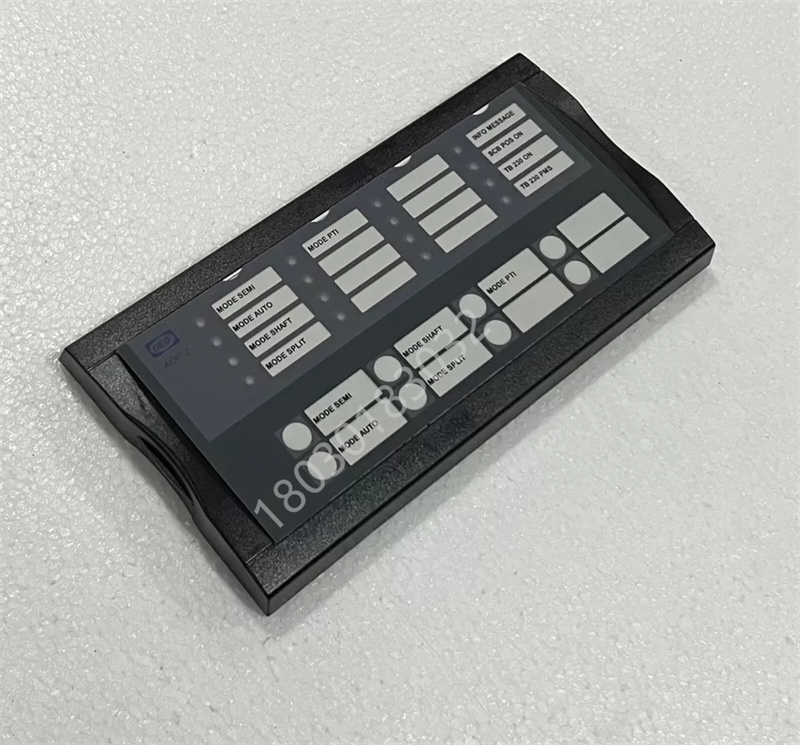

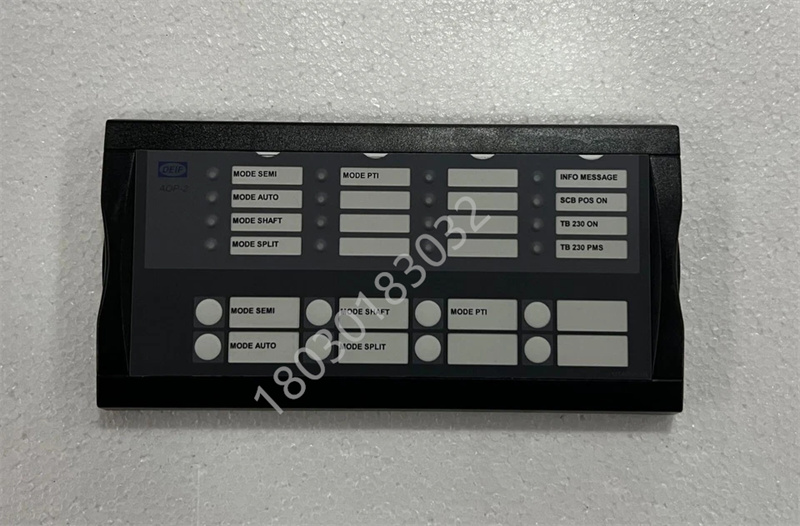

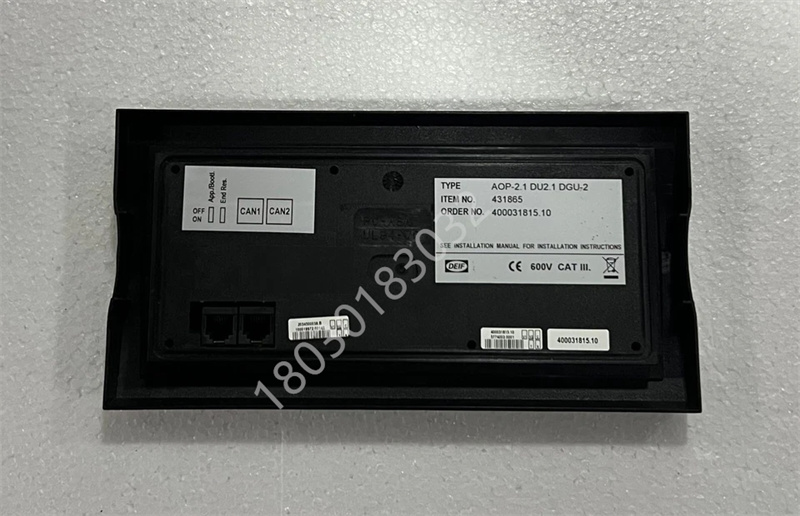

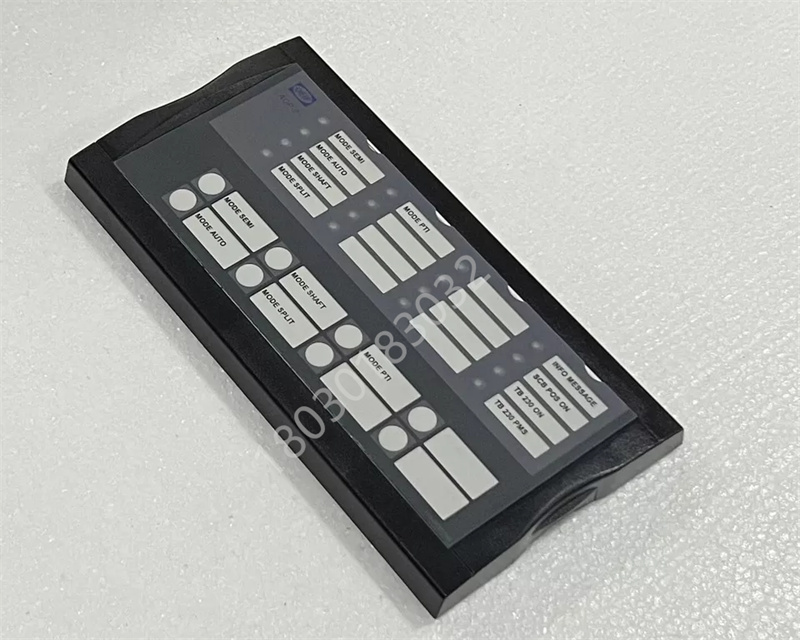

Deif DGU-2 差動保護裝置是丹麥 DEIF 公司推出的一款專業電力保護設備，主要應用于發電機、變壓器等關鍵電力設備的差動保護，確保電力系統安全穩定運行。
一、產品特點
高精度電流檢測
DGU-2 差動保護裝置采用高精度電流互感器（CT）和先進的數字信號處理技術，能夠?qū)崟r(shí)、準確地監測設備電流變化，確保差動保護的靈敏度和可靠性。
快速故障響應
裝置具備高速的故障檢測和響應能力，可在毫秒級時間內識別并切除故障，有效防止設備損壞和事故擴大。
靈活的配置與參數設置
用戶可根據具體應用需求，靈活配置保護功能、動作門檻值、延時時間等參數，滿足不同場景的定制化需求。
全面的保護功能
除差動保護外，DGU-2 還集成過流、過載、接地故障等多種保護功能，提供全方位的設備保護。
友好的人機界面
裝置配備直觀的操作界面和顯示模塊，支持本地參數設置、狀態監測和故障記錄查詢，便于用戶操作和維護。
高可靠性與穩定性
采用工業級元器件和冗余設計，確保裝置在惡劣環境下長期穩定運行，減少維護成本。
二、功能優勢
差動保護功能
通過比較設備兩側電流的矢量差，識別內部故障（如繞組短路、接地故障等），并快速切斷故障回路，保護設備安全。
諧波抑制與抗干擾能力
內置先進的濾波算法，有效抑制諧波干擾，確保保護動作的準確性。
通信與監控功能
支持 Modbus、IEC 61850 等多種通信協議，可與上位機或監控系統集成，實現遠程監控和數據傳輸。
故障記錄與分析
裝置可記錄故障發生時的電流、電壓波形及動作時間，為故障分析提供詳細數據支持。
三、應用場景
DGU-2 差動保護裝置廣泛應用于以下領域：
發電廠：保護發電機、變壓器等核心設備。
工業電力系統：保護大型電動機、變頻器等關鍵負載。
新能源領域：適用于風力發電機、光伏逆變器等設備的保護。
數據中心與基礎設施：保障供電系統的可靠性和連續性。
四、技術參數（參考典型規格）
參數 規格
額定電流 1A/5A（可定制）
動作時間 <20ms（典型值）
精度等級 0.2S（電流測量）
通信接口 RS485、以太網、IEC 61850
工作溫度 -25°C 至 +70°C
防護等級 IP54（可選 IP65）
五、安裝與維護
安裝：需由專業技術人員按照說明書進行安裝，確保電流互感器極性正確，二次回路接線牢固。
維護：定期檢查裝置運行狀態，清潔外殼，更新固件，并根據需要校準參數。
Deif DGU-2 differential protection device is a professional power protection equipment launched by DEIF company in Denmark. It is mainly used for differential protection of key power equipment such as generators and transformers, ensuring the safe and stable operation of the power system.
CHARACTERISTICS
High precision current detection
The DGU-2 differential protection device adopts high-precision current transformers (CT) and advanced digital signal processing technology, which can monitor equipment current changes in real time and accurately, ensuring the sensitivity and reliability of differential protection.
Quick fault response
The device has high-speed fault detection and response capabilities, which can identify and remove faults in milliseconds, effectively preventing equipment damage and accident escalation.
Flexible configuration and parameter settings
Users can flexibly configure protection functions, action threshold values, delay times, and other parameters according to specific application requirements to meet customized needs in different scenarios.
Comprehensive protection function
In addition to differential protection, DGU-2 also integrates multiple protection functions such as overcurrent, overload, and ground fault, providing comprehensive equipment protection.
Friendly human-machine interface
The device is equipped with an intuitive operating interface and display module, supporting local parameter settings, status monitoring, and fault record queries, making it easy for users to operate and maintain.
High reliability and stability
Adopting industrial grade components and redundant design to ensure long-term stable operation of the device in harsh environments and reduce maintenance costs.
2、 Functional advantages
Differential protection function
By comparing the vector difference of currents on both sides of the equipment, internal faults (such as winding short circuits, grounding faults, etc.) can be identified, and the faulty circuit can be quickly cut off to protect the safety of the equipment.
Harmonic suppression and anti-interference capability
Built in advanced filtering algorithms effectively suppress harmonic interference and ensure the accuracy of protection actions.
Communication and monitoring functions
Supports multiple communication protocols such as Modbus and IEC 61850, and can be integrated with upper computers or monitoring systems to achieve remote monitoring and data transmission.
Fault recording and analysis
The device can record the current, voltage waveform, and action time when a fault occurs, providing detailed data support for fault analysis.
3、 Application scenarios
DGU-2 differential protection device is widely used in the following fields:
Power plant: protects core equipment such as generators and transformers.
Industrial power system: protects critical loads such as large motors and frequency converters.
In the field of new energy, it is suitable for the protection of equipment such as wind turbines and photovoltaic inverters.
Data center and infrastructure: ensuring the reliability and continuity of the power supply system.
4、 Technical parameters (refer to typical specifications)
Parameter specifications
Rated current 1A/5A (customizable)
Action time<20ms (typical value)
Accuracy level 0.2S (current measurement)
Communication interface RS485, Ethernet IEC 61850
Working temperature -25 ° C to+70 ° C
Protection level IP54 (optional IP65)
5、 Installation and maintenance
Installation: Professional technicians need to install according to the instructions to ensure that the polarity of the current transformer is correct and the secondary circuit wiring is firm.
Maintenance: Regularly check the operating status of the device, clean the casing, ｕｐｄａｔｅ firmware, and calibrate parameters as needed.
