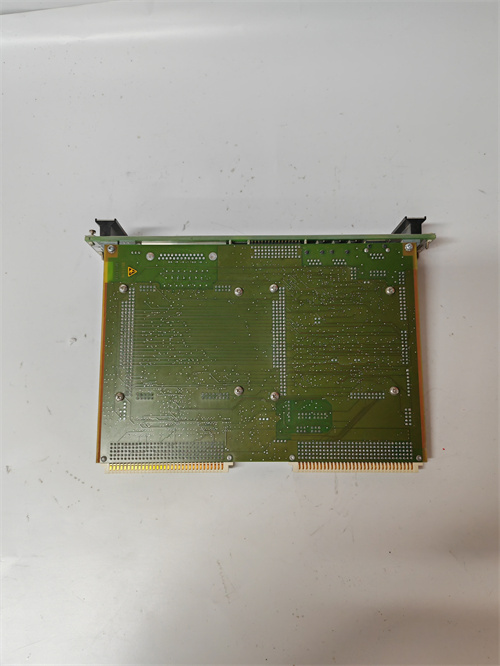

Vibro-Meter VM600系列是一套專為大型關鍵旋轉機械設計的振動監測與保護系統，其CPUM模塊與保護卡（如MPC4）的協同工作，實現了對設備狀態的實時監測與智能保護。以下從技術架構、功能實現及工業應用三個維度展開分析：
一、系統架構：CPUM模塊的核心角色
模塊化設計
VM600采用19英寸機架式結構，支持保護卡（MPC4）、狀態監測卡（XMV16）等模塊的靈活組合。CPUM作為機架控制器，負責：
通信管理：通過Modbus RTU/TCP或PROFINET協議與上位機（如VM600 MPSx軟件）交互，實現保護卡的“一鍵式”配置。
數據處理：接收保護卡采集的振動信號（加速度、速度、位移等），執行數字濾波、階次跟蹤等算法，確保數據準確性。
監控輸出顯示
CPUM集成前面板顯示器，實時呈現關鍵參數：
動態振動數據：如軸承振動幅值（μm）、振動速度（mm/s）。
轉速信息：通過接近探頭或磁脈沖傳感器獲取的軸轉速（RPM）。
報警狀態：可視化警報閾值（如ISO 10816標準限值）及當前觸發狀態（如紅色警示燈）。
安全操作機制
警報重置（AR）按鈕：允許操作人員在故障排除后手動復位報警，恢復系統正常運行。
熱插拔支持：保護卡支持帶電插拔，便于維護升級而不中斷監測。
二、保護卡功能：MPC4的技術優勢
多通道監測能力
動態通道：4通道同步采集振動信號，支持IEPE加速度傳感器或渦流位移探頭。
轉速通道：2通道獨立監測轉速，兼容接近探頭、磁阻傳感器等。
智能信號處理
數字濾波：消除高頻噪聲干擾，提升信號信噪比。
階次跟蹤：分析振動信號與轉速的關聯性，識別特定頻率成分（如軸承故障特征頻率）。
可編程報警邏輯
閾值設定：用戶可自定義振動幅值、轉速偏差等報警觸發條件。
輸出擴展：報警信號可通過繼電器卡（如IOC4T）驅動外部設備（如停機保護、聲光報警器）。
三、工業應用場景與集成方案
關鍵設備保護
電力行業：監測燃?xì)廨啓C(jī)、水輪發電機組，預防因振動超標導致的軸系損壞。
石油化工：保護離心壓縮機、泵組，避免葉片斷裂或軸承過熱引發的連鎖故障。
系統兼容性
與DCS/PLC集成：CPUM作為通信網關，將振動數據接入工廠控制系統，實現預測性維護。
軟件支持：VM600 MPSx軟件提供事件日志、趨勢分析功能，輔助故障診斷。
擴展性與認證
擴展能力：?jiǎn)闻_(tái)VM600機架最多支持48通道，適用于多機組集中監控。
合規性：符合API 670標準，滿足SIL 2安全完整性等級要求。
The Vibro Meter VM600 series is a vibration monitoring and protection system designed specifically for large critical rotating machinery. Its CPUM module and protection card (such as MPC4) work together to achieve real-time monitoring and intelligent protection of equipment status. The following analysis is conducted from three dimensions: technical architecture, functional implementation, and industrial applications:
1、 System Architecture: The Core Role of CPUM Module
Modular design
VM600 adopts a 19 inch rack mounted structure, supporting flexible combinations of modules such as protection card (MPC4) and status monitoring card (XMV16). As a rack controller, CPUM is responsible for:
Communication management: Interact with the upper computer (such as VM600 MPSx software) through Modbus RTU/TCP or PROFINET protocols to achieve "one click" configuration of the protection card.
Data processing: Receive vibration signals (acceleration, velocity, displacement, etc.) collected by the protection card, perform algorithms such as digital filtering and order tracking to ensure data accuracy.
Monitoring output display
CPUM integrated front panel display, real-time display of key parameters:
Dynamic vibration data: such as bearing vibration amplitude (μ m) and vibration velocity (mm/s).
Speed information: Shaft speed (RPM) obtained through proximity probes or magnetic pulse sensors.
Alarm status: Visual alarm threshold (such as ISO 10816 standard limit) and current triggering status (such as red warning light).
Security operation mechanism
Alarm Reset (AR) button: allows operators to manually reset alarms and restore normal system operation after troubleshooting.
Hot swappable support: The protection card supports live plugging and unplugging, making it easy to maintain and upgrade without interrupting monitoring.
2、 Protection card function: technical advantages of MPC4
Multi channel monitoring capability
Dynamic channel: 4-channel synchronous acquisition of vibration signals, supporting IEPE acceleration sensors or eddy current displacement probes.
Speed channel: 2-channel independent monitoring of speed, compatible with proximity probes, magnetic resistance sensors, etc.
intelligent signal processing
Digital filtering: eliminates high-frequency noise interference and improves signal to noise ratio.
Order tracking: Analyze the correlation between vibration signals and rotational speed, identify specific frequency components (such as bearing fault characteristic frequencies).
Programmable alarm logic
Threshold setting: Users can customize alarm triggering conditions such as vibration amplitude and speed deviation.
Output extension: Alarm signals can be driven by relay cards (such as IOC4T) to external devices (such as shutdown protection, sound and light alarms).
3、 Industrial application scenarios and integration solutions
Key equipment protection
Power industry: Monitor gas turbines and hydro generators to prevent shaft damage caused by excessive vibration.
Petrochemical industry: Protect centrifugal compressors and pump units to avoid chain failures caused by blade breakage or bearing overheating.
system compatibility
Integration with DCS/PLC: CPUM serves as a communication gateway to connect vibration data to the factory control system for predictive maintenance.
Software support: VM600 MPSx software provides event logging and trend analysis functions to assist in fault diagnosis.
Scalability and Authentication
Scalability: A single VM600 rack can support up to 48 channels and is suitable for centralized monitoring of multiple units.
Compliance: Complies with API 670 standard and meets SIL 2 safety integrity level requirements.
