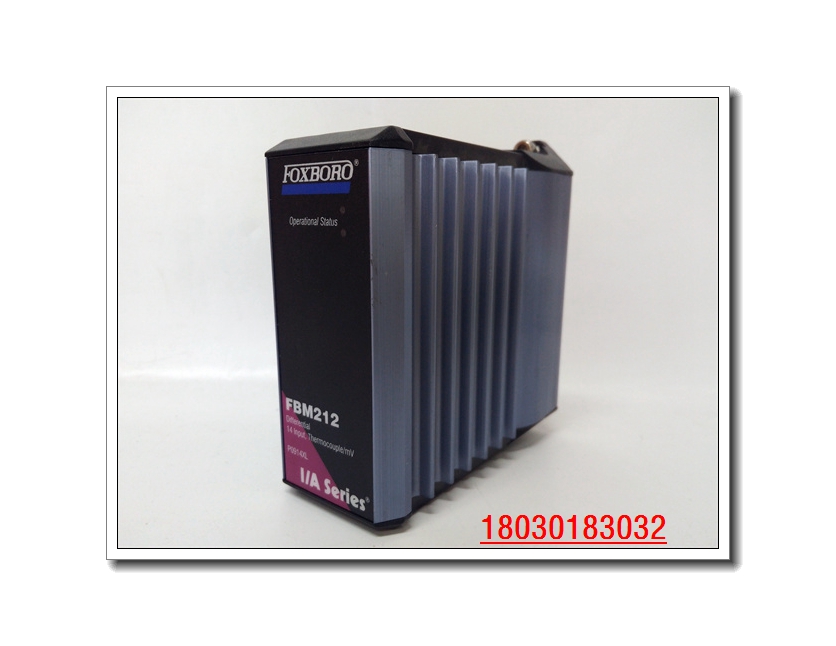

Foxboro FBM212 P0914XL 14通道熱電偶輸入接口組件是一款高性能的工業級熱電偶輸入模塊，專為處理復雜工業環境中的溫度測量而設計。以下是對該組件的詳細解析：

一、產品概述

• 型號：FBM212 P0914XL
• 制造商：Foxboro（英維思集團旗下品牌）
• 類型：熱電偶/mV輸入模塊
• 主要功能：提供14個差分隔離熱電偶輸入通道，以及一個差分隔離RTD基準結溫度補償通道（用于終端溫度傳感）。

二、技術規格與特點

1. 輸入通道：
• 數量：14個差分隔離熱電偶輸入通道
• 兼容性：接受各種溫度范圍的標準熱電偶
• 功能：每個通道提供熱電偶燒毀檢測（上量程）功能
2. RTD基準結補償通道：
• 數量：1個
• 用途：用于終端溫度傳感，提供高精度的溫度補償
3. 信號轉換：
• 執行從現場傳感器到可選冗余現場總線的電氣輸入信號接口所需的信號轉換。
• 提供轉換時間和變化率限制的可配置選項。
4. 高精度：
• 通過每個通道的sigma-delta數據轉換實現高精度。
• 集成多路復用Sigma-Delta轉換器，每500毫秒提供新的模擬輸入讀數，并可配置積分周期以消除過程噪聲和電源線頻率干擾。
5. 堅固耐用：
• 設計堅固，適用于G3級（惡劣）環境下的外殼。
• 擠壓鋁外殼為電路提供物理保護，符合ISA標準S71.04，提供不同程度的環境保護。
6. 連接與安裝：
• 終端組件（TAs）支持將現場布線本地或遠程連接到FBM212。
• 模塊安裝在200系列底板上，最多可容納四個或八個現場總線模塊。
• 底板可安裝在DIN導軌上或機架上，包括用于冗余現場總線的信號連接器、冗余獨立直流電源和終端電纜。

三、應用與優勢

• 應用領域：廣泛適用于需要高精度溫度測量的工業環境，如化工、石油、天然氣、電力、鋼鐵等行業。
• 優勢：
• 高精度：通過sigma-delta數據轉換技術實現高精度測量。
• 可靠性：堅固耐用的設計確保在惡劣環境下穩定工作。
• 靈活性：提供可配置的轉換時間和變化率限制選項，滿足不同應用場景的需求。
• 冗余性：支持冗余現場總線連接，提高系統的可靠性和穩定性。

The Foxboro FBM212 P0914XL 14-channel thermocouple Input module is a high-performance, industrial-grade thermocouple input module designed to handle temperature measurements in complex industrial environments. Here is a detailed breakdown of the component:

I. Product overview

Model: FBM212 P0914XL

Manufacturer: Foxboro (Invensys Group)

Type: Thermocouple /mV input module

Main Features: 14 differential isolated thermocouple input channels, and one differential isolated RTD reference junction temperature compensation channel (for terminal temperature sensing).

Second, technical specifications and characteristics

Input channel:

Quantity: 14 differential isolated thermocouple input channels

Compatibility: Standard thermocouples in various temperature ranges are accepted

Function: Each channel provides thermocouple burn detection (upper range) function

RTD reference junction compensation channel:

Quantity: 1

Purpose: For terminal temperature sensing, to provide high precision temperature compensation

Signal conversion:

Perform the required signal conversion from the field sensor to the electrical input signal interface of the optional redundant fieldbus.

Provides configurable options for conversion time and rate of change limits.

High precision:

High precision is achieved through sigma-delta data conversion on each channel.

Integrated multiplexed Sigma-Delta converters provide new analog input readings every 500 milliseconds and can be configured for integration cycles to eliminate process noise and power line frequency interference.

Rugged and durable:

Rugged design for enclosures in G3 (harsh) environments.

The extruded aluminum housing provides physical protection for the circuit and complies with ISA standard S71.04, providing varying degrees of environmental protection.

Connection and installation:

The Terminal Component (TAs) supports local or remote connection of field cabling to the FBM212.

Modules are mounted on the 200 Series baseplate and can accommodate up to four or eight fieldbus modules.

The base plate can be mounted on a DIN rail or rack and includes signal connectors for redundant fieldbuses, redundant independent DC power supplies and terminal cables.

3. Application and advantages

Application: Widely used in industrial environments requiring high precision temperature measurement, such as chemical, oil, natural gas, electric power, steel and other industries.

Advantages:

High precision: High precision measurement through sigma-delta data conversion technology.

Reliability: Rugged design ensures stable operation in harsh environments.

Flexibility: Provides configurable conversion time and rate of change limiting options to meet the needs of different application scenarios.

Redundancy: Supports redundant fieldbus connections to improve system reliability and stability.
