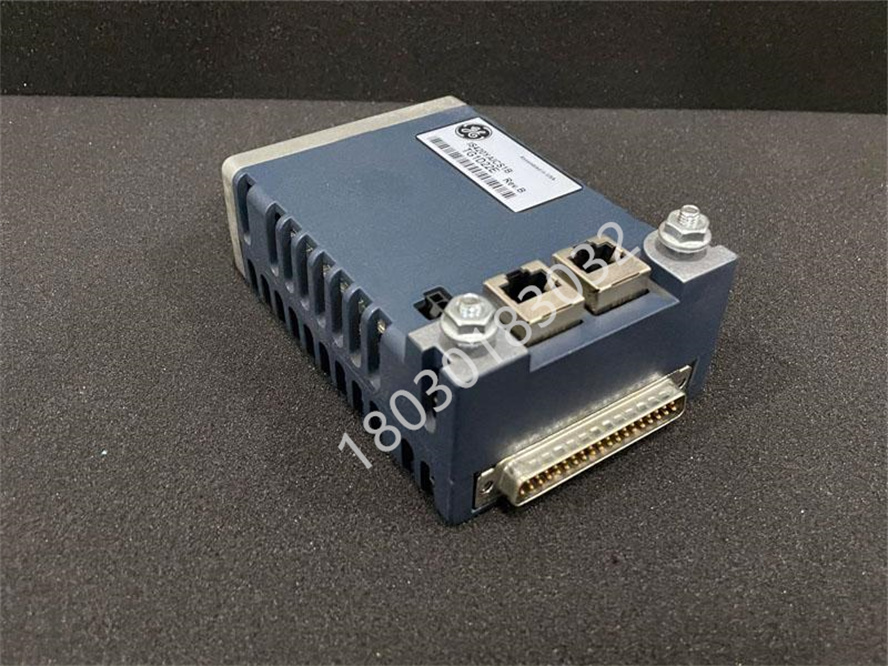

GE通用電氣IS420YAICS1B輸入輸出端子模塊是一款高性能的模擬I/O(輸入/輸出)模塊,它作為GE Mark VIeS控制系統的一部分,在工業自動化領域發揮著重要作用。以下是對該模塊的詳細解析:
一、產品概述
IS420YAICS1B模塊主要用于連接一個或兩個I/O以太網與模擬輸入/輸出端子板,實現模擬信號的精確采集、轉換和控制。該模塊具備強大的模擬信號處理能力,能夠?yàn)楣I(yè)自動化系統提供可靠、精確的數據支持,滿足各種復雜工業應用的需求。
二、主要特點
高精度模擬信號處理:IS420YAICS1B能夠接收來自相關端子板的輸入電壓信號,并通過精密的轉換機制將其轉換為控制系統可以理解的數字信號,確保信號的準確性和可靠性。
靈活的輸入配置:該模塊支持多種輸入配置方式,能夠適應不同的工業自動化應用場景,提供靈活的數據采集和控制方案。
服務性接口功能:除了基本的輸入輸出功能外,IS420YAICS1B還具備服務性接口功能,在設備發動、關機或運轉過程中進行故障檢測和維護服務,提高了系統的可維護性和可靠性。
兼容性:該模塊與BPPC處理器板兼容,并支持V05.01或更高版本的固件。同時,它還需要配合V06.01或更高版本的ControlST軟件使用,以確保系統的穩定運行。
三、結構組成
IS420YAICS1B模塊由一個處理器板和一個特定于輸入功能的采集板組成。這種設計使得模塊在處理復雜工業信號時更加高效和穩定。
四、應用領域
IS420YAICS1B模塊廣泛應用于工業自動化領域,特別是在需要精確控制模擬信號的場合。例如,它可以用于工業渦輪機、發電機等設備的溫度、壓力、流量等參數的監測和控制,確保設備的穩定運行和生產效率。


GE GE IS420YAICS1B Input/Output terminal module is a high-performance analog I/O (input/output) module that plays an important role in the field of industrial automation as part of the GE Mark VIeS control system. The following is a detailed analysis of the module:
I. Product overview
IS420YAICS1B module is mainly used to connect one or two I/O Ethernet and analog input/output terminal board to achieve accurate acquisition, conversion and control of analog signals. The module has powerful analog signal processing capabilities, which can provide reliable and accurate data support for industrial automation systems to meet the needs of various complex industrial applications.
Two, the main characteristics
High precision analog signal processing: The IS420YAICS1B is capable of receiving input voltage signals from the relevant terminal board and converting them into digital signals that the control system can understand through a sophisticated conversion mechanism, ensuring the accuracy and reliability of the signal.
Flexible input configuration: The module supports a variety of input configuration modes, which can adapt to different industrial automation application scenarios and provide flexible data acquisition and control schemes.
Service interface function: In addition to the basic input and output functions, the IS420YAICS1B also has a service interface function, fault detection and maintenance services during equipment startup, shutdown or operation, improving the maintainability and reliability of the system.
Compatibility: The module is compatible with BPPC processor boards and supports firmware version V05.01 or later. At the same time, it also needs to be used with V06.01 or later ControlST software to ensure stable operation of the system.
Three, structure composition
The IS420YAICS1B module consists of a processor board and a capture board specific to the input function. This design makes the module more efficient and stable when processing complex industrial signals.
4. Application field
The IS420YAICS1B module is widely used in the field of industrial automation, especially where precise control of analog signals is required. For example, it can be used to monitor and control the temperature, pressure, flow and other parameters of industrial turbines, generators and other equipment to ensure the stable operation and production efficiency of the equipment.
