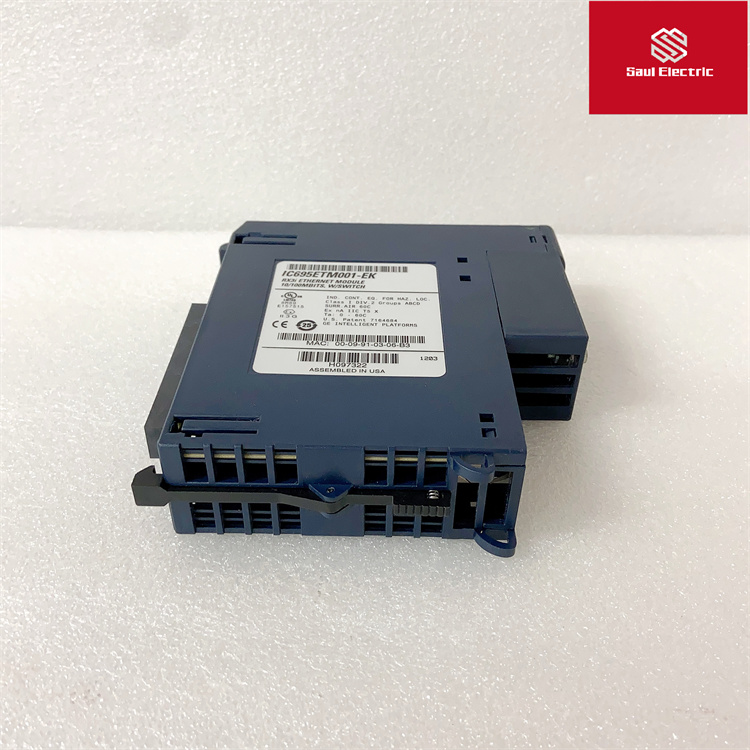

GE美國IC695ETM001以太網通訊模塊是一款高性能的通信模塊，以下是對其的詳細介紹：

主要功能與特點：

IC695ETM001是一款兩（2）端口以太網發射器模塊，可實現以太網連接，支持10/100 Mbps傳輸速率和自動協商功能。

該模塊使PACSystem能夠與90系列和VersaMax控制器等其他控制器平臺通信。

通過四層TCP/IP（互聯網）協議棧執行服務請求傳輸協議（SRTP）、Modbus TCP和以太網全局?jǐn)?shù)據（EGD）協議。

支持通過以太網全局?jǐn)?shù)據進行定期數據交換，執行EGD命令以讀寫控制器。

支持使用串行實時傳輸協議（SRTP）和SRTP通道的TCP/IP服務，能夠充當MODBUS TCP服務器和MODBUS TCP客戶端。

配備一個嵌入式開關，可配置為自動協商、感應、速度和交叉檢測。

可用于在以太網TCP/IP上與SNTP時間服務器進行時間同步。

技術規格：

以太網處理器速度為200 MHz。

配有LED狀態指示燈，包括以太網確定、局域網確定、日志清空、單個端口和速度LED狀態指示燈。

支持RS-232串行端口，數據傳輸速率從1200 bps到115200 bps。

模塊內置的站管理器功能可通過串口和以太網連接訪問，并提供監控訪問。

適用場景：

該模塊適用于工控領域，可用于數據采集、通信傳輸?shù)确矫妗?/p>

適用機型包括RX3i控制器。

安裝與維護：

可使用兼容背板IC695CHS007、CHS012或CHS016進行安裝。

與除CPE400之外的任何其他PACSystem RX3i模塊兼容。

最好安裝在無電源的RX3i背板上，但也支持在有電源或處理器處于運行模式時插入（熱插拔功能）。

物理特性：

工作電壓：24VDC

工作溫度：-40℃到70℃

工作濕度：5%到95%

產品尺寸：125mm x 72mm x 138mm

產品重量：0.5kg

外殼材質：金屬

其他信息：

安裝時，需確認產品與機型匹配，按照產品使用說明進行安裝和配置。

正常情況下，電容的使用壽命為5年

GE US IC695ETM001 Ethernet communication module is a high-performance communication module, the following is a detailed introduction:

Main functions and features:

The IC695ETM001 is a two (2) port Ethernet transmitter module that enables Ethernet connectivity and supports 10/100 Mbps transmission rates and auto-negotiation.

This module enables PACSystem to communicate with other controller platforms such as the 90 Series and VersaMax controllers.

Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols are executed over the Layer 4 TCP/IP (Internet) protocol stack.

Supports periodic data exchange over Ethernet global data, and runs EGD commands to read and write controllers.

Support for TCP/IP services using Serial Real-time Transport Protocol (SRTP) and SRTP channels, capable of acting as both MODBUS TCP server and MODBUS TCP client.

Equipped with an embedded switch that can be configured for automatic negotiation, sensing, speed and cross detection.

Can be used to synchronize time with the SNTP time server over Ethernet TCP/IP.

Technical specifications:

Ethernet processor speed is 200 MHz.

Equipped with LED status indicators, including Ethernet determine, LAN determine, log clear, individual port and speed LED status indicators.

Support RS-232 serial port, data transfer rate from 1200 bps to 115200 bps.

The station manager function built into the module is accessible via serial and Ethernet connections and provides monitoring access.

Application scenario:

The module is suitable for industrial control field and can be used for data acquisition, communication transmission and so on.

Models include RX3i controllers.

Installation and maintenance:

The compatible backplane IC695CHS007, CHS012, or CHS016 can be used for installation.

Compatible with any other PACSystem RX3i module except the CPE400.

It is best installed on an unpowered RX3i backplane, but it also supports insertion when power is available or the processor is in running mode (hot swap function).

Physical characteristics:

Working voltage: 24VDC

Operating temperature: -40℃ to 70℃

Operating humidity: 5% to 95%

Product size: 125mm x 72mm x 138mm

Product weight: 0.5kg

Case material: metal

Additional information:

During installation, ensure that the product matches the model and follow the instructions for installing and configuring the product.

Under normal circumstances, the service life of the capacitor is 5 years
