GE VME通信板 IS200VCMIH2BE 通用電氣渦輪控制卡是一款專為工業燃?xì)夂驼羝啓C控制系統設計的硬件組件。以下是關于這款控制卡的詳細信息和特點：

1. 品牌與型號：
• 品牌：通用電氣（GE）
• 型號：IS200VCMIH2BE
2. 產品概述：
• IS200VCMIH2BE是GE Speedtronic Mark VI渦輪控制系統的一部分，該系統通常用于加工廠和發電應用中，以控制渦輪機啟動期間的速度、同步發電機、提供渦輪機負載控制以及防止負載損失和渦輪機超速情況。
3. 功能與應用：
• 作為單位數據高速公路（UDH）的一部分，IS200VCMIH2BE的功能相當于主通信控制板。
• 數據被讀取并通過光纖以太網（IONet）傳輸?shù)狡渌濉?/li>
• VCMI板可以為單工或TMR（三模冗余）應用而設計，而IS200VCMIH2BE板是一個TMR板。
4. 硬件特點：
• 雙面板設計，背面主要是電阻和電容，而正面包括復雜的連接器端口、電感/扼流圈、tp測試點和集成電路。
• 連接的前面板有三個IONet端口和一個陽串行端口。
• 面板上還包括一個復位按鈕、兩個固定螺釘和四組LED指示燈（一組3個、一組6個、一組8個和另一組3個）。
5. 數據傳輸與容錯：
• 使用SIFT投票（軟件實現的容錯），數據以一個數據包的形式廣播到所有遠程機架。
• 這些遠程位置的VCMI板提取適當?shù)姆纸M數據。

GE VME Communication Board IS200VCMIH2BE General Electric Turbine Control Card is a hardware component designed for industrial gas and steam turbine control systems. Here are the details and features of this control card:

Brand and Model:

Brand: General Electric

Model: IS200VCMIH2BE

Product Overview:

The IS200VCMIH2BE is part of the GE Speedtronic Mark VI turbine control system, which is commonly used in processing plants and power generation applications to control turbine speeds during start-up, synchronize generators, provide turbine load control, and prevent load loss and turbine overspeed situations.

Functions and Applications:

As part of the Unit Data Highway (UDH), the IS200VCMIH2BE functions as a master communication control board.

The data is read and transmitted to other boards via Fiber Optic Ethernet (IONet).

The VCMI board can be designed for simplex or TMR (three-mode redundancy) applications, while the IS200VCMIH2BE board is a TMR board.

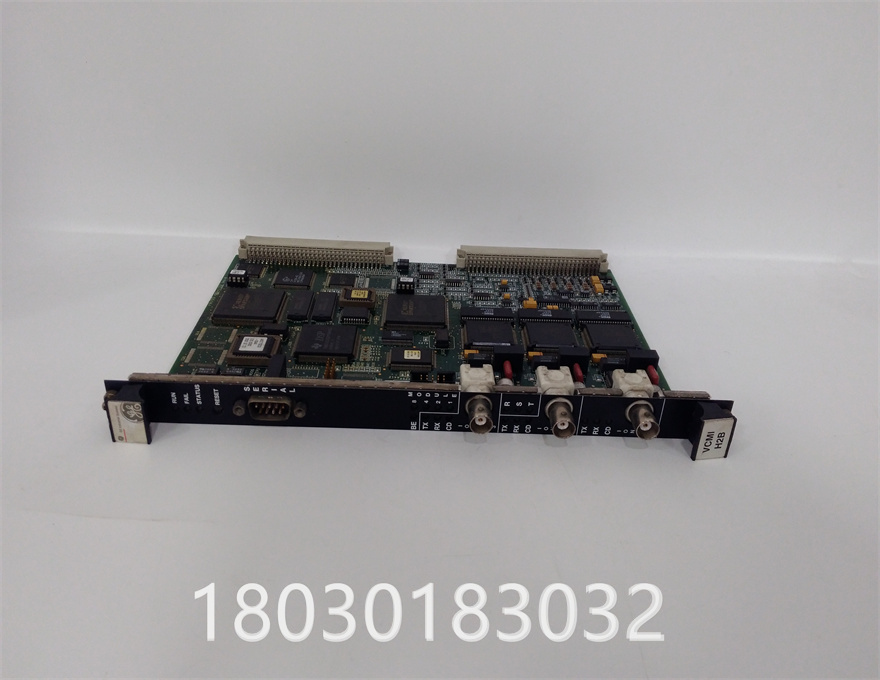

Hardware features:

A dual-panel design, the back is primarily resistors and capacitors, while the front includes complex connector ports, inductors/chokes, tp test points, and integrated circuits.

The connected front panel has three IONet ports and one positive serial port.

The panel also includes a reset button, two setting screws, and four sets of LED indicators (one set of three, one set of six, one set of eight, and another set of three).

Data transmission and fault tolerance:

Using SIFT voting (software-implemented fault tolerance), the data is broadcast as a single packet to all remote racks.

VCMI boards at these remote locations extract the appropriate packet data.
