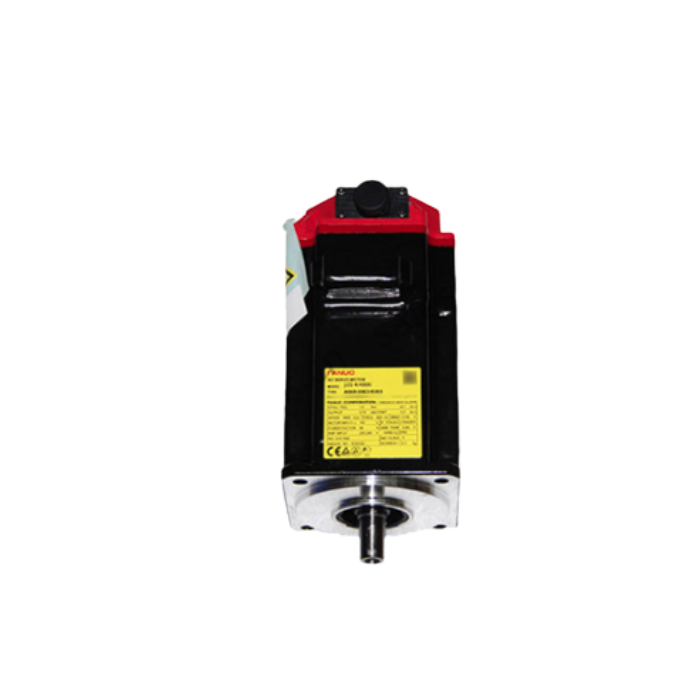

A06B-1475-B123  FANUC 交流伺服電機

交流伺服電機的基本常識

交流伺服電動機的結構主要可分為兩部分，即定子部分和轉子部分。其中定子的結構與旋轉變壓器的定子基本相同，在定子鐵心中也安放著空間互成90度電角度的兩相繞組。其中一組為激磁繞組，另一組為控制繞組，交流伺服電動機是一種兩相的交流電動機。交流伺服電動機使用時，激磁繞組兩端施加恒定的激磁電壓UJf，控制繞組兩端施加控制電壓Uk。當定子繞組加上電壓后，伺服電動機很快就會轉動起來。通入勵磁繞組及控制繞組的電流在電機內產生一個旋轉磁場，旋轉磁場的轉向決定了電機的轉向，當任意一個繞組上所加的電壓反相

時，旋轉磁場的方向就發生改變，電機的方向也發生改變。為了在電機內形成一個圓形旋轉磁場，要求激磁電壓Uf和控制電壓UK之間應有90度的相位差，常用的方法有;

1)利用三相電源的相電壓和線電壓構成90度的移相

2）利用三相電源的任意線電壓

3）采用移相網絡

4）在激磁相中串聯電容器

Ac servo motor basic knowledge

The structure of AC servo motor can be divided into two parts, namely the stator part and the rotor part. The structure of the stator is basically the same as that of the rotating transformer. In the stator core, a two-phase winding with a space of 90 degrees electrical Angle is also placed. One group of excitation winding, the other group of control winding, AC servo motor is a two-phase AC motor. When the AC servo motor is used, the constant excitation voltage UJf is applied to both ends of the excitation winding, and the control voltage Uk is applied to both ends of the control winding. When voltage is applied to the stator windings, the servo motor will soon turn. The current passing through the excitation winding and the control winding creates a rotating magnetic field in the motor, and the rotation of the rotating magnetic field determines the steering of the motor when the voltage applied to either winding is reversed

When, the direction of the rotating magnetic field changes, and the direction of the motor also changes. In order to form a circular rotating magnetic field in the motor, it is required that there should be a 90 degree phase difference between the excitation voltage Uf and the control voltage UK.

1) Use the phase voltage and line voltage of the three-phase power supply to form a 90-degree phase shift

2) Use any line voltage of three-phase power supply

3) Adopt phase-shifting network

4) Series capacitors in the excited phase
