  GE IS230PCAAH1A MarkV系列 燃?xì)廨啓C(jī)模塊卡件

  GE IS230PCAAH1A 是一款專為 Mark VIe 系統設計的核心模擬模塊，廣泛應用于燃?xì)廨啓C(jī)控制系統中。該模塊由通用電氣（GE）開發，主要負責提供燃?xì)廨啓C(jī)運行所需的大部分模擬信號 I/O 功能。具體來說，IS230PCAAH1A 模塊能夠處理多種類型的輸入信號，包括熱電偶輸入、4-20mA 電流環 I/O、地震輸入、線性可變差動變壓器（LVDT）勵磁和輸入、脈沖率輸入以及伺服線圈輸出。這些功能使得該模塊在燃?xì)廨啓C(jī)的自動化控制和監測中發揮著關鍵作用

  IS230PCAAH1A 模塊支持單工、雙工和三重模塊冗余（TMR）系統配置，以適應不同的燃?xì)廨啓C(jī)控制需求。這種冗余設計不僅提高了系統的可靠性，還確保了在單個模塊故障時，系統仍能繼續運行。此外，該模塊的吞吐量允許在 40 毫秒內操作多達 9 個 21 插槽 VME 機架的 I/O 板，包括數據投票，從而提高了系統的實時性和效率。

  在實際應用中，IS230PCAAH1A 模塊通常與核心模擬終端板（TCAS 和 TCAT）配合使用，以提供更廣泛的模擬信號處理能力。例如，TCAT 提供了額外的輸入端子，使得模塊能夠處理更多的傳感器和執行器信號。這種模塊與終端板的集成極大地簡化了燃?xì)廨啓C(jī)系統內的模擬信號處理，提高了系統的整體性能。

在市場供應方面，IS230PCAAH1A 模塊在市場上有一定的庫存，部分供應商提供現貨服務，貨期為 1 天內發貨。這表明該模塊在工業自動化領域中具有較高的需求和應用價值。

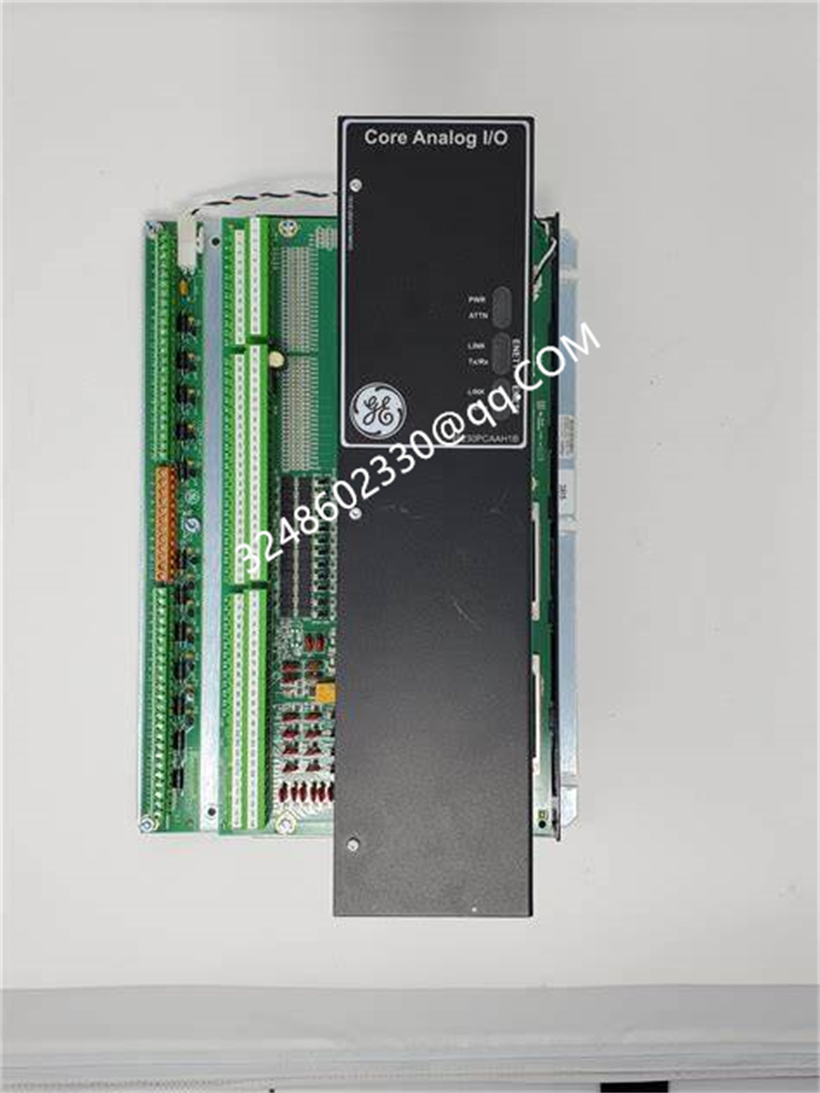

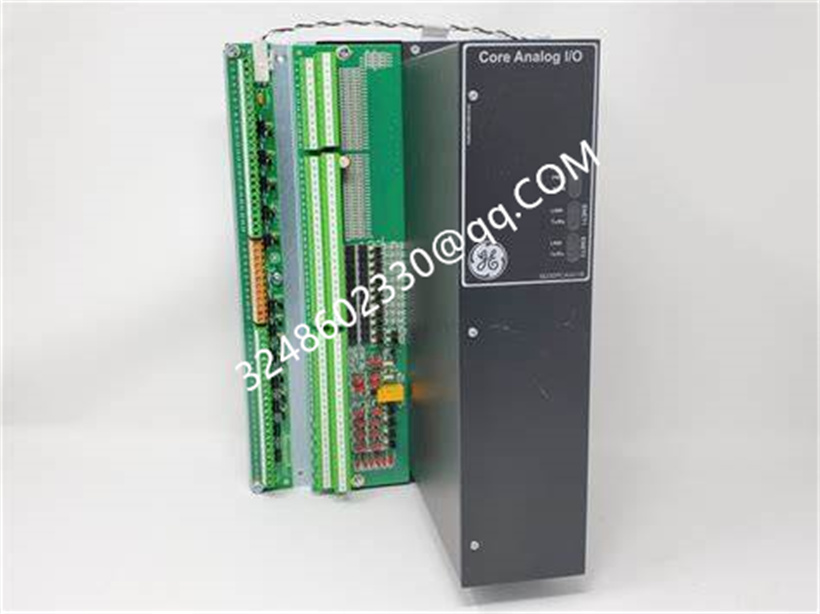

GE IS230PCAAH1A MarkV Series Gas Turbine Module Card

GE IS230PCAAH1A is a core simulation module designed specifically for Mark VIe systems, widely used in gas turbine control systems. This module was developed by General Electric (GE) and is primarily responsible for providing most of the analog signal I/O functions required for gas turbine operation. Specifically, the IS230PCAAH1A module is capable of processing various types of input signals, including thermocouple input, 4-20mA current loop I/O, seismic input, linear variable differential transformer (LVDT) excitation and input, pulse rate input, and servo coil output. These functions enable the module to play a critical role in the automation control and monitoring of gas turbines

The IS230PCAAH1A module supports simplex, duplex, and triple module redundancy (TMR) system configurations to adapt to different gas turbine control requirements. This redundant design not only improves the reliability of the system, but also ensures that the system can continue to operate in the event of a single module failure. In addition, the throughput of this module allows for the operation of up to 9 I/O boards of 21 slot VME racks, including data voting, within 40 milliseconds, thereby improving the real-time performance and efficiency of the system.

In practical applications, the IS230PCAAH1A module is typically used in conjunction with core analog terminal boards (TCAS and TCAT) to provide a wider range of analog signal processing capabilities. For example, TCAT provides additional input terminals, allowing the module to process more sensor and actuator signals. The integration of this module with the terminal board greatly simplifies the analog signal processing within the gas turbine system and improves the overall performance of the system.

From the specifications, the size of IS230PCAAH1A is 17.71 × 13.77 × 7.87 centimeters, with a working temperature range of -30 to 65 degrees Celsius, suitable for various industrial environments. In addition, the module also has high precision and reliability, using advanced microprocessor technology and digital signal processing technology, which can quickly respond to various changes and demands of gas turbines and achieve precise control.

In terms of market supply, the IS230PCAAH1A module has a certain inventory in the market, and some suppliers provide spot services with a delivery time of 1 day. This indicates that the module has high demand and application value in the field of industrial automation.

The GE IS230PCAAH1A module is a core simulation module designed specifically for Mark VIe systems, with multiple functions and high reliability, widely used in the automation control and monitoring of gas turbines.
