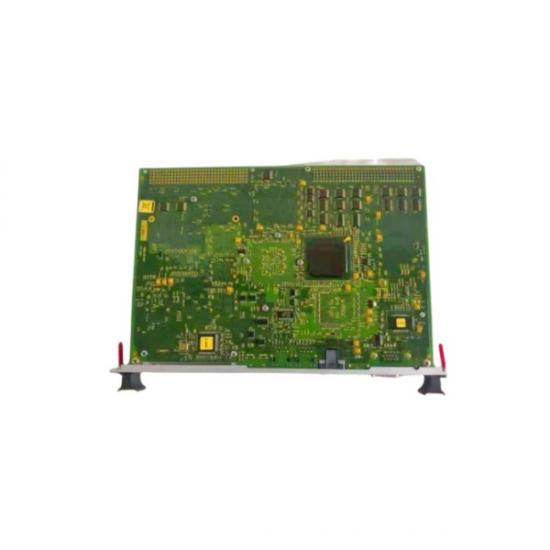

美國通用電氣（GE）的 IS215UCCAM03A 燃機卡主板 是專為 燃?xì)廨啓C(jī)控制系統 設計的核心控制單元，屬于 GE Mark VIe 系列分布式控制系統 的關鍵組件。該產品面向電力、石油天然氣等行業的重型燃機控制需求，提供高可靠性、實時性和功能安全性。
核心特性
高性能計算能力
采用多核處理器架構，支持復雜控制算法（如燃燒控制、振動監測、保護邏輯等）。
大容量內存（如 DDR3/DDR4）和高速存儲，確保實時數據處理能力。
冗余設計
支持雙機熱備或三取二冗余配置，確保單點故障時系統無擾動切換（切換時間 < 50ms）。
冗余電源、通信接口設計，提升系統可用性（> 99.99%）。
模塊化擴展
通過背板總線擴展 I/O 模塊（如模擬量、數字量、脈沖量輸入/輸出）。
支持專用接口模塊（如轉速測量、火焰檢測、振動監測）。
實時通信
集成 Ethernet/IP、Modbus TCP/IP、Profibus DP 等協議，支持與控制網絡無縫集成。
支持 GE Speedtronic 總線，實現與燃機執行機構、傳感器的快速通信。
功能安全認證
符合 IEC 61508 SIL 2/3 標準，適用于關鍵工藝段的安全控制。
通過 ATEX、IECEx 認證，支持防爆環境應用。
典型應用場景
電力行業
燃?xì)廨啓C(jī)發電機組控制（如 GE 9F、9H 系列燃機）。
電網同步、負荷調節、一次調頻。
石油天然氣
管道壓縮機燃機控制，確保穩定輸氣壓力。
FPSO（浮式生產儲卸裝置）動力系統集成。
備用電源系統
醫院、數據中心備用燃機組的快速啟動與保護。
工業驅動
大型離心機、泵組的燃機驅動控制。
技術規格
處理器：多核工業級 CPU（如 Intel Atom 或更高性能型號）。
內存：4GB DDR4（可擴展至 8GB）。
存儲：16GB eMMC + SD 卡擴展槽（用于固件升級）。
I/O 擴展：支持 8-32 個 I/O 模塊，涵蓋 4-20mA、0-10V、熱電偶/RTD 等信號。
通信接口：2× Gigabit Ethernet、2× RS-485、CAN 總線。
工作環境：溫度范圍 -40°C 至 70°C，防護等級 IP55。
用戶關注點
兼容性
與 GE Speedtronic 執行機構、傳感器無縫集成。
支持第三方設備（如 ABB、Siemens）通過標準協議接入。
維護性
支持熱插拔模塊，減少停機時間。
內置診斷工具（如振動分析、趨勢預測），支持遠程監控。
生命周期管理
GE 提供長期備件支持及技術升級路徑（如從 Mark VI 升級至 Mark VIe）。
安全功能
集成超速保護、火焰失效保護、振動跳閘等安全邏輯。
支持安全認證（如 SIL 3）的定制化配置。
競爭優勢
高可靠性：三重化冗余設計（TMR）確保關鍵控制無單點故障。
靈活性：支持定制化控制算法（如用戶自定義邏輯塊）。
開放性：兼容主流工業協議，支持混合控制網絡集成。
The IS215UCCAM03A gas turbine card motherboard from General Electric (GE) is a core control unit designed specifically for gas turbine control systems and is a key component of the GE Mark VIe series distributed control system. This product is designed to meet the control needs of heavy-duty gas turbines in industries such as electricity, oil and gas, providing high reliability, real-time performance, and functional safety.
core features
High performance computing capability
Adopting a multi-core processor architecture, supporting complex control algorithms such as combustion control, vibration monitoring, protection logic, etc.
Large capacity memory (such as DDR3/DDR4) and high-speed storage ensure real-time data processing capabilities.
Redundant design
Support dual machine hot standby or two out of three redundant configuration to ensure uninterrupted system switching in the event of a single point of failure (switching time<50ms).
Redundant power supply and communication interface design enhance system availability (>99.99%).
Modular expansion
Expand I/O modules (such as analog, digital, and pulse input/output) through the backplane bus.
Support dedicated interface modules (such as speed measurement, flame detection, vibration monitoring).
real-time communication
Integrate Ethernet/IP, Modbus TCP/IP, Profibus DP and other protocols, supporting seamless integration with control networks.
Support GE Speedtronic bus to achieve fast communication with gas turbine actuators and sensors.
Functional safety certification
Compliant with IEC 61508 SIL 2/3 standard, suitable for safety control in critical process sections.
Through ATEX and IECEx certification, it supports applications in explosion-proof environments.
Typical application scenarios
Power industry
Control of gas turbine generator sets (such as GE 9F, 9H series gas turbines).
Grid synchronization, load regulation, and primary frequency regulation.
Oil and Gas
Pipeline compressor gas turbine control ensures stable gas transmission pressure.
FPSO (Floating Production Storage and Offloading Unit) power system integration.
Backup power system
Fast start-up and protection of backup gas turbines in hospitals and data centers.
Industrial Drive
Control of gas turbine drive for large centrifuges and pump units.
technical specifications
Processor: Multi core industrial grade CPU (such as Intel Atom or higher performance models).
Memory: 4GB DDR4 (expandable up to 8GB).
Storage: 16GB eMMC+SD card expansion slot (for firmware upgrade).
I/O Expansion: Supports 8-32 I/O modules, covering signals such as 4-20mA, 0-10V, thermocouple/RTD, etc.
Communication interface: 2 x Gigabit Ethernet, 2 x RS-485, CAN bus.
Working environment: Temperature range -40 ° C to 70 ° C, protection level IP55.
User Focus Points
compatibility
Seamless integration with GE Speedtronic actuators and sensors.
Support third-party devices (such as ABB, Siemens) to connect through standard protocols.
Maintainability
Support hot swappable modules to reduce downtime.
Built in diagnostic tools (such as vibration analysis, trend prediction), supporting remote monitoring.
lifecycle management
GE provides long-term spare parts support and technology upgrade paths (such as upgrading from Mark VI to Mark VIe).
Safety function
Integrate safety logic such as overspeed protection, flame failure protection, and vibration tripping.
Support customized configuration for security certification (such as SIL 3).
competitive edge
High reliability: Triple redundancy design (TMR) ensures that critical controls have no single point of failure.
Flexibility: Supports customized control algorithms (such as user-defined logic blocks).
Openness: Compatible with mainstream industrial protocols and supports hybrid control network integration.
