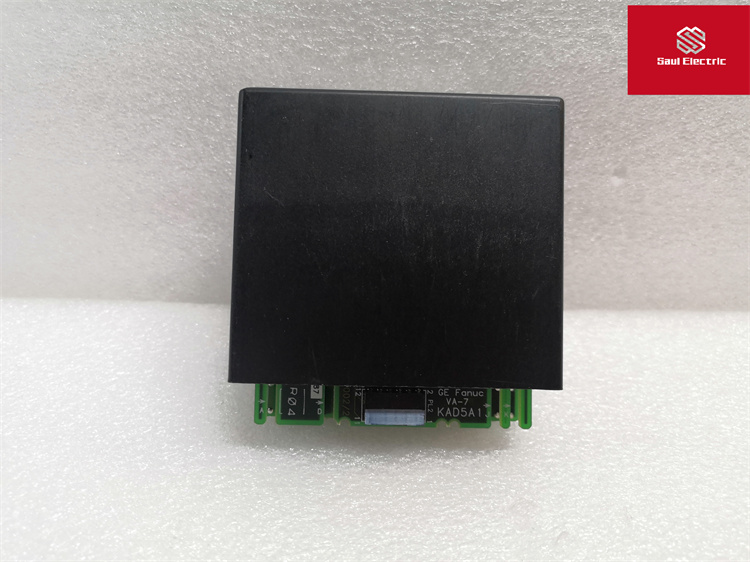

GE美國IC670ALG310模擬輸出模塊是一款高性能的工業自動化組件，專為生成模擬信號輸出而設計。以下是該模塊的詳細介紹：

一、基本信息

• 品牌：GE（通用電氣）
• 型號：IC670ALG310
• 類型：模擬輸出模塊

二、技術規格

1. 輸出通道：
• 8個不同的電壓輸出通道，可根據操作員的配置自動調整。
• 這些通道被容納在兩個隔離組中，每組4個，提供了高隔離性和靈活性。
2. 輸出范圍：
• 支持-10V至+10V的輸出電壓范圍，分辨率為14位。
• 具有超量程輸出功能，當輸出值超過模塊設定的最大或最小輸出設置的50毫伏時，模塊會將其視為超出范圍，并提供高達約10.25V的超量程輸出。
3. 配置與校準：
• 每個通道的縮放比例均可由用戶配置，以滿足不同的應用需求。
• 支持現場重新校準或重置到工廠校準，所有校準數據存儲在閃存中，便于維護和升級。
4. 通信與接口：
• 通常具有通信接口，允許與控制系統或其他設備進行數據交換和通信。
• 與總線接口單元（BIU）交換數據，使用兼容的手持式編程器進行配置和取/寫操作。

三、功能與特點

1. 增強的診斷功能：
• 可以輕松檢測超量程和欠量程情況、用戶斷電和未校準模塊等故障狀態。
• 當出現故障時，模塊會觸發警報功能，用戶可以針對不同的事件設置警報，以便及時響應和處理。
2. 報警功能：
• 當輸出值不符合模塊最大或最小輸出設置的50毫伏要求時，模塊將輸出值視為欠范圍和超范圍，并觸發報警。
3. 指示燈顯示：
• 亮起：表示正常運行。
• 間歇閃爍：表示模塊故障。
• OFF：表示無背板電源、無用戶電源或致命故障。
• 單個指示燈用于顯示模塊狀態：
4. 數據交換：
• 支持0到8個字的模擬輸出數據，0到3個字節的輸入數據用于模塊和通道狀態，0到2字節的輸出數據用于清除報警。
5. 設計與環境：
• 設計用于工業環境，具有高可靠性和抗振動性，以確保在惡劣條件下穩定運行。
• 體積小巧，便于安裝在狹小空間內。

四、應用領域

GE IC670ALG310模擬輸出模塊廣泛應用于工業控制系統、過程控制、數據采集、監測和反饋控制等領域。它通常用于控制各種設備和過程，如閥門、馬達等，以滿足工業自動化系統的需求。

The GE US IC670ALG310 Analog Output Module is a high-performance industrial automation component designed specifically for generating analog signal outputs. The following is a detailed introduction to the module:

1、 Basic Information

Brand: GE (General Electric)

Model: IC670ALG310

Type: Analog Output Module

2、 Technical specifications

Output channel:

8 different voltage output channels that can be automatically adjusted according to the operator's configuration.

These channels are accommodated in two isolation groups, each consisting of four, providing high isolation and flexibility.

Output range:

Supports an output voltage range of -10V to+10V with a resolution of 14 bits.

It has an over range output function. When the output value exceeds the maximum or minimum output setting of 50 millivolts set by the module, it will be considered as out of range and provide an over range output of up to approximately 10.25V.

Configuration and Calibration:

The scaling ratio of each channel can be configured by the user to meet different application requirements.

Support on-site recalibration or reset to factory calibration, with all calibration data stored in flash memory for easy maintenance and upgrades.

Communication and Interface:

Usually equipped with communication interfaces, allowing for data exchange and communication with control systems or other devices.

Exchange data with the Bus Interface Unit (BIU) and use a compatible handheld programmer for configuration and read/write operations.

3、 Function and Features

Enhanced diagnostic capabilities:

It can easily detect fault states such as over range and under range situations, user power outages, and uncalibrated modules.

When a fault occurs, the module will trigger an alarm function, and users can set alarms for different events for timely response and handling.

Alarm function:

When the output value does not meet the module's maximum or minimum output setting of 50 millivolts, the module considers the output value as under range or over range and triggers an alarm.

Indicator light display:

A single indicator light is used to display the status of the module:

Illuminated: indicates normal operation.

Intermittent flashing: indicates module malfunction.

OFF: Indicates no backplane power supply, no user power supply, or fatal malfunction.

Data exchange:

Supports analog output data of 0 to 8 words, input data of 0 to 3 bytes for module and channel status, and output data of 0 to 2 bytes for clearing alarms.

Design and Environment:

Designed for industrial environments, it has high reliability and vibration resistance to ensure stable operation under harsh conditions.

Compact in size, easy to install in small spaces.

4、 Application Fields

The GE IC670ALG310 analog output module is widely used in industrial control systems, process control, data acquisition, monitoring, and feedback control fields. It is commonly used to control various devices and processes, such as valves, motors, etc., to meet the needs of industrial automation systems.
