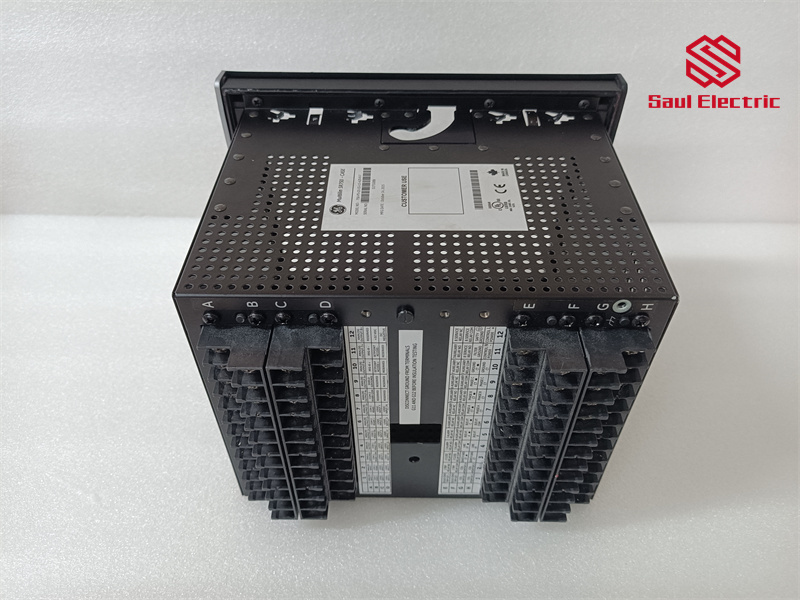

美國通用電氣（GE）的SR750-P5-G5-S5-HI-A20-R-E繼電器模塊是一款功能強大的工業自動化設備，專為配電系統和管理系統而設計。以下是對該繼電器模塊的詳細解析：

一、產品概述

• 品牌與型號：美國通用電氣（GE），SR750-P5-G5-S5-HI-A20-R-E
• 平臺基礎：基于GE Multilin P5平臺設計
• 主要功能：監測、控制、保護和管理配電系統，確保系統穩定運行

二、技術規格

• 輸入/輸出通道：
• 5個開關量輸入通道
• 5個開關量輸出通道
• 20個模擬輸入通道（用于高精度測量）
• 電源要求：
• 額定電壓：88-300VDC，70-265VAC
• 頻率范圍：48-62 Hz
• 相電流輸入：5安培
• 零序電流輸入：5安培
• 靈敏接地電流輸入：5安培
• 模擬輸出：八個4-20 mA模擬輸出

三、功能與特性

1. 監測功能：
• 能夠監測發電機的各項參數，包括電壓、電流、頻率等，確保及時發現并解決潛在問題。
• 顯示屏提供清晰簡明的信息，包括“斷路器閉合”LED指示燈，確保電氣系統正常運行。
2. 保護功能：
• 提供過流保護、過壓保護、欠壓保護等多種保護功能，確保負載安全運行。
• 具有自動總線傳輸和同步檢查功能，反向電源保護和受限接地故障保護功能。
3. 通信與接口：
• 配備多個網絡接口，包括以太網、RS232、RS485和RS422端口，支持Modbus RTU、TCP/IP和DNP 3.0等協議。
• 可與其他設備、監控系統或控制系統進行數據交換，實現更高級別的系統集成和遠程監控。
4. 控制與操作：
• 提供可編程設定點菜單導航，用戶可通過鍵盤瀏覽現場菜單，直接訪問計量、狀態、維護、跳閘計數器、電弧電流等設置。
• 支持本地和遠程控制，后端口允許連接到分布式控制系統、PLC或SCADA系統。
5. 安全性：
• 提供硬件和密碼安全功能，確保未經授權的更改被鎖定，提高系統的安全性。

四、應用場景

該繼電器模塊廣泛應用于電力、石化、冶金等領域，特別適用于需要高可靠性和精確監測的配電系統。它不僅能夠提高系統的穩定性和安全性，還能通過遠程監控和自動化控制降低運維成本。

The SR750-P5-G5-S5-HI-A20-R-E relay module from General Electric (GE) is a powerful industrial automation device designed specifically for power distribution and management systems. The following is a detailed analysis of the relay module:

1、 Product Overview

Brand and Model: General Electric (GE), USA, SR750-P5-G5-S5-HI-A20-R-E

Platform foundation: Designed based on GE Multilin P5 platform

Main function: Monitor, control, protect, and manage the power distribution system to ensure stable operation of the system

2、 Technical specifications

Input/output channels:

5 switch input channels

5 switch output channels

20 analog input channels (for high-precision measurement)

Power requirements:

Rated voltage: 88-300VDC, 70-265VAC

Frequency range: 48-62 Hz

Phase current input: 5 amperes

Zero sequence current input: 5 amperes

Sensitive grounding current input: 5 amperes

Analog output: Eight 4-20 mA analog outputs

3、 Function and Features

Monitoring function:

Capable of monitoring various parameters of the generator, including voltage, current, frequency, etc., to ensure timely detection and resolution of potential problems.

The display screen provides clear and concise information, including the "circuit breaker closed" LED indicator light, to ensure the normal operation of the electrical system.

Protection function:

Provide multiple protection functions such as overcurrent protection, overvoltage protection, and undervoltage protection to ensure safe operation of the load.

It has automatic bus transmission and synchronization check functions, reverse power protection, and limited ground fault protection functions.

Communication and Interface:

Equipped with multiple network interfaces, including Ethernet, RS232, RS485, and RS422 ports, supporting protocols such as Modbus RTU, TCP/IP, and DNP 3.0.

It can exchange data with other devices, monitoring systems, or control systems to achieve higher-level system integration and remote monitoring.

Control and operation:

Provide programmable setpoint menu navigation, allowing users to browse on-site menus through the keyboard and directly access settings such as metering, status, maintenance, trip counter, arc current, etc.

Supports local and remote control, and the rear port allows connection to distributed control systems, PLCs, or SCADA systems.

Security:

Provide hardware and password security features to ensure unauthorized changes are locked and enhance system security.

4、 Application scenarios

This relay module is widely used in fields such as power, petrochemicals, metallurgy, etc., and is particularly suitable for distribution systems that require high reliability and precise monitoring. It can not only improve the stability and security of the system, but also reduce operation and maintenance costs through remote monitoring and automated control.
