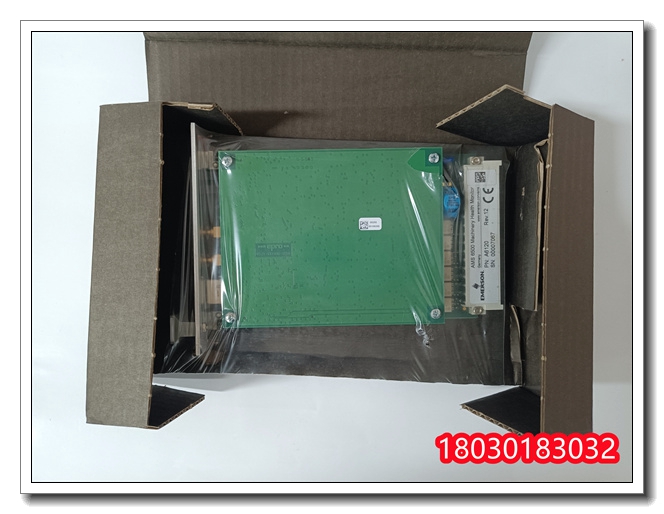

EMERSON A6120 艾默生穩壓器模塊

一、產品概述

EMERSON A6120是一款艾默生公司推出的穩壓器模塊，具有出色的性能和穩定性。它基于先進的電路設計，能夠提供穩定的電壓輸出，確保電子設備在各種工作環境下都能穩定運行。

二、主要特點

1. 寬電壓輸入范圍：A6120支持從2.5V到6.0V的寬電壓輸入范圍，適應性強，能夠滿足不同電子設備的需求。
2. 高精度輸出電壓：該模塊具有高精度輸出電壓的特點，輸出電壓可選范圍從1.0V到5.0V，且可以通過內部調整電壓預設固定值，如1V、1.2V、1.3V、1.5V、1.8V、2.5V、2.7V、2.8V、2.85V、3.0V、3.2V、3.3V、5V等，或者通過輸出范圍從1V到5V，增量為50mV進行靈活調整。
3. 高電流輸出能力：A6120能夠提供高達1A的負載電流，滿足大多數電子設備的供電需求。
4. 熱防護功能：該模塊內置熱防護和熱過載保護功能，當總功耗超過TJ=165°C時，OTP電路會啟動熱關機功能并關閉傳遞元件，允許IC冷卻。在IC的結溫度冷卻后，OTP電路會再次接通通路元件。這種設計旨在防止因過熱導致的設備損壞。
5. 內置折返電流保護：當輸出電壓下降時，限位保護電路將減小電流值，避免設備損壞。當輸出對地短路時，電流限制降低到250mA，提供額外的保護。
6. 高可靠性：A6120符合國際標準和規范，如API 670和API 618，確保其可靠性和性能。

三、技術規格

• 輸入電壓范圍：2.5V至6.0V
• 輸出電壓范圍：1.0V至5.0V
• 輸出電流：最高1A
• 熱關機溫度：TJ=165°C
• 短路電流限制：250mA

四、應用場景

EMERSON A6120穩壓器模塊適用于各種需要穩定電壓輸出的電子設備，特別是在工業自動化、機器人控制、醫療設備等領域具有廣泛的應用。

EMERSON A6120 Emerson Voltage Regulator module

I. Product overview

The EMERSON A6120 is a voltage regulator module from Emerson that offers outstanding performance and stability. It is based on advanced circuit design and can provide stable voltage output to ensure the stable operation of electronic devices in a variety of operating environments.

Two, the main characteristics

Wide voltage input range: The A6120 supports a wide voltage input range from 2.5V to 6.0V, which is adaptable and can meet the needs of different electronic devices.

High precision output voltage: The module has the characteristics of high precision output voltage, the output voltage can be selected from 1.0V to 5.0V, and can be adjusted by internal voltage preset fixed values, such as 1V, 1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 2.7V, 2.8V, 2.85V, 3.0V, 3.2V, 3.3V, 5V, etc. Or flexibly adjust by output ranging from 1V to 5V in increments of 50mV.

High current output capability: The A6120 is capable of delivering up to 1A load current, meeting the power needs of most electronic devices.

Thermal protection: The module has built-in thermal protection and thermal overload protection, and when the total power consumption exceeds TJ=165°C, the OTP circuit activates the thermal shutdown function and shuts down the transfer element, allowing the IC to cool down. After the junction temperature of the IC is cooled, the OTP circuit switches on the channel element again. This design is designed to prevent equipment damage due to overheating.

Built-in reentry current protection: When the output voltage drops, the limit protection circuit will reduce the current value to avoid equipment damage. When the output is short-circuited to ground, the current limit is reduced to 250mA, providing additional protection.

High reliability: The A6120 complies with international standards and specifications such as API 670 and API 618, ensuring its reliability and performance.

3. Technical specifications

Input voltage range: 2.5V to 6.0V

Output voltage range: 1.0V to 5.0V

Output current: up to 1A

Hot shutdown temperature: TJ=165°C

Short circuit current limit: 250mA

Iv. Application scenarios

EMERSON A6120 voltage regulator module is suitable for a wide range of electronic devices requiring stable voltage output, especially in industrial automation, robot control, medical equipment and other fields.
