EMERSON MMS6120 模塊
MMS6120 是艾默生（Emerson）旗下德國 EPRO 品牌推出的一款雙通道軸承振動監測器，常用于旋轉機械的振動、
位移或速度信號的連續監測與保護。該模塊結構緊湊、性能穩定，廣泛應用于汽輪機、壓縮機、泵、風機等關鍵設備的狀態監測系統中。
堅固耐用：模塊化鋁殼設計，抗振動、抗沖擊，工作溫度 -20 °C … +70 °C，適應復雜工業環境。
重量 約 0.3 kg
風機健康管理：結合趨勢分析軟件，預測軸承壽命，指導維護計劃。

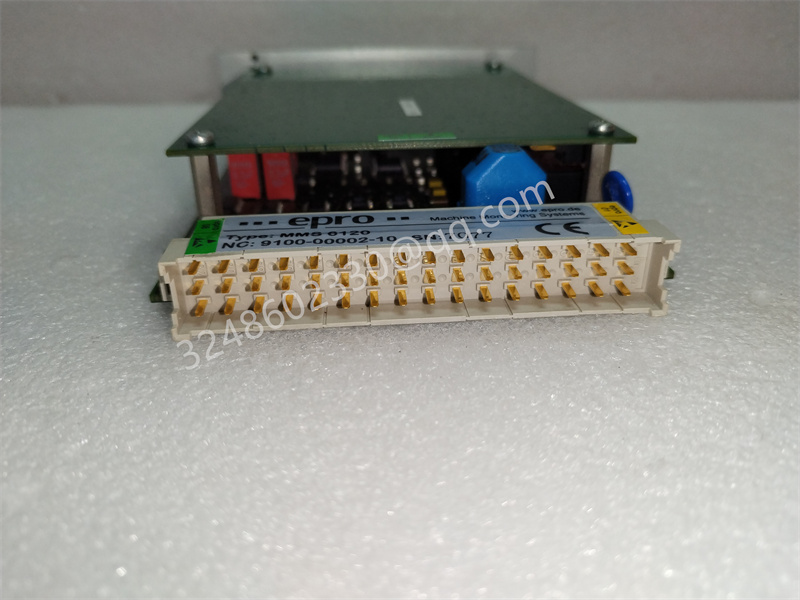

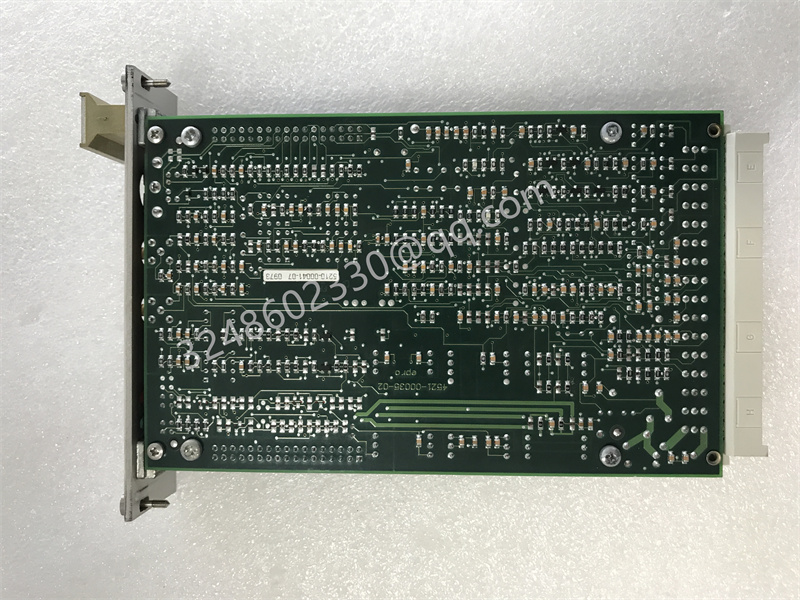

EMERSON MMS6120 module
Product Overview:
MMS6120 is a dual channel bearing vibration monitor launched by Emerson's German EPRO brand, commonly used for vibration of rotating machinery
Continuous monitoring and protection of displacement or velocity signals. This module has a compact structure and stable performance, and is widely used in the status monitoring system of key equipment such as steam turbines, compressors, pumps, and fans.
Main features and advantages
Dual channel monitoring: Two sets of vibration or displacement sensors can be connected simultaneously, supporting parallel analysis and improving monitoring efficiency.
Industrial grade accuracy: using 16 bit ADC, high measurement accuracy, good repeatability, suitable for micrometer level vibration detection.
Broadband response: The frequency range covers 0.5 Hz-10 kHz, taking into account both low-frequency shaft vibration and high-frequency bearing fault characteristics.
Multiple outputs: Provides 4-20 mA, 0-10 V, relay alarm, and Modbus/PROFIBUS-DP communication interface for easy access to DCS or PLC.
On site programmability: Parameter settings such as range, alarm points, and filters can be completed through the front panel buttons or software tools without the need for disassembly.
Durable and sturdy: Modular aluminum shell design, resistant to vibration and impact, working temperature -20 ° C...+70 ° C, suitable for complex industrial environments.
technical specifications
Model MMS6120
Number of channels 2
Input type IEPE/ICP acceleration, velocity, or displacement sensor
Measurement range 0-50 mm/s (speed) or 0-500 μ m (displacement)
Frequency range 0.5 Hz -10 kHz
Analog output 4-20 mA/0-10 V
Digital interfaces RS-485 Modbus RTU, PROFIBUS-DP
Relay output 2-channel programmable alarm relay
Working power supply 24 V DC ± 20%
Working temperature -20 ° C...+70 ° C
Storage temperature -40 ° C...+85 ° C
Size 120mm × 75mm × 45mm
Weight approximately 0.3 kg
Typical applications
Turbine vibration monitoring: installed on the bearing seat, real-time collection of shaft vibration and tile vibration, triggering interlock shutdown.
Compressor protection: Monitor early failures of rolling bearings to prevent shaft holding accidents.
Remote monitoring of pump station: Upload vibration data to SCADA through Modbus to achieve unmanned operation.
Fan Health Management: Combining trend analysis software to predict bearing life and guide maintenance plans.
Related products
MMS6312: Portable vibration collector, suitable for on-site inspection and temporary monitoring.
AMS 6500 ATG: Emerson AMS Mechanical Health Platform, which can be networked with MMS612 for centralized diagnosis.
EPRO PR6423: Equipped with eddy current sensors for shaft displacement measurement, forming a complete monitoring circuit with MMS612.
MMS6120 provides an economical and reliable online vibration monitoring solution for rotating equipment with high precision, dual channels, and rich interfaces.
