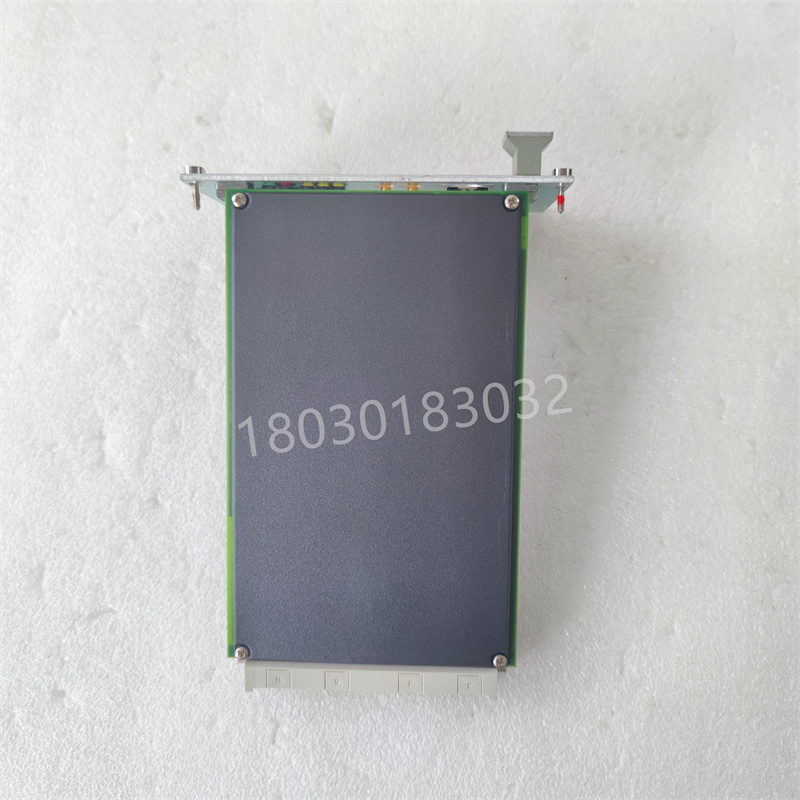

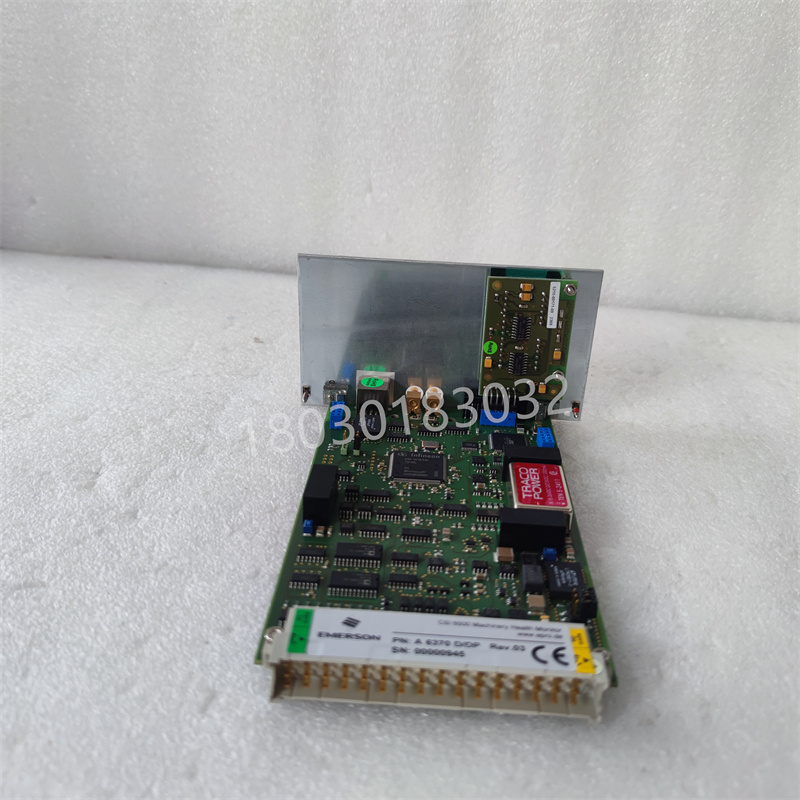

Emerson A6370D/DP 超速保護監測模塊
產品概述
Emerson A6370D/DP 是一款高性能的超速保護監測模塊，廣泛應用于工業自動化和控制系統中。它是 Emerson AMS 6300 SIS 超速保護系統的重要組成部分，主要用于監測旋轉機械的轉速，一旦檢測到超速情況，就會發出報警并采取聯鎖措施，以防止設備損壞。
技術規格
模塊化設計：支持多種輸入和輸出模塊，可靈活配置和擴展。
尺寸：119×94mm，適用于 19 英寸機架（84HP 寬度，3RU 高度）。
輸入輸出能力：
支持數字量輸入/輸出通道擴展，可連接各種傳感器和執行器。
兼容渦流傳感器、霍爾元件傳感器和磁性（VR）傳感器。
工作性能：
高精度信號處理能力，支持模擬量信號輸入（如溫度、壓力、流量等），并轉換為數字信號。
實時性強，能夠快速響應輸入信號并實時控制輸出信號。
電氣參數：
輸出頻率：60Hz。
工作電壓：標準工業電壓范圍（具體電壓值視模塊配置而定）。
防護等級：IP20（機架安裝時），工作溫度范圍為 -20°C 至 +65°C。
測量范圍：0 rpm 至 30,000 rpm。
測量精度：±0.5%。
響應時間：<10 ms。
輸出接口：繼電器、RS-485。
電源：24 VDC。
功能特點
高可靠性：采用工業級設計，適用于惡劣環境，具備短路保護、電隔離、反極性保護等功能。
多功能性：支持多種傳感器輸入，滿足不同監測需求。
易于集成：模塊設計緊湊，易于集成到現有系統中。
自診斷功能：能夠?qū)崟r監測模塊狀態，及時報告故障信息。
多種通信接口：支持多種通信協議，如 Profibus DP，方便與上位機系統集成。
應用領域
石油化工：監測和控制生產過程中的關鍵設備，確保生產安全。
電力：監測發電機組的轉速，防止超速事故。
機械制造：監測和控制機械設備的轉速，確保設備正常運行。
其他領域：如冶金、造紙、紡織等工業領域。
注意事項
安裝環境：應符合產品手冊的要求。
配置：需要通過相應的軟件進行配置。
維護：定期檢查設備，確保其處于良好狀態。
Emerson A6370D/DP overspeed protection monitoring module product overview Emerson A6370D/DP is a high-performance overspeed protection monitoring module widely used in industrial automation and control systems. It is an important component of the Emerson AMS 6300 SIS overspeed protection system, mainly used to monitor the speed of rotating machinery. Once overspeed is detected, an alarm will be issued and interlocking measures will be taken to prevent equipment damage.
technical specifications
Modular design: supports multiple input and output modules, and can be flexibly configured and expanded.
Size: 119 × 94mm, suitable for 19 inch rack (84HP width, 3RU height).
Input/output capability:
Support digital input/output channel expansion, capable of connecting various sensors and actuators.
Compatible with eddy current sensors, Hall element sensors, and magnetic (VR) sensors.
Work performance:
High precision signal processing capability, supporting analog signal input (such as temperature, pressure, flow rate, etc.) and converting it into digital signals.
Strong real-time capability, able to quickly respond to input signals and control output signals in real time.
Electrical parameters:
Output frequency: 60Hz.
Working voltage: Standard industrial voltage range (specific voltage values depend on module configuration).
Protection level: IP20 (during rack installation), operating temperature range is -20 ° C to+65 ° C.
Measurement range: 0 rpm to 30000 rpm.
Measurement accuracy: ± 0.5%.
Response time:<10 ms.
Output interface: relay RS-485。
Power supply: 24 VDC.
Functional Features
High reliability: Adopting industrial grade design, suitable for harsh environments, with functions such as short circuit protection, electrical isolation, and reverse polarity protection.
Multifunctionality: Supports multiple sensor inputs to meet different monitoring needs.
Easy to integrate: The module design is compact and easy to integrate into existing systems.
Self diagnostic function: capable of real-time monitoring of module status and timely reporting of fault information.
Multiple communication interfaces: Supports multiple communication protocols, such as Profibus DP, for easy integration with upper computer systems.
application area
Petrochemical industry: monitoring and controlling key equipment in the production process to ensure production safety.
Electricity: Monitor the speed of the generator set to prevent overspeed accidents.
Mechanical manufacturing: Monitor and control the rotational speed of mechanical equipment to ensure its normal operation.
Other fields: such as metallurgy, papermaking, textiles and other industrial sectors.
precautions
Installation environment: It should comply with the requirements of the product manual.
Configuration: It needs to be configured through the corresponding software.
Maintenance: Regularly inspect equipment to ensure it is in good condition.
