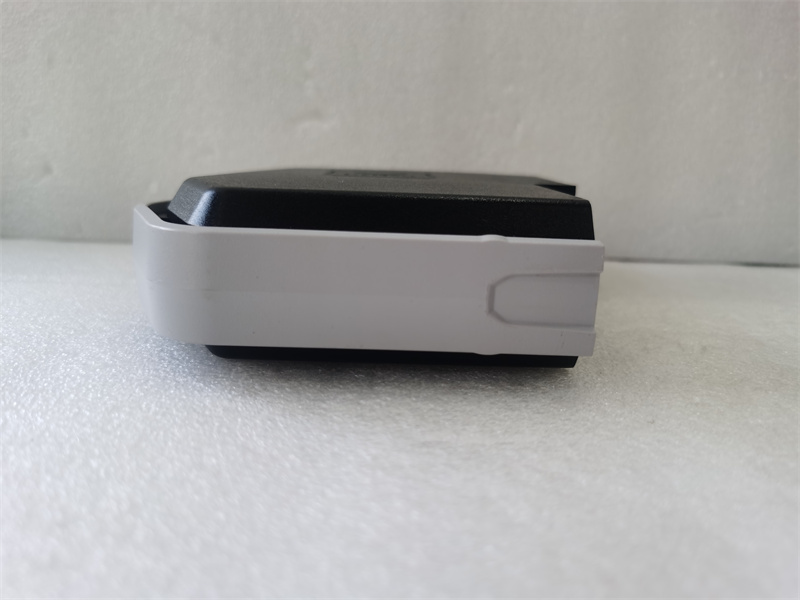

EMERSON SE4022 KJ3243X1-BK1 Input/Output Controller:
EMERSON's SE4022 KJ3243X1-BK1 is a high-performance input-output controller designed specifically for industrial automation control scenarios. The following analysis is conducted from three dimensions: technical specifications, functional features, and typical applications:
1、 Technical specifications
core performance
Processor architecture: Adopting a 32-bit efficient processor, supporting real-time operating systems (such as DeltaV or AMS Suite), suitable for complex control algorithms (such as PID regulation and logical operations).
Memory configuration: Provides 64KB internal flash and 4KB data flash, supports program and data partition storage, and meets multitasking requirements.
Electrical characteristics
Input voltage: Supports a wide voltage design of 24Vdc/120Vac, suitable for complex power supply environments in industrial sites.
Power consumption: Typical value of 1.8W, low-power design reduces long-term operating costs.
physical interface
Communication protocol: Supports mainstream protocols such as Modbus RTU/TCP, EtherNet/IP, etc., making it easy to integrate with upper computers (such as DeltaV systems) or third-party devices.
Scalability: Provides 18 GPIO, 4 high current driver pins, and supports digital/analog input/output expansion modules.
Environmental adaptability
Protection level: IP30 protection, suitable for high temperature (0-55 ℃) and high humidity (5% -95% RH) industrial scenarios.
Certification standards: Compliant with CE, UL, ATEX Zone 2 and other specifications, suitable for hazardous areas such as petroleum and chemical industries.
2、 Functional Features
Control Algorithm and Logic
Real time control: Supports millisecond level response, suitable for scenarios such as motion control and process control.
Custom programming: Through the EMERSON Control Builder tool, users can develop exclusive control logic (such as device start stop sequence, safety interlock).
Signal Processing and Diagnosis
Signal conditioning: Built in digital filter to eliminate high-frequency noise interference and improve signal stability.
Status monitoring: Real time feedback of module health status through LED indicator lights (fault/F, warning/W, channel status).
Security and redundancy
Overload protection: Supports current limiting function to prevent sensor power overload.
Redundant design: It can form a redundant system with other SE4022 modules to enhance control reliability.
3、 Typical application scenarios
Power System
Generator set control: Monitor speed and vibration parameters, execute overspeed protection or load distribution logic.
Substation automation: integrated into SCADA system to achieve remote monitoring of circuit breakers and transformers.
Oil and Gas and Chemical Industry
Compressor control: Adjust the outlet pressure through PID algorithm to optimize energy efficiency.
Safety interlock: Trigger ESD (emergency stop system) in emergency conditions to prevent equipment damage.
Water Treatment and Environmental Protection
Pump group control: Automatically adjust pump speed based on water level or flow signal to achieve energy-saving operation.
Valve management: Control the opening of regulating valves to ensure stable water quality or process parameters.
Intelligent manufacturing
Production line integration: As a PLC master station, it coordinates the actions of robots, conveyors, and other equipment.
Data traceability: Record production parameters (such as temperature and pressure) to support quality traceability analysis.
4、 Selection and integration suggestions
Compatibility verification
Ensure that the module firmware version is compatible with the upper computer software (such as DeltaV).
Check if the communication protocol matches the existing network architecture (such as Modbus TCP or EtherNet/IP).
Expand configuration
According to the I/O requirements, select digital/analog expansion modules (such as EMERSON DO880 output module).
Integrate HMI (Human Machine Interface) to achieve localized operation and status visualization.
Maintenance and Upgrade
Utilize EMERSON AMS Device Manager for online diagnostics to reduce downtime.
Remote firmware updates via Ethernet to enhance system security and functionality scalability
