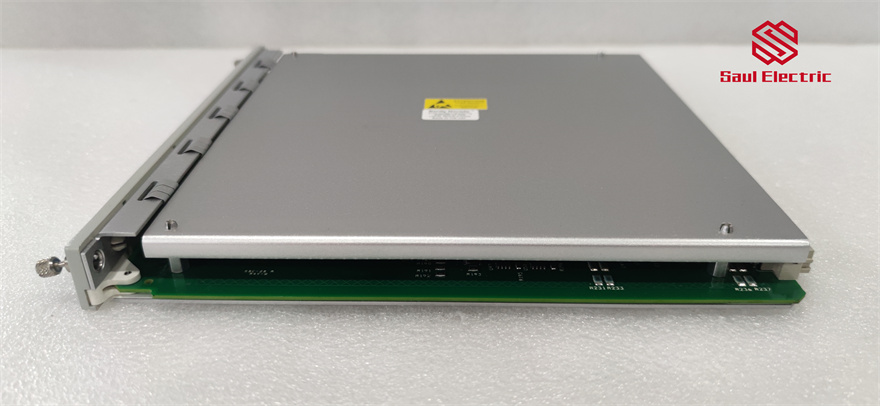

BENTLY本特利3500/33 149986-01是一款專為汽輪機監測系統設計的繼電器卡件前面板模塊。以下是該模塊的一些關鍵特性：

型號：3500/33 149986-01，屬于Bently Nevada品牌 。

功能：作為汽輪機監視系統的組成部分，提供16個繼電器的輸出量，每個輸出可以獨立編程執行所需的表決邏輯 。

報警驅動邏輯：繼電器模塊具備“報警驅動邏輯”，使用“與門”和“或門”邏輯編程，可以利用框架中的任何監測器通道或任何監測器通道的組合所提供的報警輸入(警告或危險)、非OK或獨立PPL 。

應用：廣泛應用于電力、石化、制造業等工業領域，用于監測旋轉設備的運行狀況 。

技術規格：輸入功耗典型值為5.8瓦，尺寸為241毫米x 24.4毫米x 242毫米，重量為0.7千克（1.6磅） 。

物理特性：具備前面板LED指示燈，包括OK LED、TX/RX LED和CH報警LED，用于指示模塊的工作狀態和報警狀態 。

繼電器類型：采用單極雙擲（SPDT）繼電器，具有環氧密封和標準安裝的弧抑制器，繼電器接觸壽命為10,000個周期 。

電氣規格：對于標準系統，最小切換電流為100 mA @ 5 Vdc，最大切換電流可達3 A，最大切換功率為70 W @ 24 Vdc，最大切換電壓為125 Vdc 。

備件：包括149986-01備用16通道繼電器控制模塊，以及其他相關備件和配件 。

The BENTLY Bentley 3500/33 149986-01 is a relay card front panel module specially designed for steam turbine monitoring systems. Here are some of the key features of the module:

Model: 3500/33 149986-01, owned by Bently Nevada brand.

Function: As part of the turbine monitoring system, the output of 16 relays is provided, each output can be independently programmed to perform the required voting logic.

Alarm driver logic: The relay module has "alarm driver logic", programmed using "and gate" and "or gate" logic, and can take advantage of alarm inputs (warning or hazard), non-OK, or stand-alone PPL provided by any monitor channel in the frame or any combination of monitor channels.

Application: Widely used in power, petrochemical, manufacturing and other industrial fields, for monitoring the operation of rotating equipment.

Specifications: Typical input power consumption is 5.8 watts, dimensions are 241 mm x 24.4 mm x 242 mm, and weight is 0.7 kg (1.6 lb).

Physical characteristics: Front panel LED indicators, including OK LED, TX/RX LED and CH alarm LED, are used to indicate the working status and alarm status of the module.

Relay type: Single pole double throw (SPDT) relay with epoxy seal and standard mounted arc suppressor, relay contact life of 10,000 cycles.

Electrical specifications: For standard systems, the minimum switching current is 100 mA@5 Vdc, the maximum switching current is up to 3 A, the maximum switching power is 70 W@24 Vdc, and the maximum switching voltage is 125 Vdc.

Spare parts: Includes 149986-01 spare 16-channel relay control module, and other related spare parts and accessories.
