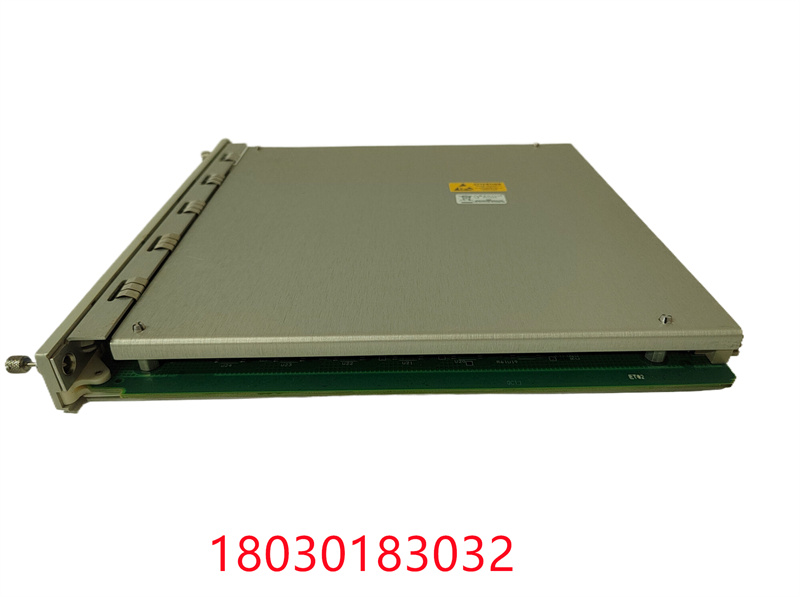

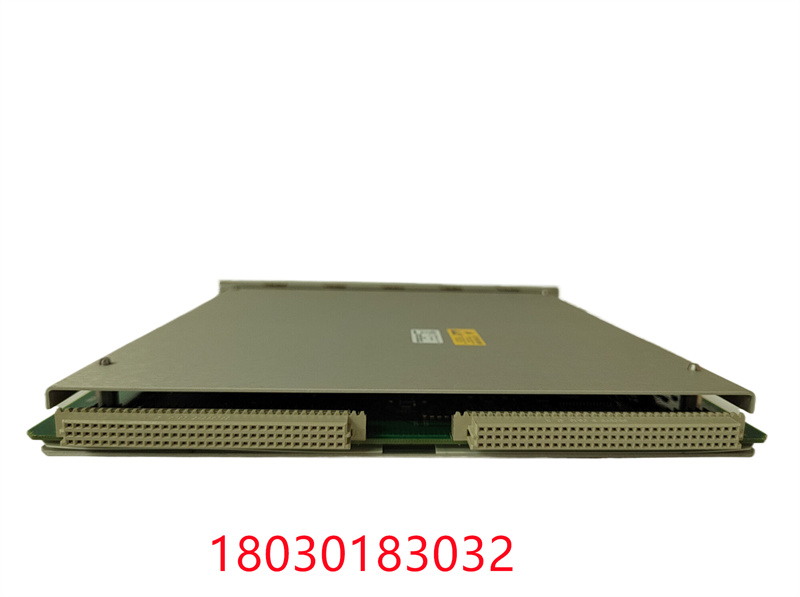

BENTEY 3500/60 是一種溫度檢測卡
BENTEY 3500/60是一種溫度檢測卡。
BENTELY 3500/60原裝產品提供六個溫度監控通道，可以接受電阻溫度檢測器（RTD）和熱電偶（TC）溫度輸入，用戶使用3500機架配置軟件對模塊進行編程以執行RTD或TC溫度測量，不同的I/O模塊可用于RTD/TC非隔離或TC隔離版本，用戶可以配置RTD/TC非隔離版本以接受TC或RTD，或TC和RTD輸入的混合，TC隔離版本提供250 Vdc的通道間隔離以防止外部干擾
可以監測溫度或溫差，通常用于符合API670的徑向軸承或推力軸承金屬溫度，但也可用于關鍵過程溫度，例如壓縮機吸氣和排氣溫度、蒸汽溫度、電機溫度定子溫度等。
BENTELY 3500/60原裝產品提供六個溫度監控通道，可以接受電阻溫度檢測器（RTD）和熱電偶（TC）溫度輸入，用戶使用3500機架配置軟件對模塊進行編程以執行RTD或TC溫度測量，不同的I/O模塊可用于RTD/TC非隔離或TC隔離版本，用戶可以配置RTD/TC非隔離版本以接受TC或RTD，或TC和RTD輸入的混合，TC隔離版本提供250 Vdc的通道間隔離以防止外部干擾
BENTEY 3500/60 is a temperature detection card.
The BENTELY 3500/60 original product provides six temperature monitoring channels that can accept temperature inputs from resistance temperature detectors (RTDs) and thermocouples (TC). Users use 3500 rack configuration software to program the modules to perform RTD or TC temperature measurements. Different I/O modules can be used for non isolated or TC isolated versions of RTD/TC. Users can configure non isolated versions of RTD/TC to accept TC or RTD, or a mixture of TC and RTD inputs, The TC isolation version provides 250 Vdc channel to channel isolation to prevent external interference
It can monitor temperature or temperature difference, usually used for radial or thrust bearing metal temperature in accordance with API670, but can also be used for critical process temperatures, such as compressor suction and exhaust temperature, steam temperature, motor temperature stator temperature, etc.
The BENTELY 3500/60 original product provides six temperature monitoring channels that can accept temperature inputs from resistance temperature detectors (RTDs) and thermocouples (TC). Users use 3500 rack configuration software to program the modules to perform RTD or TC temperature measurements. Different I/O modules can be used for non isolated or TC isolated versions of RTD/TC. Users can configure non isolated versions of RTD/TC to accept TC or RTD, or a mixture of TC and RTD inputs, The TC isolation version provides 250 Vdc channel to channel isolation to prevent external interference
