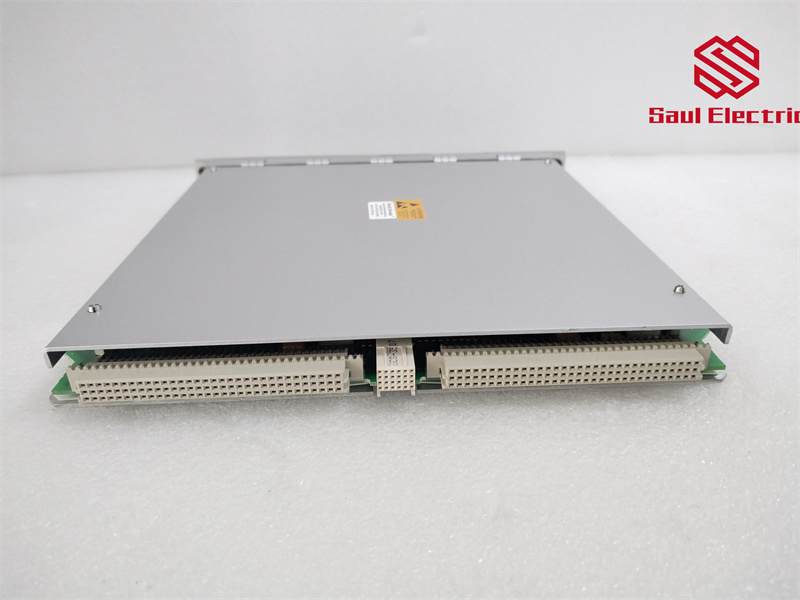

BENTLY（本特利）3500/22M TDI瞬態數據接口模塊是一款專為工業監測設計的設備：
一、產品概述
型號：3500/22M
品牌：BENTLY（本特利·內華達，現為GE Detection & Measurement的一部分）
類型：瞬態數據接口（TDI）模塊
二、主要功能
數據交換：3500/22M TDI模塊是3500監測系統和System 1機械管理軟件之間的接口，能夠連續收集穩態和瞬態動態（波形）數據，并通過以太網鏈路將這些數據傳送到主機軟件，以便進行遠程監控和分析。
保護系統組態：支持本特利內華達專有通訊協議，用于組態框架和檢索機械信息。
三、技術特點
數據處理能力強：3500/22M配備了更強大的處理器和內存，可以處理更多的數據和更復雜的控制算法，提高了控制精度和響應速度。
通信接口豐富：支持多種不同的通信接口，如以太網、串口、CAN總線等，可以方便地與各種設備進行通信和控制。
編程方式靈活：支持多種編程語言和開發環境，如C++、Java、Python等，方便用戶進行定制和開發。
安全功能完善：配備了故障檢測、安全鎖定、加密通信等安全功能，提高了控制系統的安全性和可靠性。
操作和維護便捷：配備了友好的操作界面和菜單設計，方便用戶進行監控和調整。同時，還支持遠程維護和診斷功能，可以方便地進行故障排除和維護。
四、應用場景
振動監測：用于監測工業設備（如發動機、泵、風機）的振動情況，預測設備的健康狀況，預防設備故障。
機械設備健康監測：通過監測機械設備的瞬態數據，評估設備的工作狀態，及時發現并解決潛在問題，提高設備的可靠性和壽命。
瞬態事件記錄：記錄和分析設備發生的瞬態事件，如突發的電壓變化、沖擊或其他不尋常的工作條件，有助于了解設備運行過程中的不尋常情況以及故障診斷。
電力系統監測：監測電力系統中的電流、電壓和頻率等參數，確保電力系統的穩定運行。
工廠自動化：集成到工廠自動化系統中，實時監測生產設備的運行狀況，提高生產效率和質量。
五、產品優勢
高精度數據采集：能夠捕捉高分辨率的瞬態數據，為機械設備的運行狀態分析和故障診斷提供關鍵信息。
實時數據傳輸：通過以太網鏈路實現數據的實時傳輸，確保數據的及時性和準確性。
模塊化設計：便于安裝、配置和維護，降低了系統的復雜性和成本。
BENTLY 3500/22M TDI Transient Data Interface Module is a device designed specifically for industrial monitoring:
1、 Product Overview
Model: 3500/22M
Brand: BENTLY (Bentley Nevada, now part of GE Detection&Measurement)
Type: Transient Data Interface (TDI) module
2、 Main functions
Data exchange: The 3500/22M TDI module is the interface between the 3500 monitoring system and System 1 mechanical management software, capable of continuously collecting steady-state and transient dynamic (waveform) data, and transmitting these data to the host software through an Ethernet link for remote monitoring and analysis.
Protection system configuration: Supports Bentley Nevada proprietary communication protocol for configuring frameworks and retrieving mechanical information.
3、 Technical features
Strong data processing capability: The 3500/22M is equipped with a more powerful processor and memory, which can handle more data and more complex control algorithms, improving control accuracy and response speed.
Rich communication interfaces: Supports multiple different communication interfaces, such as Ethernet, serial port, CAN bus, etc., which can easily communicate and control with various devices.
Flexible programming approach: Supports multiple programming languages and development environments, such as C++, Java, Python, etc., making it convenient for users to customize and develop.
Complete security features: equipped with fault detection, security locking, encrypted communication and other security functions, improving the security and reliability of the control system.
Easy operation and maintenance: Equipped with a user-friendly interface and menu design, it is convenient for users to monitor and adjust. At the same time, it also supports remote maintenance and diagnostic functions, which can facilitate troubleshooting and maintenance.
4、 Application scenarios
Vibration monitoring: used to monitor the vibration of industrial equipment (such as engines, pumps, fans), predict the health status of the equipment, and prevent equipment failures.
Mechanical equipment health monitoring: By monitoring the transient data of mechanical equipment, evaluating the working status of the equipment, timely discovering and solving potential problems, and improving the reliability and lifespan of the equipment.
Transient event recording: Recording and analyzing transient events that occur in equipment, such as sudden voltage changes, surges, or other unusual working conditions, helps to understand unusual situations during equipment operation and fault diagnosis.
Power system monitoring: Monitor parameters such as current, voltage, and frequency in the power system to ensure its stable operation.
Factory automation: integrated into the factory automation system, real-time monitoring of the operation status of production equipment, improving production efficiency and quality.
5、 Product advantages
High precision data acquisition: capable of capturing high-resolution transient data, providing key information for the analysis of the operating status and fault diagnosis of mechanical equipment.
Real time data transmission: Real time data transmission is achieved through Ethernet links to ensure the timeliness and accuracy of data.
Modular design: easy to install, configure, and maintain, reducing the complexity and cost of the system.
