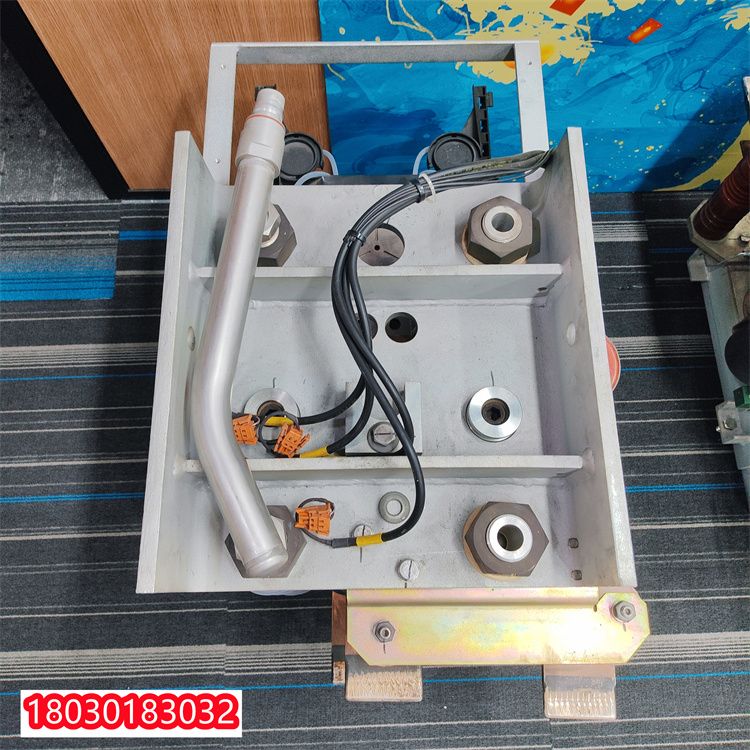

關于S-093H 3BHB030478R0309 ABB勵磁IGCT可控硅組合機架高壓相模塊，以下是詳細的信息：
一、基本信息
型號：S-093H 3BHB030478R0309
品牌：ABB
產品類型：勵磁IGCT可控硅組合機架高壓相模塊
二、技術特點
IGCT技術：該模塊集成了IGCT（集成門極換流晶閘管）技術，該技術結合了IGBT（絕緣門極雙極性晶體管）的高速開關特性和GTO（門極關斷晶閘管）的高阻斷電壓和低導通損耗特性。這種集成設計使得模塊在電力電子應用中具有出色的性能。
光纖傳輸：一般觸發信號通過光纖傳輸?shù)絀GCT單元，提高了信號傳輸?shù)姆€(wěn)定性和速度。
組成結構：在ACS6000的有緣整流單元的相模塊里，每相模塊由IGCT和二極管、鉗位電容組成，由獨立的門極供電單元GUSP為其提供能源。
三、規格參數
適配電機功率：12KW
額定電流：33mA
電源電壓：可能高達4500V（根據ABB產品的普遍特性推測，具體數值需根據實際應用場景確定）
阻斷電壓：可能達到3000V（同樣根據ABB產品的普遍特性推測）
重量：約220公斤（與S-093H 3BHB030478R0009型號相比，可能因具體型號差異而略有不同）
防護等級：IP45（根據類似產品的防護等級推測，具體數值需參考產品說明書）
四、應用場景
電力行業：該模塊廣泛應用于電力行業的各種自動化設備中，如電機控制、電源控制、自動控制系統等。
工業驅動：也適用于中功率工業驅動裝置，由于其高效、節能、環保的特點，能夠?yàn)槠髽I(yè)降低能源消耗和運營成本。
Regarding the high-voltage phase module of S-093H 3BHB030478R0309 ABB excitation IGCT thyristor combination rack, the following is detailed information:
1、 Basic Information
Model: S-093H 3BHB030478R0309
Brand: ABB
Product type: Excitation IGCT thyristor combination rack high-voltage phase module
2、 Technical features
IGCT technology: This module integrates IGCT (Integrated Gate Switching Thyristor) technology, which combines the high-speed switching characteristics of IGBT (Insulated Gate Bipolar Transistor) with the high blocking voltage and low conduction loss characteristics of GTO (Gate Turn Off Thyristor). This integrated design enables the module to have excellent performance in power electronics applications.
Fiber optic transmission: Generally, the trigger signal is transmitted to the IGCT unit through fiber optic, which improves the stability and speed of signal transmission.
Composition structure: In the phase module of the active rectifier unit of ACS6000, each phase module is composed of IGCT, diode, and clamp capacitor, and is powered by an independent gate power supply unit GUSP.
3、 Specification parameters
Suitable motor power: 12KW
Rated current: 33mA
Power supply voltage: may reach up to 4500V (based on the general characteristics of ABB products, the specific value needs to be determined according to the actual application scenario)
Blocking voltage: may reach 3000V (also inferred based on the common characteristics of ABB products)
Weight: Approximately 220 kilograms (slightly different from S-093H 3BHB030478R0009 model due to specific model differences)
Protection level: IP45 (estimated based on the protection level of similar products, specific values should refer to the product manual)
4、 Application scenarios
Power industry: This module is widely used in various automation equipment in the power industry, such as motor control, power control, automatic control systems, etc.
Industrial drive: also suitable for medium power industrial drive devices, due to its high efficiency, energy saving, and environmental protection characteristics, it can reduce energy consumption and operating costs for enterprises.
