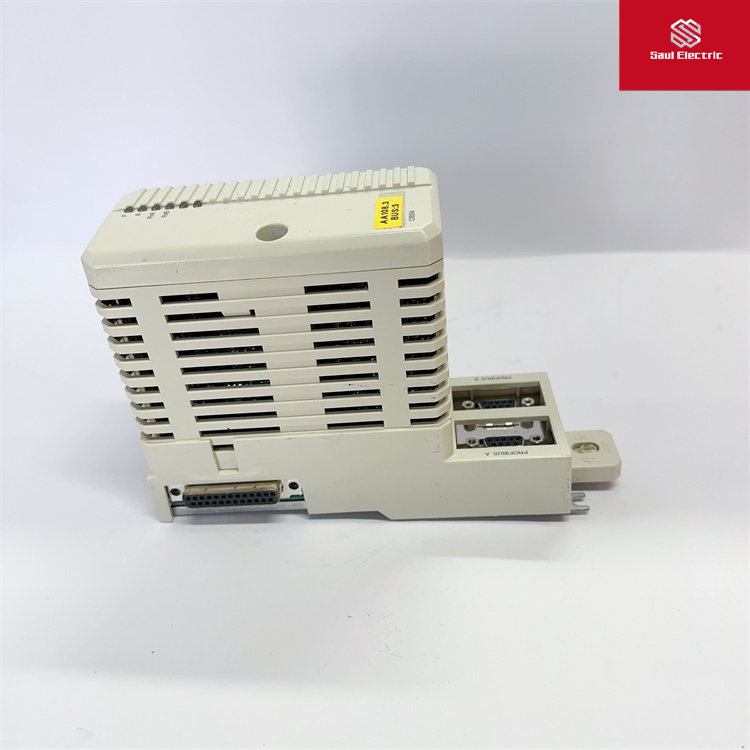

CI854BK01 3BSE069449R1 是ABB生產的AC 800M通信接口模塊，它支持PROFIBUS DP-V1系列通信協議，具備以下特性和優勢：
高速通信：支持PROFIBUS DP，這是一種高速多用途總線協議，傳輸速度可達12Mbit/s，適用于連接現場設備如遠程I/O、驅動器、低壓電氣設備和控制器 。
雙通道設計：模塊包含兩個PROFIBUS端口，可用于實現線路冗余，提高通信的可靠性 。
支持主站冗余：除了線路冗余，CI854B還支持PROFIBUS主站冗余，增強了系統的容錯能力 。
熱插拔功能：模塊支持熱插拔，方便在不重啟系統的情況下更換模塊，減少維護時間 。
與HI控制器兼容：可以與HI（高性能）控制器一起使用，提供更高效的控制解決方案 。
環境適應性：模塊設計適應工業環境，工作溫度范圍為+5至+55°C，儲存溫度范圍為-40至+70°C，具有2級污染防護和IP20防護等級 。
符合國際標準：擁有CE標志，符合RoHS標準，確保了產品的環保和健康安全要求 。
國際認證：擁有包括ABS、BV、DNV-GL、LR在內的船用證書，表明產品符合海洋使用標準 。
WEEE合規性：符合WEEE指令，減少了電子廢物對環境的影響 。
此模塊的通信能力、冗余設計和環境適應性使其成為工業自動化領域中連接和控制現場設備的理想選擇。
CI854BK01 3BSE069449R1 模塊的熱插拔功能允許用戶在不關閉系統電源的情況下，對模塊進行更換或升級，從而提高了系統的靈活性和維護的便捷性。這種設計對于需要24小時不間斷運行的工業系統尤為重要，因為它可以減少系統停機時間，提高生產效率。
熱插拔功能的實現通常涉及以下幾個方面：
電源管理：在插入或拔出模塊時，系統必須能夠控制電源，以避免產生過大的瞬態電流，這種電流可能會對系統造成損害。通過使用如PTC電阻或MOS管等元件來限制電流，實現電源熱插拔 。
信號隔離：在模塊斷電之前，需要適當?shù)亟K止所有通信，以防止信號線上產生瞬變電壓，這可能導致系統通信異常。信號熱插拔功能通過在信號線上串聯緩沖器來實現 。
硬件設計：模塊和系統的設計必須支持熱插拔操作，這通常意味著使用特殊的連接器和電路設計來吸收插入和拔出時產生的機械和電氣沖擊 。
熱插拔功能對系統穩定性的影響主要表現在：
提高可靠性：通過允許不中斷系統運行的情況下更換模塊，熱插拔功能提高了系統的可靠性和容錯能力 。
減少維護時間：熱插拔功能減少了系統停機時間，因為維護和模塊更換可以在系統運行時進行 。
長期影響：如果熱插拔設計不當，可能會因為反復的插拔操作導致系統組件的損壞，影響系統的長期穩定性 。
CI854BK01 3BSE069449R1 模塊的熱插拔功能使其成為需要高可靠性和持續運行的關鍵工業應用的理想選擇。然而，為了確保系統的長期穩定性，設計時必須考慮到熱插拔操作可能帶來的所有潛在影響，并采取適當?shù)拇胧﹣肀Ｗo系統免受損害 。
CI854BK01 3BSE069449R1 is an AC 800M communication interface module produced by ABB. It supports the PROFIBUS DP-V1 series communication protocols and has the following features and advantages:
High-speed communication: Support PROFIBUS DP, a high-speed multipurpose bus protocol with transmission speeds of up to 12Mbit/s, suitable for connecting field devices such as remote I/O, drives, low-voltage electrical equipment and controllers.
Dual channel design: The module contains two PROFIBUS ports, which can be used to achieve line redundancy and improve the reliability of communication.
Support for master station redundancy: In addition to line redundancy, the CI854B also supports PROFIBUS master station redundancy, enhancing the fault tolerance of the system.
Hot swap: The module supports hot swap, facilitating the replacement of a module without restarting the system and reducing the maintenance time.
Compatible with HI controllers: Can be used with HI (High performance) controllers to provide a more efficient control solution.
Environmental adaptability: The modules are designed for industrial environments with operating temperatures ranging from +5 to +55°C and storage temperatures ranging from -40 to +70°C, with Level 2 pollution protection and IP20 protection.
Comply with international standards: with the CE mark, in line with RoHS standards, to ensure the environmental protection and health and safety requirements of the product.
International certification: With Marine certificates including ABS, BV, DNV-GL, LR, indicating that the product meets the standards for Marine use.
WEEE compliance: Compliance with the WEEE Directive reduces the environmental impact of e-waste.
The module's communication capabilities, redundant design and environmental adaptability make it ideal for connecting and controlling field equipment in the field of industrial automation.
The hot swap function of the CI854BK01 3BSE069449R1 module allows users to replace or upgrade the module without turning off the system power, which improves system flexibility and ease of maintenance. This design is particularly important for industrial systems that require 24 hours of uninterrupted operation, as it reduces system downtime and increases production efficiency.
The implementation of the hot swap function usually involves the following aspects:
Power management: The system must be able to control the power supply when a module is inserted or unplugged to avoid excessive transient currents that can cause damage to the system. The power supply is hot-swapable by using components such as PTC resistors or MOS tubes to limit the current.
Signal isolation: Before the module is powered off, all communication needs to be properly terminated to prevent transient voltage on the signal line, which can cause abnormal system communication. The signal hot swap function is realized by connecting the buffer in series on the signal line.
Hardware design: Modules and systems must be designed to support hot-swappable operation, which usually means using special connectors and circuit designs to absorb mechanical and electrical shocks during insertion and withdrawal.
The impact of hot swap on system stability is as follows:
Improved reliability: By allowing module replacement without interrupting system operation, hot swap improves system reliability and fault tolerance.
Reduced maintenance time: Hot swap reduces system downtime because maintenance and module replacement can be performed while the system is running.
Long-term impact: If the hot swap is improperly designed, repeated hot swap operations may damage system components, affecting the long-term stability of the system.
The hot swappable capability of the CI854BK01 3BSE069449R1 module makes it ideal for critical industrial applications that require high reliability and continuous operation. However, in order to ensure the long-term stability of the system, the design must take into account all potential impacts that can be brought about by the hot swap operation and take appropriate measures to protect the system from damage.
