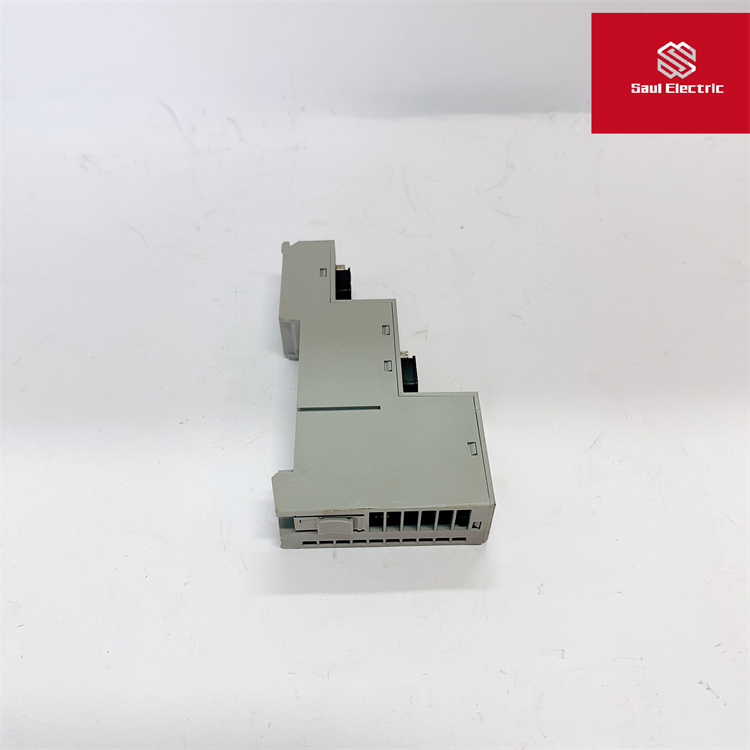

CI910F 3BDH001005R0001 是ABB生產的一款通訊結構模塊，主要用于通過CAN總線與基于機架的自由職業者I/O模塊進行通信。以下是該模塊的一些關鍵特性和應用信息：

型號名稱：CI910F 3BDH001005R0001，屬于ABB品牌。

主要功能：該模塊用于通過CAN總線與機架式Freelance I/O模塊通信，適用于小型應用，由幾個到大約300個I/O信號組成 。

技術規格：

通信協議：CAN總線。

電源需求：外部24 VDC電源。

軟件版本要求：2013 SP1 RU04、2016 SP1 RU03或更高版本 。

兼容性信息：

兼容系統：與基于機架的Freelance I/O模塊兼容。

配套使用：與端子底座TB 711F和電池TA521一起使用 。

物理特性：

尺寸：產品凈深度/長度76毫米，產品凈高54毫米，產品凈寬68毫米。

重量：產品凈重0.15千克 。

操作系統：無操作系統，在軟件安裝過程中必須加載 。

包裝與產地：原裝進口，可能來自德國或美國 。

應用領域：特別適用于由幾個到大約300個I/O信號組成的小型應用 。

此外，CI910F作為ABB AC 900F控制器的一個重要模塊，提供CAN總線接口功能，允許AC 900F控制器通過CAN總線與Freelance機架上的I/O模塊進行連接，擴展系統的功能和靈活性。它包含三個CAN總線接口（CAN 1至CAN 3），設計用于冗余操作，確保系統的可靠性和穩定性 。

在選擇電源供應設備時，應考慮AC/DC電源模塊作為保障設備長時間穩定運行的可靠選擇，因?yàn)樗邆涓叨瓤煽啃?、高效能和?jié)能、小體積和輕便等優點 。

最后，CI910F 3BDH001005R0001 CAN通信接口模塊與AC 900F控制器配合使用，支持三個CAN總線線路，這些線路與系統電氣隔離，設計為冗余操作，并與第二AC 900F控制器一起使用 。

CI910F 3BDH001005R0001 模塊在ABB AC 900F控制器中扮演的角色是提供CAN總線接口功能，它允許AC 900F控制器通過CAN總線與Freelance機架上的I/O模塊進行連接。以下是該模塊在系統中的主要作用和特點：

通信接口：CI910F模塊提供CAN總線通信能力，是AC 900F控制器與外部設備（如I/O模塊）進行數據交換的橋梁。

擴展功能：通過CAN總線連接，模塊擴展了AC 900F控制器的I/O能力和系統靈活性，允許連接更多的輸入輸出設備。

冗余設計：模塊包含三個CAN總線接口（CAN 1至CAN 3），設計上支持冗余操作，提高了系統的可靠性和容錯能力。

電氣隔離：CAN總線線路與系統電氣隔離，減少了電氣干擾和故障傳播的風險。

數據傳輸：模塊內部使用雙端口RAM進行數據交換，確保數據在CI910F和CPU模塊之間的高效傳輸。

工程配置：CI910F模塊在Freelance系統中進行工程配置，用戶可以根據實際需求配置硬件結構和參數。

軟件支持：模塊需要與特定版本的軟件配合使用（例如2016 SP1 RU03或更高版本），以確保模塊的功能得到充分利用。

物理連接：模塊通過內部耦合器總線連接到CPU模塊，實現數據傳輸和電源供應。

應用場景：CI910F模塊廣泛應用于需要高可靠性和靈活性的工業自動化控制系統中，尤其是在小型應用中，由幾個到大約300個I/O信號組成的場景。

維護與保養：模塊需要定期檢查和維護，以確保其正常運行并延長使用壽命。

CI910F 3BDH001005R0001模塊是ABB AC 900F控制器的重要組成部分，通過提供CAN總線通信能力，它增強了系統的連接性和整體性能。

The CI910F 3BDH001005R0001 is a communication architecture module produced by ABB for communication with rack-based freelancer I/O modules via the CAN bus. Here are some of the key features and application information of the module:

Model name: CI910F 3BDH001005R0001, belongs to ABB brand.

The module is used to communicate with rack-mounted Freelance I/O modules over the CAN bus and is suitable for small applications, consisting of several to about 300 I/O signals.

Technical specifications:

Communication protocol: CAN bus.

Power requirements: External 24 VDC power supply.

Software version: 2013 SP1 RU04, 2016 SP1 RU03 or later.

Compatibility information:

Compatible system: Compatible with rack-based Freelance I/O modules.

Compatible: Used with terminal base TB 711F and battery TA521.

Physical characteristics:

Dimensions: Net depth/length 76 mm, net height 54 mm, net width 68 mm.

Weight: 0.15 kg net weight.

Operating system: No operating system, which must be loaded during software installation.

Packaging and origin: Imported in original packaging, possibly from Germany or the United States.

Application areas: Especially suitable for small applications consisting of a few to about 300 I/O signals.

In addition, the CI910F, as an important module of ABB AC 900F controller, provides the CAN bus interface function, allowing the AC 900F controller to connect with the Freelance rack I/O module through the CAN bus, expanding the function and flexibility of the system. It contains three CAN bus interfaces (CAN 1 to CAN 3) designed for redundant operation to ensure system reliability and stability.

When selecting a power supply device, the AC/DC power module should be considered as a reliable choice to ensure the stable operation of the device for a long time, because it has the advantages of high reliability, high efficiency and energy saving, small size and lightweight.

Finally, the CI910F 3BDH001005R0001 CAN communication interface module is used with the AC 900F controller, supporting three CAN bus lines that are electrically isolated from the system, designed for redundant operation, and used with the second AC 900F controller.

The CI910F 3BDH001005R0001 module's role in the ABB AC 900F controller is to provide the CAN bus interface function, which allows the AC 900F controller to connect to the Freelance rack I/O module via the CAN bus. The following are the main functions and characteristics of the module in the system:

Communication interface: CI910F module provides CAN bus communication capability and is the bridge for AC 900F controller to exchange data with external devices (such as I/O module).

Extended functionality: Connected via the CAN bus, the module extends the I/O capability and system flexibility of the AC 900F controller, allowing the connection of more input and output devices.

Redundant design: The module contains three CAN bus interfaces (CAN 1 to CAN 3), which are designed to support redundant operation and improve the reliability and fault tolerance of the system.

Electrical isolation: CAN bus lines are electrically isolated from the system, reducing the risk of electrical interference and fault propagation.

Data transfer: Dual-port RAM is used inside the module for data exchange, ensuring efficient transfer of data between the CI910F and the CPU module.

Engineering configuration: The CI910F module is configured in the Freelance system, and users can configure the hardware structure and parameters according to actual requirements.

Software support: Modules need to work with a specific version of software (such as 2016 SP1 RU03 or later) to ensure that the capabilities of the module are fully utilized.

Physical connection: The module is connected to the CPU module through the internal coupler bus for data transmission and power supply.

Application Scenarios: The CI910F module is widely used in industrial automation control systems that require high reliability and flexibility, especially in small applications consisting of a few to about 300 I/O signals.

Maintenance and maintenance: Modules require regular inspection and maintenance to ensure their proper operation and extend their service life.

The CI910F 3BDH001005R0001 module is an important part of ABB's AC 900F controller, which enhances the connectivity and overall performance of the system by providing CAN bus communication capability.
