REF630 是ABB Relion產品家族中的一個饋線保護和測控裝置，屬于630保護測控裝置產品系列的成員。這款裝置以其功能可擴展性和靈活的可配置性而著稱，適用于中性點不接地、電阻接地、補償接地或直接接地配電網絡中，作為架空線路和電纜饋線的主保護 186。

REF630 設計提供了四種預配置，滿足典型的饋線保護和測控需求，并且可以適應開/合環饋線應用、輻射架空/混合線路饋線應用、環/網狀饋線應用和分段母線。除此之外，預配置還可以容易地滿足帶自由可選功能的特定應用的需求 186。

該裝置有兩種配置可選：?jiǎn)文妇€(xiàn)和雙母線，每種母線配置又有一個或兩個斷路器及多個投切裝置配置可選。REF630 還支持大量手動和電動隔離開關和接地開關，因此可以用于控制多種類型的開關裝置 186。

在通信方面，REF630 完全支持變電站IEC61850通信標準，涵蓋垂直和水平通信，包含帶開關量信號和模擬量信號的GOOSE報文。此外，REF630 還支持 DNP3（TCP/IP）和 IEC 60870-5-103（串口）通信規約，提供了與各式變電站和 SCADA 系統的無縫連接 186。

REF630 的主要特性還包括廣泛的保護和測控功能，高靈敏度和選擇性的多頻導納接地保護組合，先進、快速的短路、接地故障定位功能，8 RTD/mA 輸入 and 4 mA 輸出，支持 IEC61850 第一版和第二版，包括 GOOSE，以及支持 Modbus、DNP3，IEC 60870-5-103 通信協議 186。

ABB REF630 饋線保護繼電器的安裝和配置需要注意以下幾個要點：

檢查產品完整性：在安裝前應檢查REF630裝置是否完整，包括所有配件和文檔 。

閱讀手冊：在安裝和配置前，應詳細閱讀REF630的用戶手冊，了解其功能、特性和具體操作步驟 。

環境要求：確保安裝環境符合ABB REF630的技術規格要求，包括溫度、濕度等環境因素 。

電源配置：根據REF630的電源要求進行配置，確保電源的穩定性和可靠性 。

通信設置：由于REF630支持IEC61850通信標準以及DNP3和IEC 60870-5-103通信協議，需要正確設置通信參數以確保與變電站和SCADA系統的無縫連接 。

配置保護功能：根據具體的應用需求配置REF630的保護功能，包括過流保護、接地故障保護等，并設置相應的定值 。

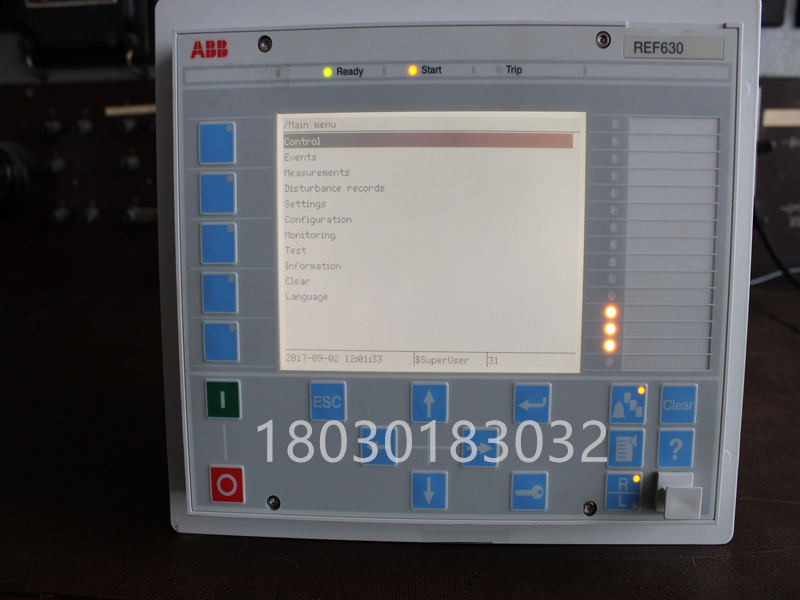

HMI配置：REF630配備有大尺寸且可分離的HMI（人機界面），需要根據操作習慣和需求進行配置 。

測試和驗證：在安裝和配置完成后，應進行充分的測試和驗證，確保REF630的所有功能正常工作，并且保護動作準確無誤 。

遵守安全規范：在整個安裝和配置過程中，應遵守相關的安全規范和操作程序，確保人員和設備的安全。

全壽命周期服務：ABB提供廣泛的產品全壽命周期服務，確保REF630的長期穩定運行和維護 。

The REF630 is a feeder protection and measurement device in the ABB Relion product family, a member of the 630 Protection Measurement and control device product family. Known for its functional scalability and flexible configuration, the device is suitable for use as primary protection for overhead lines and cable feeders in neutral neutral, resistance grounded, compensated or directly grounded distribution networks.

The REF630 design is available in four preconfigurations to meet typical feeder protection and control requirements, and can accommodate open/closed loop feeder applications, radiant overhead/hybrid line feeder applications, ring/mesh feeder applications, and segmented busbars. In addition, preconfiguration can easily meet the needs of specific applications with freely optional functionalities.

The device has two configurations: single bus and double bus, and each bus configuration has one or two circuit breakers and multiple switching device configurations. The REF630 also supports a large number of manual and electric disconnecting switches and ground switches, so it can be used to control many types of switchgear 186.

In terms of communication, the REF630 fully supports the substation IEC61850 communication standard, covering both vertical and horizontal communication, including GOOSE messages with switching signals and analog signals. In addition, the REF630 supports DNP3 (TCP/IP) and IEC 60870-5-103 (serial port) communication protocols, providing seamless connectivity to various substations and SCADA systems.

Key features of the REF630 also include a wide range of protection and measurement and control functions, a combination of highly sensitive and selective multi-frequency admittance ground protection, advanced and fast short-circuit, ground fault location functions, 8 RTD/mA input and 4 mA output, support for IEC61850 1st and 2nd editions, including GOOSE, It also supports Modbus, DNP3, IEC 60870-5-103 communication protocol 186.

ABB REF630 feeder protection relays need to be installed and configured in the following ways:

Check product integrity: The REF630 unit should be checked for integrity before installation, including all fittings and documentation.

Read the manual: Before installing and configuring the REF630, read the REF630's user manual to understand its functions, features, and procedures.

Environment requirements: Ensure that the installation environment complies with ABB REF630 specifications, including temperature, humidity and other environmental factors.

Power configuration: Configure according to the REF630 power requirements to ensure power stability and reliability.

Communication Settings: Since the REF630 supports the IEC61850 communication standard and the DNP3 and IEC 60870-5-103 communication protocols, the communication parameters need to be set correctly to ensure seamless connection to the substation and SCADA systems.

Configure the protection function: Configure the protection function of the REF630 according to the specific application requirements, including overcurrent protection and ground fault protection, and set the corresponding value.

HMI configuration: The REF630 is equipped with a large and detachable HMI (Human Machine Interface) that needs to be configured according to operating habits and requirements.

Testing and verification: After installation and configuration, adequate testing and verification should be carried out to ensure that all functions of the REF630 are working properly and that protection actions are correct.

Comply with safety regulations: During the entire installation and configuration process, comply with relevant safety regulations and operating procedures to ensure the safety of personnel and equipment.

Full Life Cycle Service: ABB offers a wide range of product full life cycle services to ensure long-term stable operation and maintenance of the REF630.
