PM867 3BSE076356R1 是ABB公司生產的一款高性能的接口控制器，屬于AC 800M系列。這款控制器具備以下特性：
高完整性：控制器設計用于實現高完整性功能，通過添加SM812模塊和SIL認證軟件，可達到高安全完整性等級 。
時鐘頻率：擁有133兆赫的時鐘頻率，提供快速的處理能力 。
性能：在執行1000個布爾運算時，性能表現在0.09毫秒內 。
內存容量：具有64兆字節的內存，其中46.559兆字節的RAM可用于應用程序 。
接口：控制器底板具備多個接口，包括兩個用于連接控制網絡的RJ45以太網端口和兩個RJ45串行端口，其中一個串行端口為RS-232C端口，另一個為隔離端口，用于連接配置工具 。
CPU冗余：支持CPU冗余，以提高系統的可用性和容錯能力 。
兼容性：僅兼容800xA 6.0.2及更高版本 。
此外，PM867控制器還具備以下特點和優勢：
支持S800 I/O高完整性：適用于PM865、PM866A、PM867和PM891等型號 。
可配置性：可以通過800xA控制構建器進行配置 。
EMC認證：具有完整的EMC認證，確保與其他設備的兼容 。
安全認證：擁有TüV認證的SIL 2和SIL 3，以及ISA安全認證 。
內置冗余以太網通信端口：增強了系統的通信能力和可靠性 。
PM867K02是一款冗余處理器單元，用于工業自動化系統中的高可用性配置，具備熱備冗余設計和高速數據傳輸能力，易于配置和管理，且具有高可靠性 。

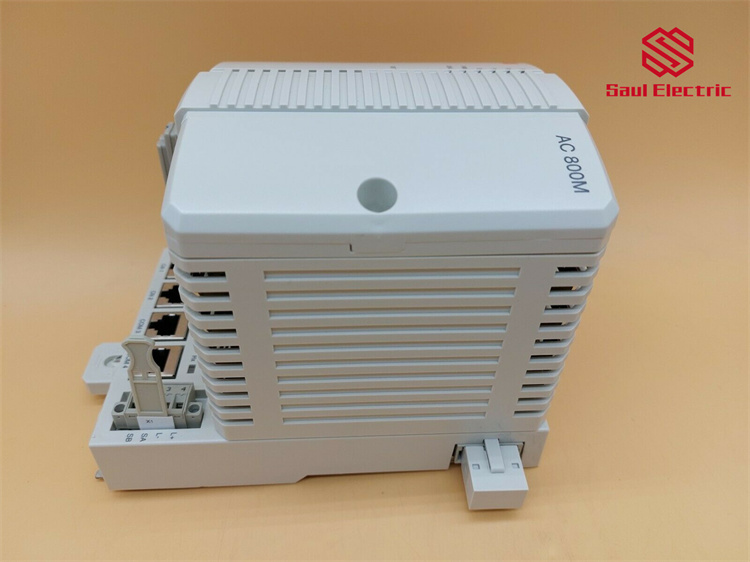

The PM867 3BSE076356R1 is a high-performance interface controller produced by ABB and belongs to the AC 800M series. This controller has the following features:
High integrity: The controller is designed for high integrity functionality with the addition of the SM812 module and SIL certified software to achieve a high level of safety integrity.
Clock frequency: With a clock frequency of 133 MHZ, it provides fast processing power.
Performance: Performance in 0.09 milliseconds for 1000 Boolean operations.
Memory capacity: Has 64 megabytes of memory, of which 46.559 megabytes of RAM are available for applications.
Ports: The controller baseboard has multiple ports, including two RJ45 Ethernet ports for connecting to the control network and two RJ45 serial ports, one of which is an RS-232C port and the other is an isolated port for connecting to the configuration tool.
CPU redundancy: CPU redundancy is supported to improve system availability and fault tolerance.
Compatibility: Only compatible with 800xA 6.0.2 and later.
In addition, the PM867 controller offers the following features and benefits:
S800 I/O high integrity: Suitable for PM865, PM866A, PM867 and PM891 models.
Configurability: You can control the builder with 800xA for configuration.
EMC Certification: Complete EMC certification to ensure compatibility with other equipment.
Safety Certification: TUV certified SIL 2 and SIL 3, as well as ISA safety certification.
Built-in redundant Ethernet communication port: enhanced system communication capability and reliability.
The PM867K02 is a redundant processor unit for high availability configuration in industrial automation systems, with hot spare redundancy design and high-speed data transmission capabilities, easy configuration and management, and high reliability.
