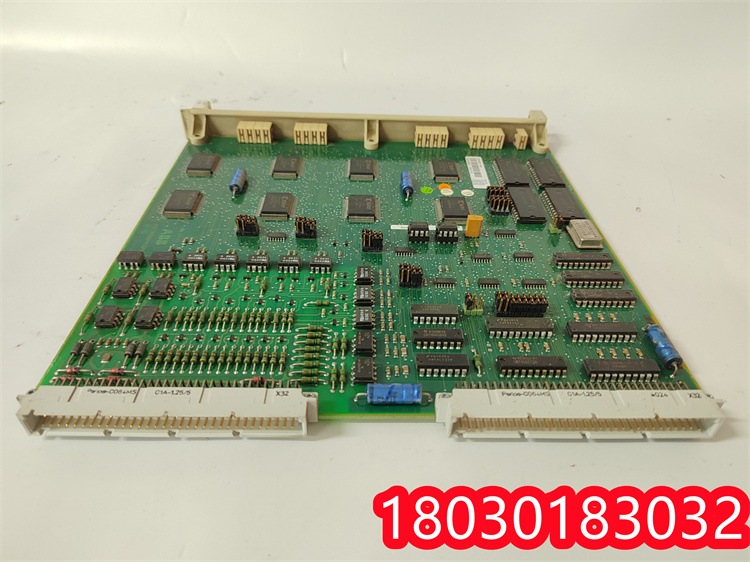

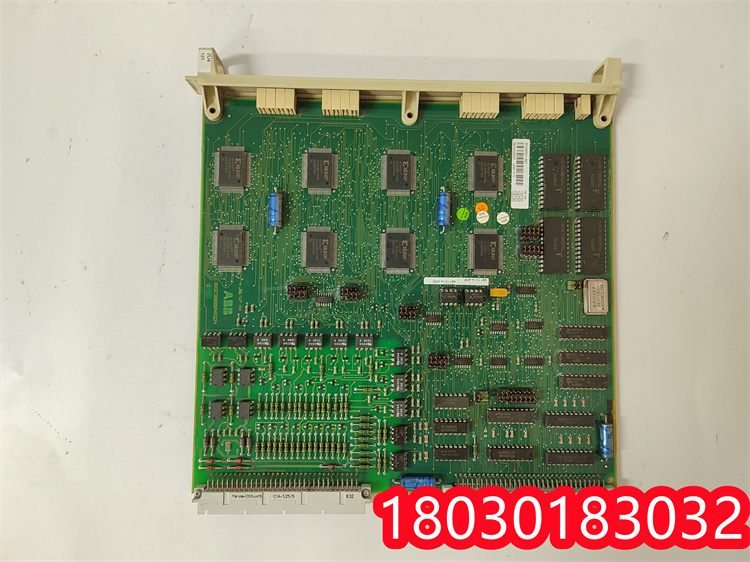

DSADP170 57160001-ADF 是ABB公司生產的一款脈沖計數板，它具備多種功能和技術特性，適用于多種工業自動化應用。以下是該脈沖計數板的一些關鍵特性：
高速計數能力：該模塊能夠處理最大脈沖頻率達到2.5 MHz的高速脈沖信號，具有高精度計數能力 。
多種輸入接口：支持多種不同的輸入接口，例如推挽、漏極開路、源極開路等，方便與不同類型的傳感器連接 。
可編程設置：用戶可以編程設置計數范圍、計數方向、脈沖極性等參數，以滿足不同應用需求 。
高可靠性和穩定性：設計用于在惡劣的工業環境中穩定工作，具有高可靠性和穩定性 。
強抗干擾能力：采用全自動貼片封裝工藝，具備強抗干擾能力，確保準確測量和計數 。
多種輸出接口：提供并行輸出、串行輸出、PWM輸出等多種輸出接口，方便與控制系統或上位機軟件連接 。
應用領域廣泛：廣泛應用于電力、石化、冶金、輕工、制藥、航空以及科學研究、通信系統、電子工程等領域 。
此外，根據深圳長欣自動化設備有限公司提供的信息，DSDP170 57160001-ADF脈沖計數板還具備以下參數：
通道數：32
計數頻率：最大50 kHz
計數精度：±1個計數
輸入電壓范圍：5 VDC至24 VDC
輸入電流：最大10 mA
功耗：<10 W
工作溫度范圍：-20°C至+60°C
防護等級：IP67 。
The DSADP170 57160001-ADF is a pulse counting board from ABB that offers a wide range of functions and technical features for a wide range of industrial automation applications. Here are some of the key features of the pulse counting board:
High-speed counting capability: The module can process high-speed pulse signals with a maximum pulse frequency of 2.5 MHz, and has high-precision counting capability.
Multiple input interfaces: Support a variety of different input interfaces, such as push-pull, drain open, source open, etc., to facilitate connection with different types of sensors.
Programmable Settings: Users can programmatically set counting range, counting direction, pulse polarity and other parameters to meet different application requirements.
High reliability and stability: Designed for stable operation in harsh industrial environments with high reliability and stability.
Strong anti-interference ability: automatic patch packaging process, with strong anti-interference ability, to ensure accurate measurement and counting.
A variety of output interfaces: provide parallel output, serial output, PWM output and other output interfaces, easy to connect with the control system or the upper computer software.
Wide range of applications: widely used in electric power, petrochemical, metallurgy, light industry, pharmaceutical, aviation and scientific research, communication systems, electronic engineering and other fields.
In addition, according to the information provided by Shenzhen Changxin Automation Equipment Co., LTD., the DSDP170 57160001-ADF pulse counting board also has the following parameters:
Number of channels: 32
Counting frequency: 50 kHz Max
Counting accuracy: ±1 count
Input voltage range: 5 VDC to 24 VDC
Input current: Max. 10 mA
Power consumption: <10 W
Operating temperature range: -20°C to +60°C
Protection level: IP67.
