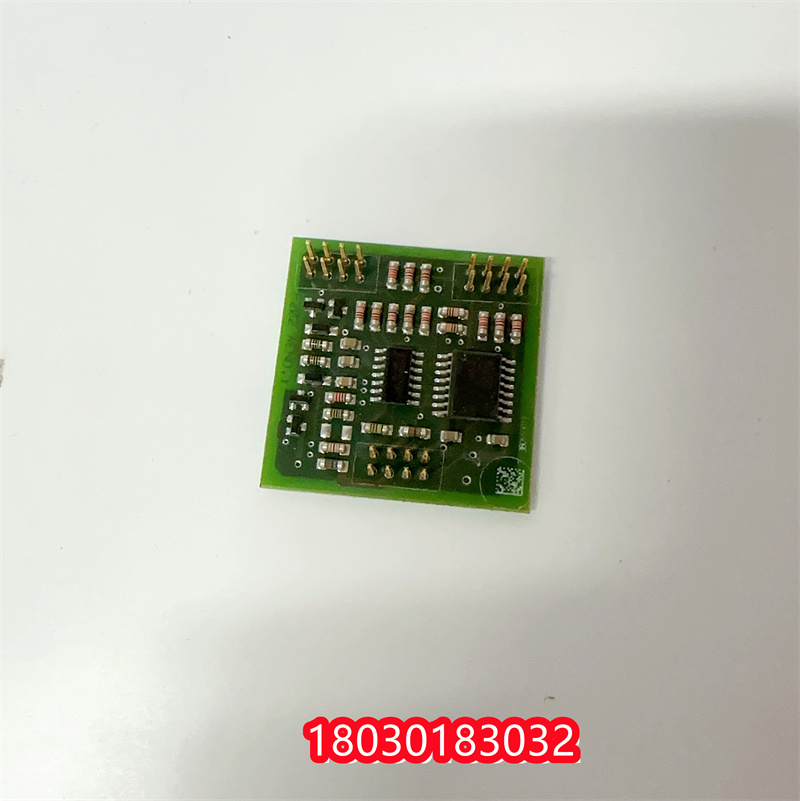

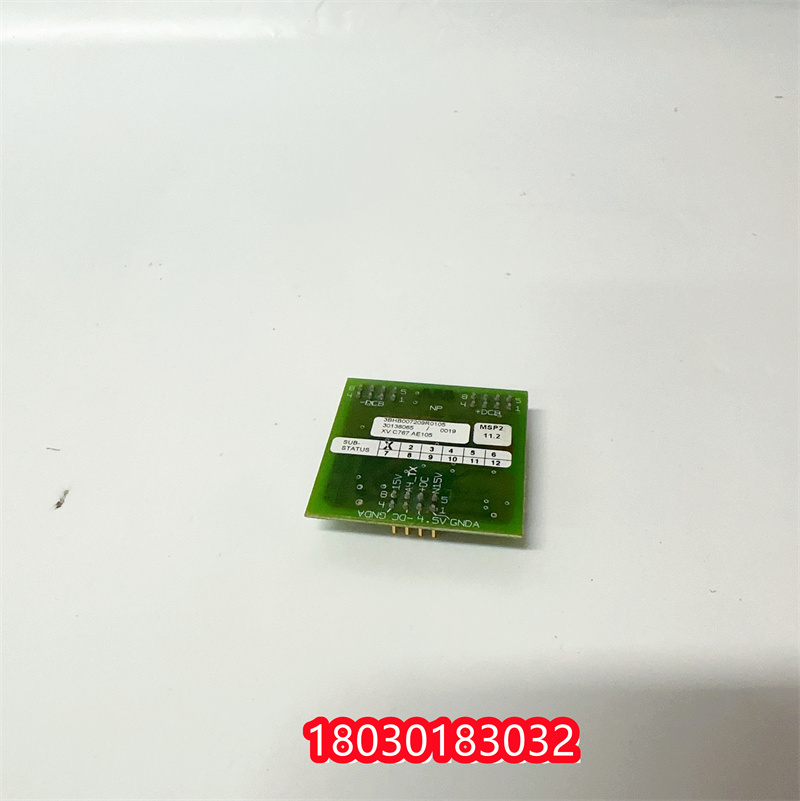

ABB的XVC767102 3BHB007209R0102是一款專用于工業自動化控制領域的主控板驅動器。以下是該產品的一些關鍵特性和參數：
品牌與型號：品牌為ABB，型號為XVC767AE102-3BHB007209R0102 。
輸入與輸出電壓：輸入電壓為220V AC，輸出電壓為24V DC 。
輸出電流：最大輸出電流為10A 。
工作溫度范圍：正常工作溫度在-10°C至50°C之間 。
控制功能：主控板是驅動器的控制中樞，負責控制電源、調制脈沖的產生、控制方式及保護邏輯等 。
技術應用：采用了SG3525A作為PWM脈沖形成，輸出脈沖頻率范圍20KHz—60KHz，脈沖間隔互為180度，死區時間可以自行調整，適用于IGBT全橋逆變串聯諧振感應加熱裝置 。
功率范圍：適用于10KW至120KW的功率范圍，控制板接線少，控制集中，無需調試 。
保護功能：具備過流、過壓等多種狀態指示，并提供開關型霍爾保護接口和線性霍爾保護接口 。
應用領域：廣泛應用于工業自動化、能源管理、建筑機械、物料搬運等領域，實現對交流電機的高效驅動和控制 。
該主控板驅動器是ABB公司推出的高性能產品，具有高效節能、動態響應快、控制精度高等特點，能夠在多種工業應用中實現對電機的精確控制，提高生產效率和穩定性。
ABB XVC767102 3BHB007209R0102 is a master control board driver specially designed for industrial automation control. Here are some of the key features and parameters of the product:
Brand and model: The brand is ABB, model XVC767AE102-3BHB007209R0102.
Input and output voltage: Input voltage is 220V AC, output voltage is 24V DC.
Output current: The maximum output current is 10A.
Operating temperature range: Normal operating temperature between -10°C and 50°C.
Control function: The main control board is the control center of the driver, responsible for controlling the power supply, the generation of the modulation pulse, the control mode and the protection logic.
Technical application: SG3525A is used as PWM pulse formation, the output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself, which is suitable for IGBT full-bridge inverter series resonant induction heating device.
Power range: Applicable to the power range of 10KW to 120KW, less wiring of the control board, centralized control, no need to debug.
Protection function: With over current, over voltage and other state indicators, and provide switching Hall protection interface and linear Hall protection interface.
Application: Widely used in industrial automation, energy management, construction machinery, material handling and other fields, to achieve efficient drive and control of AC motor.
The main control board driver is a high-performance product launched by ABB, which has the characteristics of high efficiency and energy saving, fast dynamic response and high control accuracy. It can realize the precise control of the motor in a variety of industrial applications, and improve the production efficiency and stability.
