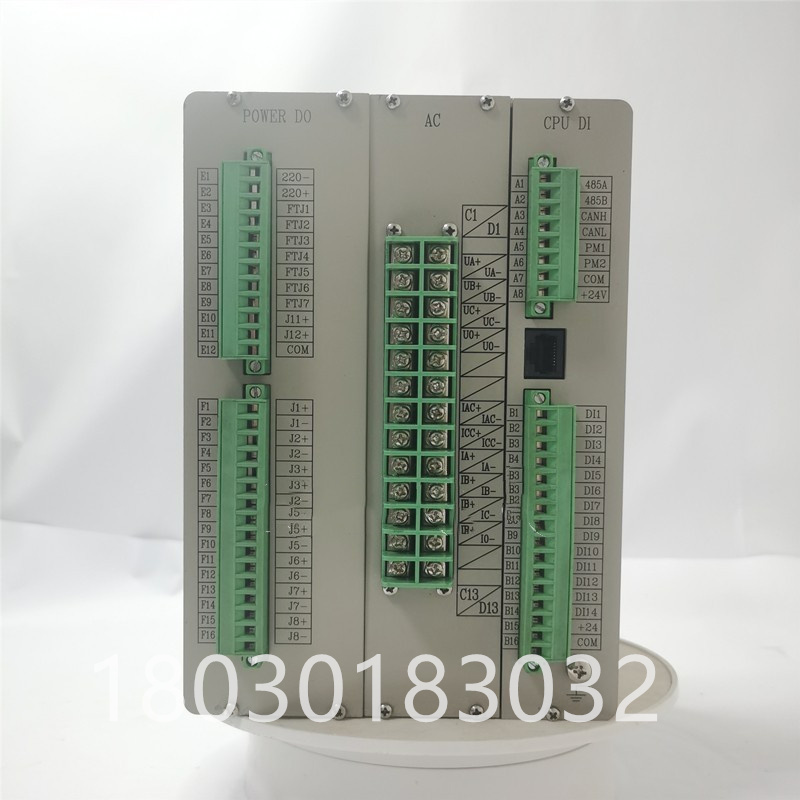

ABB SNP-2316數字式變壓器保護測控裝置是一款功能強大、技術先進的設備，專為變壓器保護、控制和測量而設計。以下是關于該裝置的詳細介紹：

一、產品概述

SNP-2316數字式變壓器保護測控裝置是一款集保護、控制、測量和監視功能于一體的智能型設備。它采用全封閉機箱設計，強弱電嚴格分開，有效提高了抗干擾能力，并滿足對外電磁輻射的相關標準。

二、主要特點

1. 抗干擾能力強：采用全封閉機箱設計，取消傳統背板配線方式，并在軟件設計上采取相應的抗干擾措施，使得裝置的抗干擾能力大大提高。
2. 故障率低：在日常維護中，主要故障主要體現在通訊故障及TV斷線，整體故障率較低。
3. 數字化處理技術：運用數字化處理技術實現各種保護，是替代傳統電磁繼電器的理想產品。
4. 適用范圍廣：適用于10kV及以下電壓等級的工礦企業、民用建筑配電的小電流接地系統，可作為各類電氣設備和線路的主保護或后備保護。

三、技術參數

1. 支持接口協議：提供電子式互感器接口，支持IEC60044-8接口協議，借助多模光纖由合并單元引入電壓量和電流量。
2. 采樣速率：合并單元傳入的電壓電流量的采樣速率為4k/S或5k/S。
3. 通訊規約：支持IEC-61850通訊規約。
4. 遙測量：Iam、Ibm、Icm、I0、UA、UB、UC、UAB、UBC、UCA、U0、F、P、Q、COSф共15個遙測量。
5. 遙信開入：14路自定義遙信開入。
6. 斷路器遙控：一組斷路器遙控分/合（至多可提供三組遙控）。

四、功能特點

1. 高精度測量：具備高精度測量功能，可實時測量電壓、電流、功率等參數。
2. 豐富保護功能：提供過流、過壓、欠壓、零序電流等多種保護功能，確保變壓器的安全運行。
3. 靈活配置：可根據用戶需求進行靈活配置，滿足不同應用場景的需求。
4. 事件記錄：具有詳盡的事件記錄功能，便于分析事故原因。
5. 人機交互：人機接口由寬溫大屏幕液晶顯示器和薄膜按鍵組成，信息顯示漢化，操作簡便。

五、適用環境

該裝置適用于無劇烈振動、沖擊、腐蝕金屬和破壞絕緣的氣體環境，以及無滴水及水浸的地方。

六、總結

ABB SNP-2316數字式變壓器保護測控裝置憑借其強大的功能、先進的技術和廣泛的應用范圍，在電力系統中發揮著重要作用，為變壓器的安全運行提供了有力保障。

The ABB SNP-2316 Digital Transformer Protection Measurement and Control unit is a powerful, technologically advanced device designed for transformer protection, control and measurement. Here is a detailed description of the device:

I. Product overview

SNP-2316 digital transformer protection measurement and control device is an intelligent device that integrates protection, control, measurement and monitoring functions. It uses a fully enclosed chassis design, strong and weak electricity strictly separated, effectively improve the anti-interference ability, and meet the relevant standards of external electromagnetic radiation.

Two, the main characteristics

Strong anti-interference ability: the use of fully enclosed chassis design, cancel the traditional backplane wiring, and take corresponding anti-interference measures in software design, so that the anti-interference ability of the device is greatly improved.

Low failure rate: In daily maintenance, the main failures are mainly reflected in communication failures and TV breaks, and the overall failure rate is low.

Digital processing technology: The use of digital processing technology to achieve a variety of protection, is an ideal product to replace the traditional electromagnetic relay.

Wide range of application: suitable for 10kV and below voltage level of industrial and mining enterprises, civil building power distribution of small current grounding system, can be used as all kinds of electrical equipment and lines of the main protection or backup protection.

3. Technical parameters

Support interface protocol: Provide electronic transformer interface, support IEC60044-8 interface protocol, and introduce voltage and current from the combined unit with the help of multi-mode fiber.

Sampling rate: The sampling rate of the incoming voltage current of the merging unit is 4k/S or 5k/S.

Communication protocol: Support IEC-61850 communication protocol.

Remote measurement: Iam, Ibm, Icm, I0, UA, UB, UC, UAB, UBC, UCA, U0, F, P, Q, COS Phi a total of 15 remote measurement.

Remote letter access: 14-way custom remote letter access.

Circuit breaker remote control: a group of circuit breaker remote control division/closing (up to three groups of remote control can be provided).

Four, functional characteristics

High-precision measurement: With high-precision measurement function, real-time measurement of voltage, current, power and other parameters.

Rich protection functions: Provide over current, over voltage, under voltage, zero sequence current and other protection functions to ensure the safe operation of the transformer.

Flexible configuration: It can be flexibly configured based on user requirements to meet the requirements of different application scenarios.

Event record: with detailed event record function, easy to analyze the cause of the accident.

Man-machine interaction: Man-machine interface is composed of wide-temperature large-screen LCD display and thin film key, information display Chinese, easy to operate.

5. Applicable environment

The device is suitable for gas environments where there is no severe vibration, shock, corrosion of metal and destruction of insulation, and where there is no dripping or flooding.

Vi. Summary

ABB SNP-2316 digital transformer protection measurement and control device with its powerful function, advanced technology and wide application range, plays an important role in the power system, providing a strong guarantee for the safe operation of transformers.
