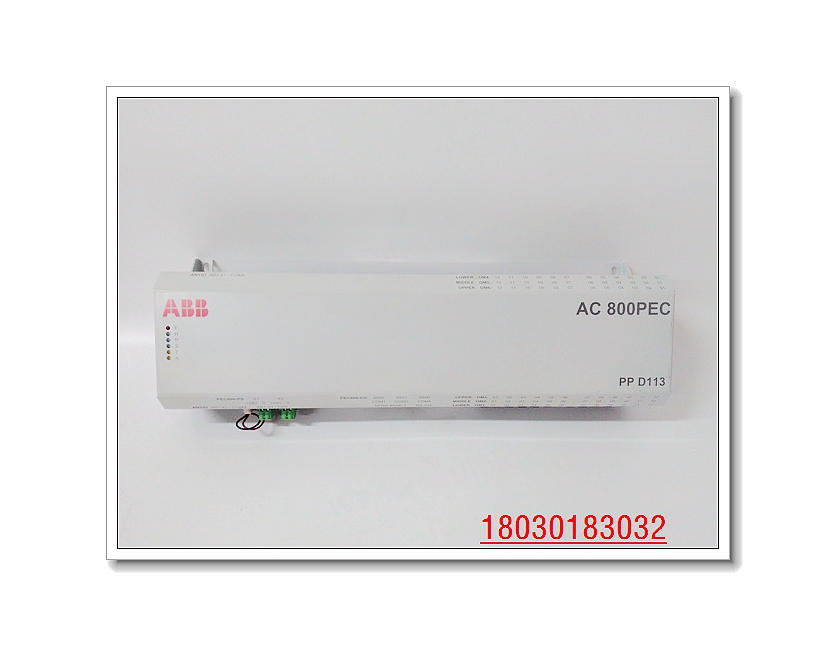

3BHE023784R1023 PPD113B01-10-150000 ABB 控制器驅動單元是專門為ABB工業自動化控制系統設計的驅動組件。
該驅動單元的主要功能是接收控制器的指令，并將這些指令轉換成能夠驅動執行機構（如電機、氣缸等）的信號。它具有高精度和高可靠性的特點，能夠保證執行機構按照控制器的指令精確地執行動作。
此外，該驅動單元還具有多種保護和故障診斷功能，能夠在發生故障時及時停機并發出警報，保護設備和人員安全。同時，該驅動單元還支持多種通信協議和接口標準，方便與其他的控制系統進行集成和互聯。
總的來說，3BHE023784R1023 PPD113B01-10-150000 ABB 控制器驅動單元是工業自動化控制系統中不可或缺的一部分，能夠?yàn)楦鞣N自動化應用提供可靠、精準的控制支持。
控制器驅動單元的保護和故障診斷功能是通過多種方式實現的，主要包括以下幾個方面：
綜上所述，控制器驅動單元的保護和故障診斷功能是通過多種方式的綜合應用實現的，這些功能能夠提高工業自動化控制系統的可靠性和安全性。
Modbus是一種用于設備之間通信的應用層協議，主要用于交換自動化領域的典型數據。Modbus協議基于一個簡單的包，稱為協議數據單元 (PDU)，由請求（由客戶端發出）和響應（由服務器發出）組成。該協議規范定義了三種類型的 PDU：請求 PDU，包括：指定功能的代碼（功能代碼，1 字節）和功能特定數據（功能數據，可變字節數）；響應 PDU，包括：請求對應的功能碼（Function Code，1字節）和響應特定數據（響應數據，可變字節數）；異常響應 PDU，包括：請求對應的功能碼+0x80（128），（錯誤碼，1字節）以及指定異常的代碼（異常代碼，1 字節）。
每個功能都分配了一個特定的功能代碼。這些功能代碼的范圍是 1-127（十進制），因?yàn)?29-255（即 1+128-255）代表錯誤代碼的范圍。功能碼分為以下三類：協議里規定好的功能，用戶也可以自定義功能、Public、保證是唯一的，并指定公開記錄的明確定義的功能。這些由社區驗證并且存在一致性測試、讀離散輸入、讀寫線圈、讀輸入寄存器、讀寫保持寄存器、User-Defined、可用于用戶定義的函數，因此它們的代碼可能不是唯一的。該規范為用戶定義的函數定義了代碼范圍 65-72 和 100-110、保留、這些目前被一些公司用于遺留產品，不能公開使用函數的文檔包括：函數的描述（即它的用途）、它的參數和返回值（包括可能的異常）。
此外，Modbus協議也實現了串行通信。最常見的串行通信形式是異步串行網絡通信，應用層協議直接在串行接口和串行通信標準之上運行。其中，Modbus協議通過附加字段擴展了PDU，將PDU包裝到一個帶有標頭和錯誤校驗和的包中。這種實現使用的是RTU幀或ASCII碼幀。RTU幀以二進制傳輸以實現更高的密度，而ASCII碼幀被編碼為每個字節兩個ASCII字符，代表字節的十六進制表示法。
3BHE023784R1023 PPD113B01-10-150000 ABB controller drive unit is a drive component specifically designed for ABB industrial automation control systems.
The main function of this driving unit is to receive instructions from the controller and convert these instructions into signals that can drive the executing mechanism (such as motors, cylinders, etc.). It has the characteristics of high precision and high reliability, which can ensure that the executing mechanism executes actions accurately according to the instructions of the controller.
In addition, the driver unit also has various protection and fault diagnosis functions, which can stop the machine in a timely manner and issue an alarm in the event of a fault, protecting equipment and personnel safety. At the same time, the driver unit also supports multiple communication protocols and interface standards, facilitating integration and interconnection with other control systems.
Overall, the 3BHE023784R1023 PPD113B01-10-150000 ABB controller driver unit is an indispensable part of industrial automation control systems, providing reliable and accurate control support for various automation applications.
The protection and fault diagnosis functions of the controller driver unit are achieved through various methods, mainly including the following aspects:
Sensor monitoring: The controller drive unit is usually equipped with multiple sensors, such as temperature sensors, current sensors, pressure sensors, etc., to monitor the operating status of the drive unit. By monitoring the data of these sensors in real-time, the controller driver unit can promptly detect abnormal situations and take corresponding protective measures.
Fault diagnosis algorithms: The drive unit of the controller usually integrates fault diagnosis algorithms, which can analyze the operating status of the drive unit in real time. By comparing historical and current data, abnormal situations are identified, and faults are classified and located.
Exception handling mechanism: When the sensor detects an abnormal situation or the fault diagnosis algorithm identifies a fault, the controller driving unit will take corresponding exception handling mechanisms, such as shutdown, reducing output torque, switching backup modules, etc., to protect the safety of equipment and personnel.
Alarm and log recording: The controller driver unit will also emit alarm signals through sound, light, and other means to remind operators to handle faults in a timely manner. At the same time, it will record fault information and related data in a log, facilitating subsequent analysis and processing.
Communication protocols and interface standards: The controller driver unit usually supports multiple communication protocols and interface standards, such as Modbus, Profibus, EtherNet/IP, etc. Through these communication protocols and interface standards, the controller driver unit can interact with other control systems to achieve remote monitoring and fault diagnosis.
In summary, the protection and fault diagnosis functions of the controller driver unit are achieved through multiple comprehensive applications, which can improve the reliability and safety of industrial automation control systems.
