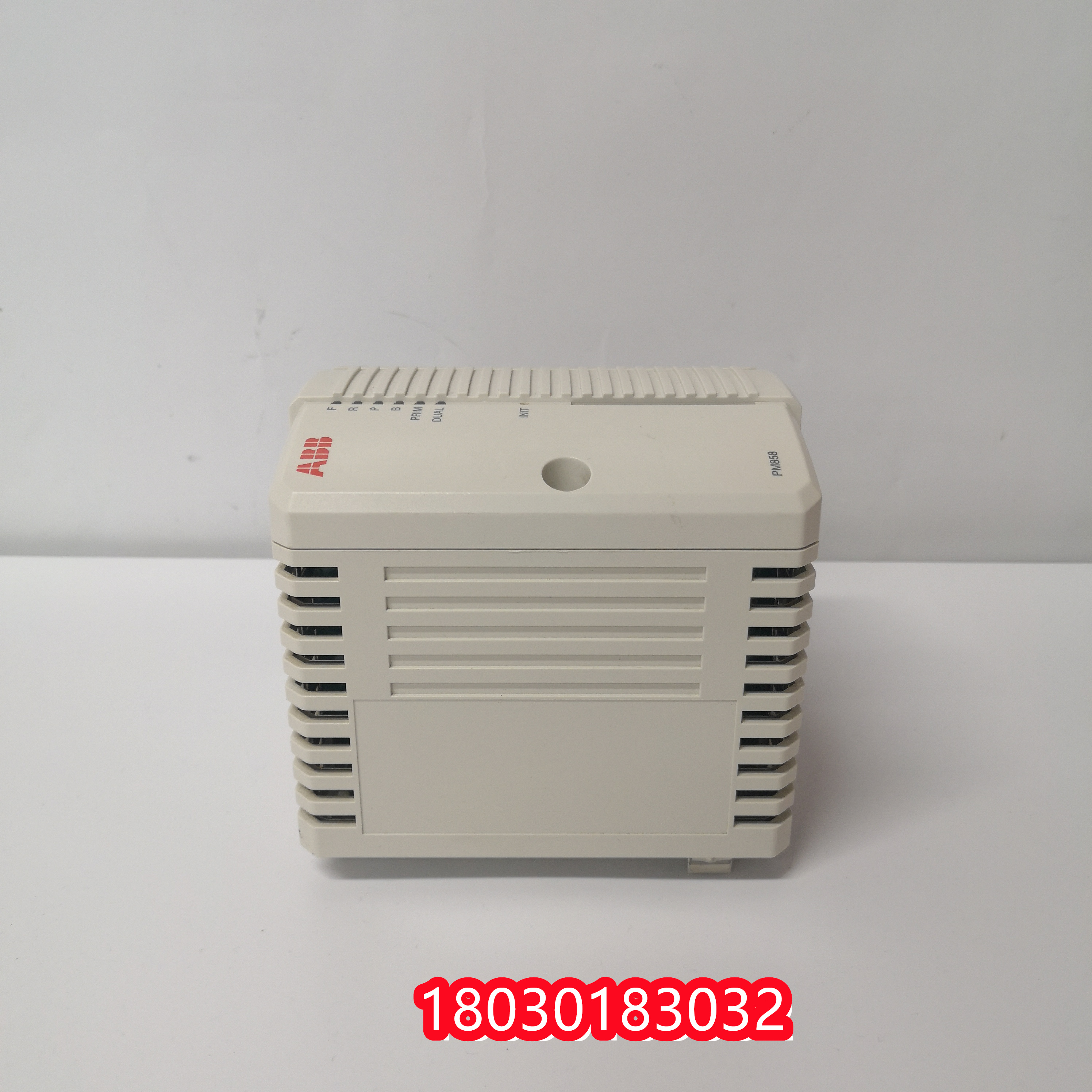

技術說明：PM858 3BSE093350R1 ABB  CPU 可編程控制器

CPU板包含微處理器和RAM內存、實時時鐘、LED指示燈、INIT按鈕和CompactFlash接口。

PM858控制器的底板上有2個RJ45以太網接口(CN1、CN2)和2個RJ45串口(COM3、COM4)，用于連接到控制網絡。其中一個串口(COM3)是帶有調制解調器控制信號的RS-232C端口，而另一個端口(COM4)是隔離的，用于連接配置工具?？刂破髦С諧PU冗余，提供更高的可用性(CPU、cex總線、通信接口和S800 1/O)。

簡單的DIN導軌連接/分離程序，使用獨特的滑動和鎖定機制。所有的底板都有一個唯一的以太網地址，它為每個CPU提供了一個硬件標識。該地址可以在TP830底板上的以太網地址標簽上找到。

(僅兼容System 800xA 6.0.2,Compact Control Builder 6.0.0-1及以上版本。請參閱產品更新了解更多信息。)特點和優點

ISA安全認證-了解更多

·可靠性和簡單的故障診斷程序模塊化，允許逐步擴展

-IP20級防護，不需要外殼

控制器可配置800xA控制生成器控制器通過EMC全認證

·Cex總線采用一對BC810/ BC820·基于最佳通信連接標準的硬件(以太網、PROFIBUS、DP等)-內置冗余以太網通信端口

一般信息

貨號3bse082895r1 (PM858KO1)沒有冗余

高誠信no

時鐘頻率33 Mhz

性能，1000布爾運算0.36毫秒性能0.36 ms

內存16mb

應用程序可用RAM 7.147 MB閃存存儲是的

詳細的數據環境與認證

●所有產品圖片均為真實，如果您需要更多照片，請聯系我們。

●所有售出的產品質量保證一年，如果有質量問題我們可以給您更換或退回。

●我們是中國最大的工控產品供應商，如果您需要其他類型的產品，請向我們咨詢，我們會立即給您答復。

●如果您購買的不止一個，我們會給您折扣，如果您收到價格，請與我們聯系，我們將盡力讓您滿意，我們的客戶來自世界各地，歡迎來到中國。

The CPU board contains the microprocessor and RAM memory, real-time clock, LED indicator, INIT button, and CompactFlash interface.

The mainboard of the PM858 controller has two RJ45 Ethernet ports (CN1 and CN2) and two RJ45 serial ports (COM3 and COM4) for connecting to the control network. One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool. The controller supports CPU redundancy and provides higher availability (CPU, cex bus, communication interface, and S800 1/O).

Simple DIN rail connection/separation procedure with unique sliding and locking mechanisms. All baseboards have a unique Ethernet address, which provides a hardware identity for each CPU. This address can be found on the Ethernet address label on the TP830 baseboard.

(Only compatible with System 800xA 6.0.2,Compact Control Builder 6.0.0-1 and later versions. See Product updates for more information.) Features and advantages

ISA Security Certification - Learn more

· Reliability and simple fault diagnosis procedures are modular, allowing for gradual expansion

-IP20 protection, no enclosure required

The controller can be configured with 800xA Control Generator The controller is fully EMC certified

·Cex bus with a pair of BC810/ BC820· Hardware based on the best communication connection standards (Ethernet, PROFIBUS, DP, etc.)- built-in redundant Ethernet communication ports

General information

Item number 3bse082895r1 (PM858KO1) has no redundancy

High integrity no

The clock frequency is 33 Mhz

Performance, 1000 Boolean operation 0.36ms performance 0.36ms

Memory 16mb

Application available RAM 7.147MB flash storage yes

Detailed data environment and authentication
