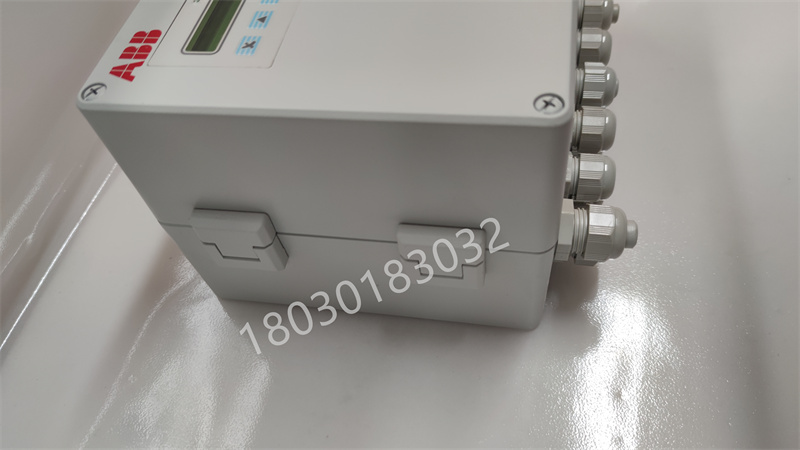

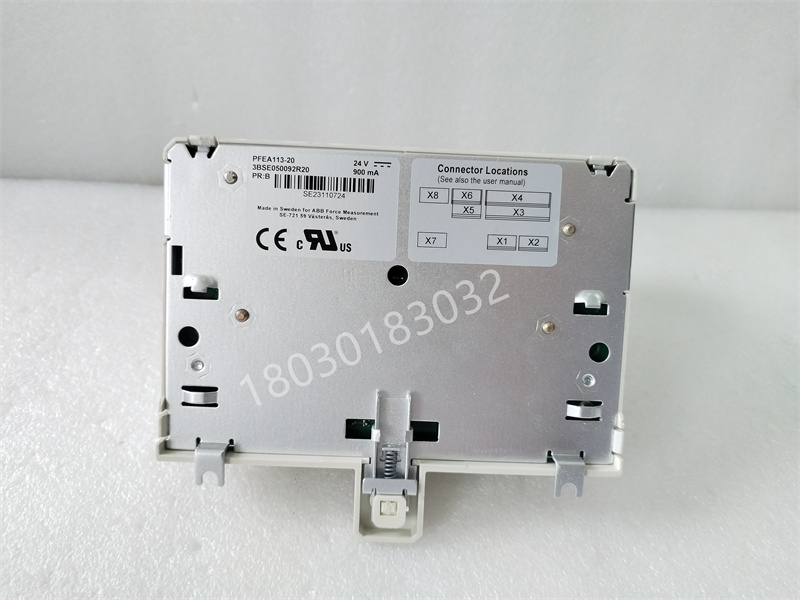

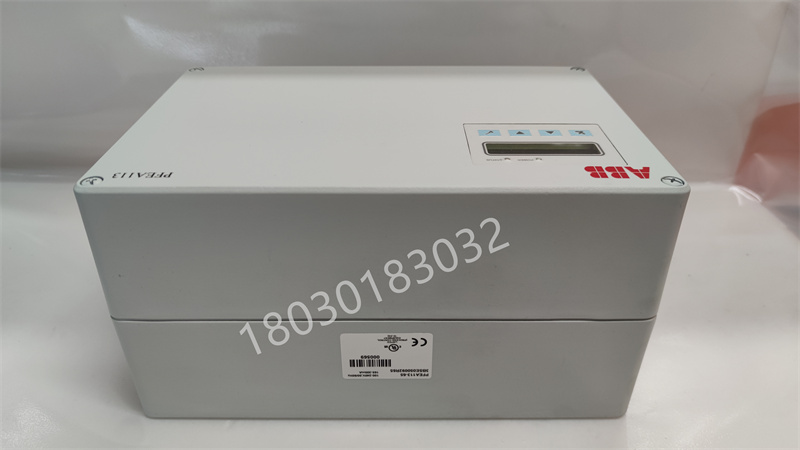

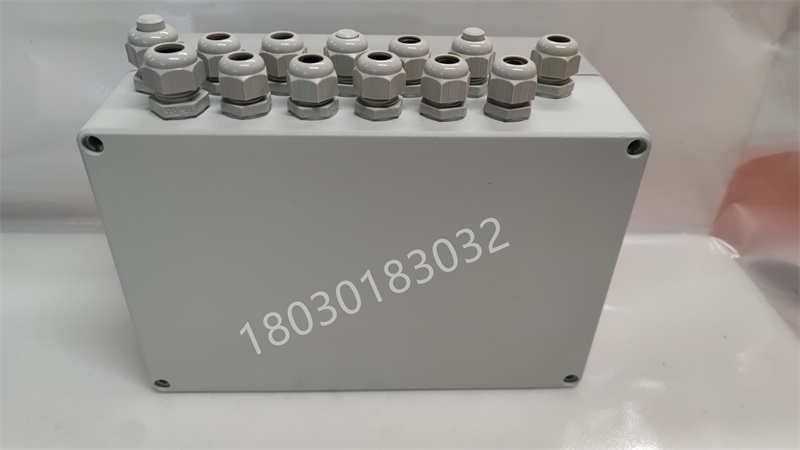

ABB PFEA113-IP20并非直接作為張力傳感器存在，而是屬于ABB PFEA113系列張力控制器中的一款具有IP20防護等級的產品
IP20防護等級：PFEA113-IP20表示該產品具有IP20的防護等級，意味著它能夠防止直徑大于12.5mm的固體異物進入設備內部，但不適用于潮濕或有水滴的環境，通常需要安裝在干燥的控制柜內。
實時監控與故障記錄：通過HMI或上位機軟件顯示張力實際值、設定值、輸出信號等參數，并存儲最近100條故障信息，便于快速定位問題。
ABB PFEA113-IP20 does not exist directly as a tension sensor, but is a product with IP20 protection level in the ABB PFEA113 series tension controller
1、 Product Overview
Product series: ABB PFEA113 series tension controller is a series of high-performance tension measurement and control equipment produced by ABB, widely used in various industrial fields that require tension control.
Product features: This series of controllers is known for its high precision, stability and reliability, ease of integration, strong adaptability, and user friendliness.
IP20 protection level: PFEA113-IP20 indicates that the product has an IP20 protection level, which means it can prevent solid foreign objects with a diameter greater than 12.5mm from entering the interior of the equipment. However, it is not suitable for humid or water droplet environments and usually needs to be installed in a dry control cabinet.
2、 Core functions and features
High precision measurement and control: Advanced sensor technology and signal processing algorithms are used to achieve precise measurement and control of tension, meeting various high-precision tension control requirements.
Stable performance: able to maintain stable tension measurement and control under various harsh environmental conditions, ensuring the stability of the production process and consistency of product quality.
Multiple communication interfaces and expansion capabilities: Supports multiple communication protocols such as serial communication (such as RS232, RS485, etc.) and Ethernet interfaces, making it easy to integrate with other devices or control systems. At the same time, the modular design supports expansion modules and flexibly adapts to different sensors and actuators.
Programmable: Users can configure and adjust tension control parameters according to their actual needs, with a friendly human-machine interface and simple programming methods, making it convenient for users to configure, debug, and maintain.
Adaptive PID control: Automatically adjust PID parameters based on material properties (such as elastic modulus, thickness) and operating conditions (speed, acceleration), reducing manual debugging time.
Conical tension control: supports linear taper and S-shaped taper, and avoids internal tightness and external looseness of the coil through preset tension gradient.
Speed compensation: Adjust the tension setting value in real-time based on the spindle speed to prevent material stretching and deformation.
Real time monitoring and fault recording: Display the actual tension value, set value, output signal and other parameters through HMI or upper computer software, and store the last 100 fault information for quick problem location.
3、 Technical parameters
Number of control channels: 1 (single channel model, supports expansion to 4 channels)
Control method: PID closed-loop control (supporting self-tuning function)
Tension measurement range: 0.1~2000N (adjustable according to sensor range, maximum expandable to 5000N)
Control accuracy: steady-state condition ≤ ± 0.5% set value, dynamic condition ≤ ± 1% set value
Response time: ≤ 10ms (time from tension change to output stability of 90%)
Working temperature range: -10 ℃~+55 ℃ (storage temperature: -25 ℃~+70 ℃)
Electrical parameters: Power supply 24V DC ± 10% (power consumption ≤ 15W), supports multiple input/output signals
Mechanical parameters: dimensions (width x height x depth) 105mm x 160mm x 120mm (DIN rail installation, occupying 4TE space), weight ≈ 0.8kg
4、 Application scenarios
Printing and coating: Ensure that the coil maintains appropriate tension throughout the entire production line to achieve high-quality output.
Stretching and Extrusion: Used in industries such as plastics and rubber to ensure precise control of material tension during the production process.
Winding: Used in the process of winding paper, metal, and plastic to adjust the winding speed to maintain appropriate tension and prevent material breakage or damage.
Textile industry: Control the tension of yarn or fabric to ensure the quality and consistency of production.
Packaging industry: Ensure the tightness and stability of packaging materials, especially for packaging of films, paper, or other rolls.
Metal processing and cable manufacturing: Maintain appropriate tension to ensure smooth operation of the production line and prevent product damage.
