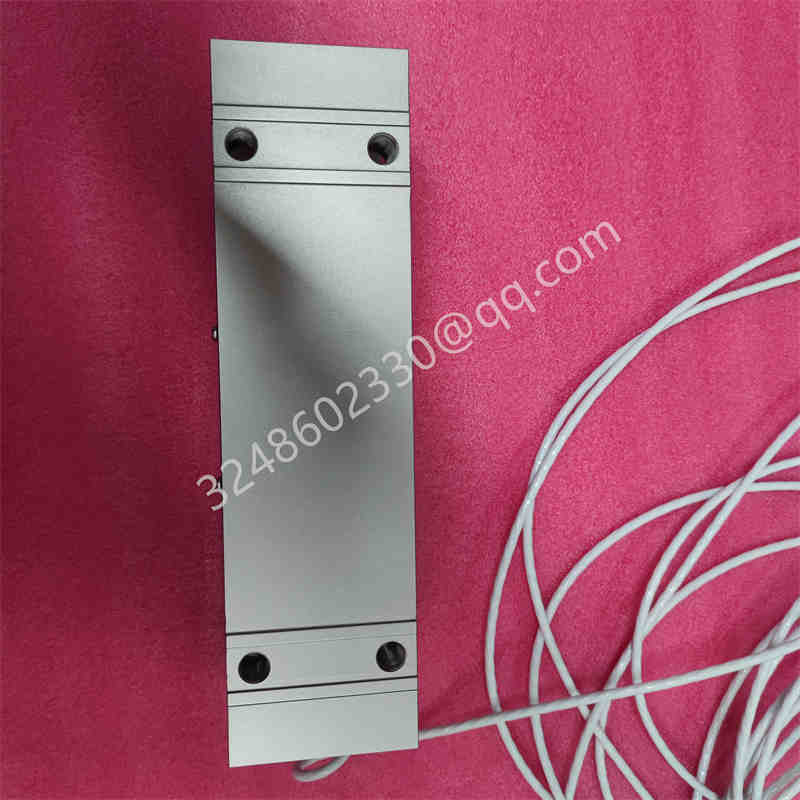

ABB稱重傳感器 PFTL101BE-20.0kN 3BSE004217R1

主要特點與優勢

• 高過載能力：靜態安全載荷達 150 % F.S.，瞬時沖擊載荷 300 % F.S.，有效避免意外軋制力損壞。
• 免維護密封：IP66 全焊接不銹鋼外殼，耐油、耐濕、耐化學腐蝕，適用于惡劣工況。
• 極低漂移：壓磁原理無彈性體蠕變，長期穩定性 ≤ ±0.1 % F.S./年，減少現場標定頻次。
• 即插即用：標準 4-20 mA 兩線制輸出，與 ABB PFEA 系列張力控制器或第三方 PLC 快速對接。
• 寬溫運行：-30 °C…+80 °C 工作溫度范圍，內置溫度補償，保證全量程精度。

技術規格

典型應用

• 造紙機：卷取部張力閉環，防止斷紙與褶皺。
• 金屬軋制：冷軋/熱軋機架間張力監測，提升板形質量。
• 薄膜拉伸：同步拉伸線張力匹配，避免膜厚不均。
• 線纜行業：絞線機放卷張力控制，保證導體節距一致。

相關產品

• PFEA113-20 3BSE050092R20：ABB 張力控制器，與 PFTL101BE-20.0kN 配套實現 PID 張力調節。
• PFTL101B-10.0kN 3BSE004197R1：同系列 10 kN 版本，適用于中等張力場合。
• PFTL201C-50kN 3BSE007913R50：更高量程壓頭，滿足重型軋機需求。

ABB weighing sensor PFTL101BE-20.0kN 3BSE004217R1

Product Overview:

PFTL101BE-20.0kN 3BSE004217R1 is a pressure magnetic weighing sensor (also known as a tension head) in the ABB tension control series, designed for continuous and high-precision measurement of vertical or radial tension in the range of 0-20 kN. The sensor adopts a stainless steel sealed structure with built-in pressure magnetic induction elements, which can be directly installed under the roller bearing seat to convert mechanical loads into high-level analog signals, providing real-time tension closed-loop data for continuous production lines such as papermaking, metal, and film.

Main features and advantages

High overload capacity: Static safe load up to 150% F.S., instantaneous impact load up to 300% F.S., effectively avoiding accidental rolling force damage.

Maintenance free sealing: IP66 fully welded stainless steel shell, resistant to oil, moisture, and chemical corrosion, suitable for harsh working conditions.

Extremely low drift: The piezoelectric principle has no elastic creep, and the long-term stability is ≤± 0.1% F.S./year, reducing the frequency of on-site calibration.

Plug and play: Standard 4-20 mA two-wire output, quickly compatible with ABB PFEA series tension controllers or third-party PLCs.

Wide temperature operation: -30 ° C...+80 ° C operating temperature range, built-in temperature compensation to ensure full range accuracy.

technical specifications

Project parameter values

Model PFTL101BE-20.0kN 3BSE004217R1

Rated range 0-20 kN

Safe overload 150% F.S

Extreme overload of 300% F.S

Output signal 4-20 mA (two-wire system)

Comprehensive accuracy ± 0.5% F.S

Working voltage 12-30 V DC

Protection level IP66

Material: Stainless Steel 1.4542

Working temperature -30 ° C...+80 ° C

Installation thread M12 × 1.75 (standard), optional flange

Weight ≈ 10.1 kg

Typical applications

Paper machine: The tension loop of the winding part is closed to prevent paper breakage and wrinkles.

Metal rolling: tension monitoring between cold/hot rolling stands to improve the quality of plate shape.

Thin film stretching: synchronized stretching line tension matching to avoid uneven film thickness.

Cable industry: Twister unwinding tension control to ensure consistent conductor pitch.

Related products

PFEA113-20 3BSE050092R0: ABB tension controller, matched with PFTL101BE-20.0kN to achieve PID tension regulation.

PFTL101B-10.0kN 3BSE004197R1: Same series 10 kN version, suitable for medium tension applications.

PFTL201C-50kN 3BSE007913R50: Higher range indenter to meet the requirements of heavy-duty rolling mills.

PFTL101BE-20.0kN 3BSE004217R1 has become the preferred choice for high-precision tension measurement in continuous production lines due to its high overload, maintenance free, and plug and play advantages.
