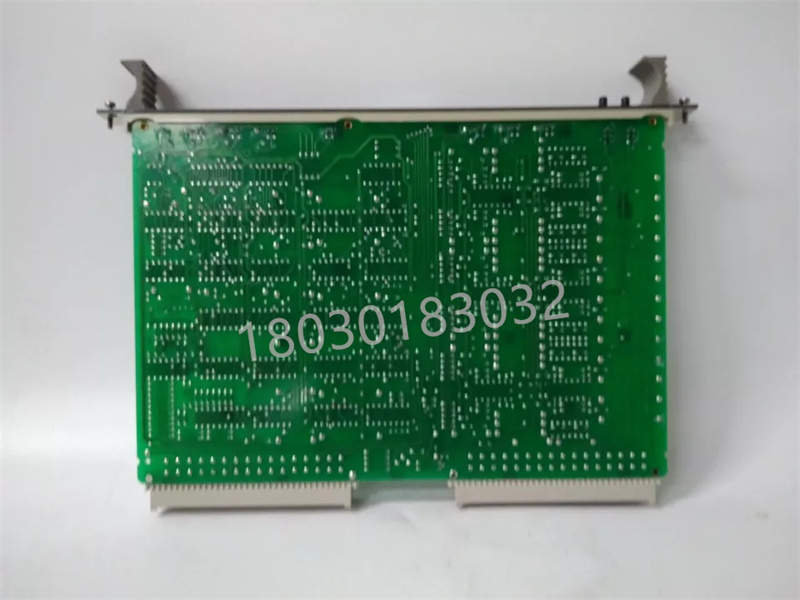

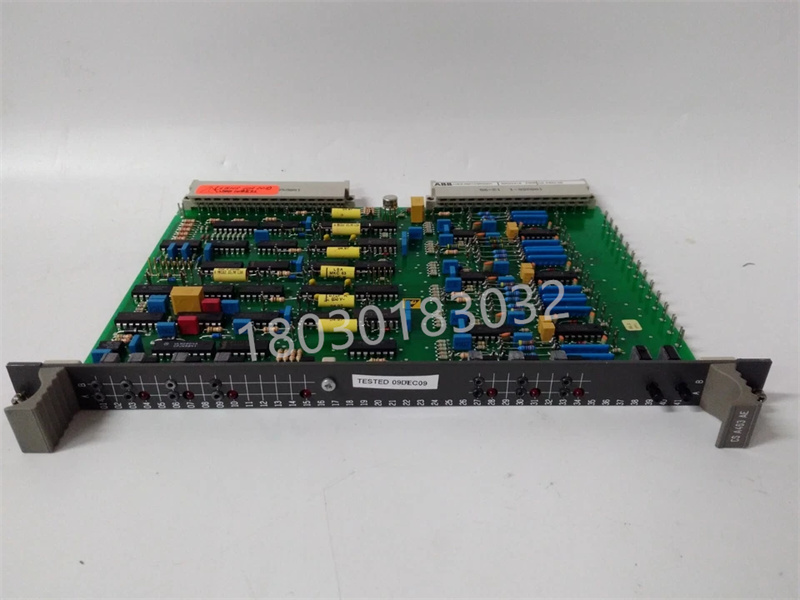

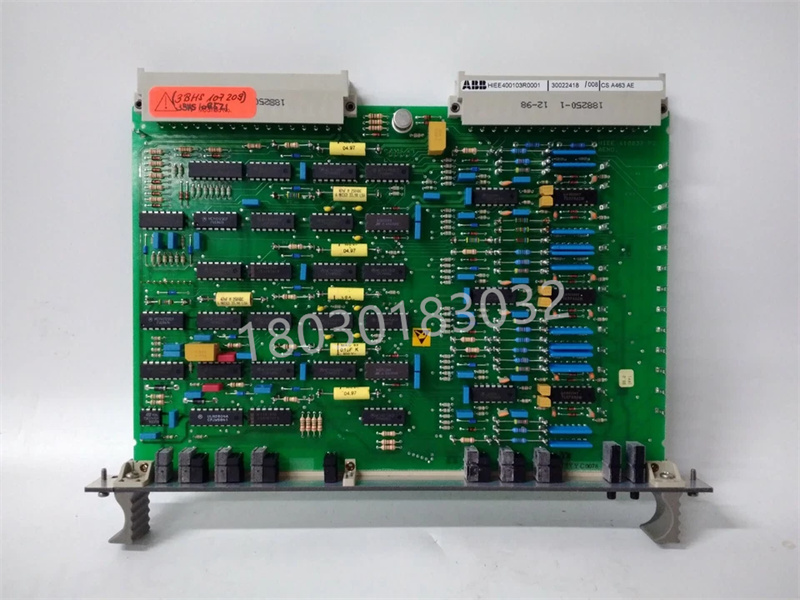

ABB CSA463AE HIEE400103R0001 監測模塊
產品概述
ABB CSA463AE HIEE400103R0001 是一款高性能的工業監測模塊，專為工業自動化控制系統設計。該模塊能夠?qū)崟r監測和記錄關鍵參數，如溫度、壓力、流量、電流、電壓等，確保生產過程的安全穩定運行。
技術規格
電源規格：24V DC 或 48V DC。
工作電流：支持 100-400A 范圍內的電流監測。
輸入信號：電壓、電流、功率、溫度、壓力和流量等電氣參數。
輸出信號：模擬量輸出（如 0~10V DC）、數字量輸出和通信信號。
工作溫度范圍：-40°C 至 +70°C。
防護等級：IP67。
尺寸：100mm×50mm×25mm。
重量：約 2KG。
通信接口：支持 RS485、Ethernet 等通信協議。
數據存儲與歷史記錄：具備數據存儲功能，支持歷史數據的分析與記錄。
功能特點
高精度監測：能夠連續測量和記錄電壓、電流、功率等關鍵電氣參數。
快速響應：具備高速采樣頻率，能夠?qū)崟r響應工業環境中的變化。
易于集成：支持多種通信協議，允許與各種系統集成并擴展功能。
高可靠性：采用高品質原料，確保長期穩定運行。
用戶友好界面：提供直觀的用戶界面和配置工具，簡化操作。
模塊化設計：由監控模塊、接口模塊、通信模塊和供電模塊組成，各組件可獨立升級或替換。
多種保護功能：具備過流保護、過壓保護等多種保護功能。
應用領域
電力系統保護與控制：用于變電站、發電廠和配電系統的電力保護與控制。
工業自動化：用于生產線、工藝流程等工業自動化系統的監控與優化。
能源管理：用于能源系統的監控與管理，提高運行效率。
交通與物流：用于港口起重機負載監測，鐵路信號系統狀態診斷。
ABB CSA463AE HIEE400103R0001 Monitoring Module
product overview
ABB CSA463AE HIEE400103R0001 is a high-performance industrial monitoring module designed specifically for industrial automation control systems. This module can monitor and record key parameters in real time, such as temperature, pressure, flow rate, current, voltage, etc., to ensure the safe and stable operation of the production process.
technical specifications
Power specifications: 24V DC or 48V DC.
Working current: Supports current monitoring within the range of 100-400A.
Input signals: electrical parameters such as voltage, current, power, temperature, pressure, and flow rate.
Output signals: analog output (such as 0-10V DC), digital output, and communication signals.
Working temperature range: -40 ° C to+70 ° C.
Protection level: IP67.
Size: 100mm x 50mm x 25mm.
Weight: Approximately 2KG.
Communication interface: Supports communication protocols such as RS485 and Ethernet.
Data storage and historical recording: It has data storage function and supports the analysis and recording of historical data.
Functional Features
High precision monitoring: capable of continuously measuring and recording key electrical parameters such as voltage, current, and power.
Fast response: With high-speed sampling frequency, it can respond in real-time to changes in industrial environments.
Easy to integrate: Supports multiple communication protocols, allowing integration with various systems and expanding functionality.
High reliability: Using high-quality raw materials to ensure long-term stable operation.
User friendly interface: Provides an intuitive user interface and configuration tools to simplify operations.
Modular design: composed of monitoring module, interface module, communication module, and power supply module, each component can be independently upgraded or replaced.
Multiple protection functions: It has multiple protection functions such as overcurrent protection and overvoltage protection.
application area
Power system protection and control: used for power protection and control in substations, power plants, and distribution systems.
Industrial automation: used for monitoring and optimizing industrial automation systems such as production lines and process flows.
Energy management: used for monitoring and managing energy systems to improve operational efficiency.
Transportation and Logistics: Used for load monitoring of port cranes and status diagnosis of railway signal systems.
