MOXA EDS-308-MM-SC 交換機
產品概述
MOXA EDS-308-MM-SC 是一款高性能的非網管型工業以太網交換機,專為工業自動化、交通監控、能源管理等嚴苛環境下的網絡通信需求而設計。它具備高可靠性、穩定性和抗干擾能力,能夠確保網絡通信的順暢運行。

技術規格

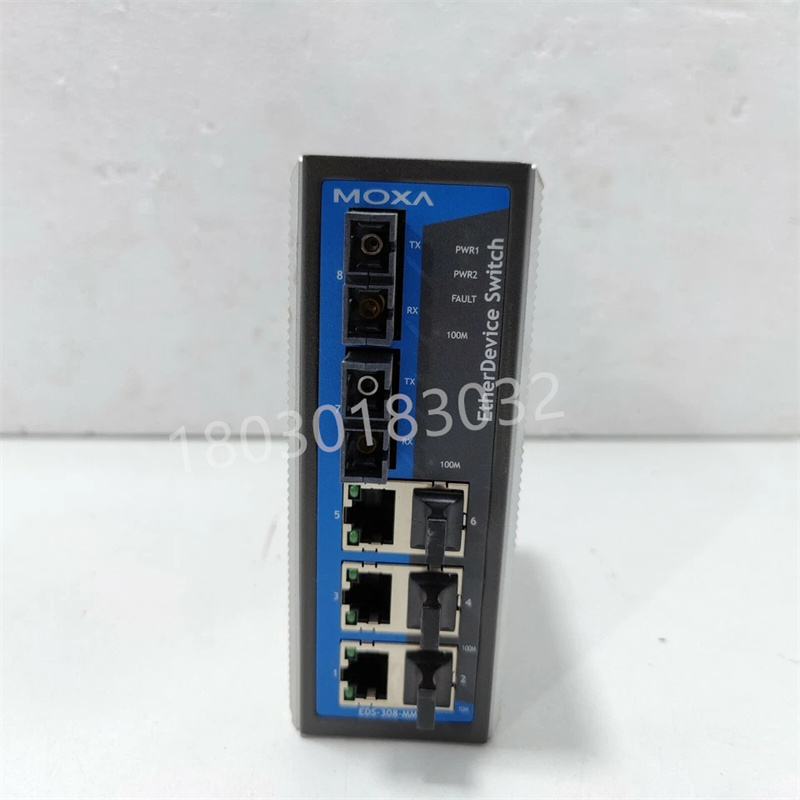

端口配置:
6 個 10/100BaseT(X) 以太網端口(RJ45 連接器)。
2 個 100BaseFX 多模光纖端口(SC 連接器)。
傳輸速率:10/100 Mbps。
電源電壓:12-48V DC。
工作溫度:0°C 至 60°C。
存儲溫度:-40°C 至 85°C。
濕度范圍:5% 至 95%(無凝結)。
尺寸:53.6 x 135 x 105 mm。
重量:0.63 kg。
防護等級:IP30。

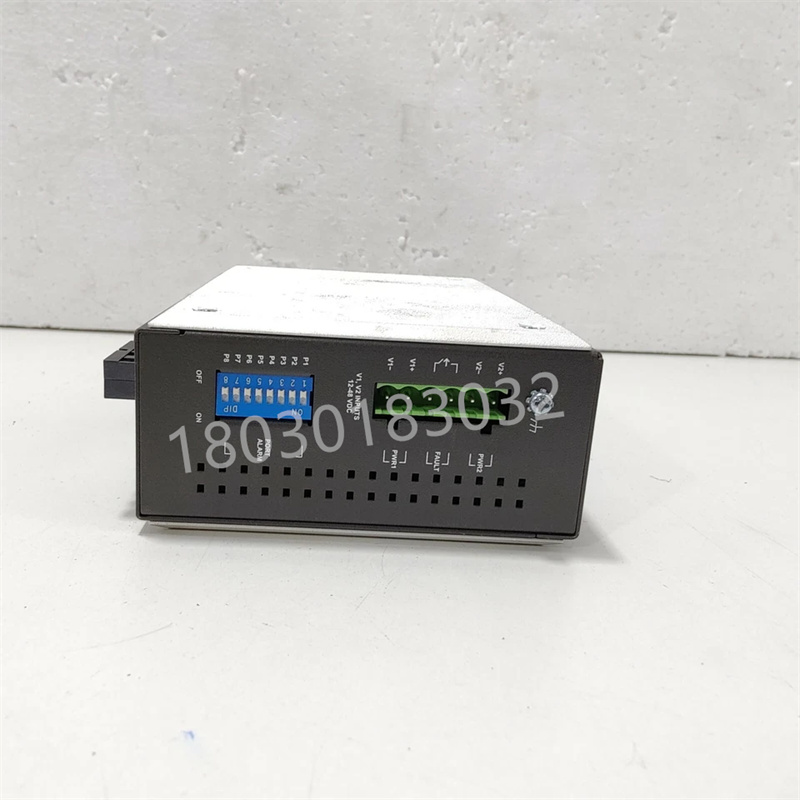

安裝方式:DIN 導軌安裝或壁掛式安裝(需選配安裝套件)。
報警功能:1 個繼電器輸出,用于電源故障或端口中斷報警。
傳輸距離:
多模光纖:2 km。
單模光纖:可達 40 km。

功能特點
高可靠性:設計用于惡劣工業環境,具備冗余雙電源輸入和過載電流保護。
智能報警:內嵌智能報警功能,幫助系統維護與監控網絡運行狀況。
多種網絡標準支持:支持 IEEE 802.3、IEEE 802.3u 和 IEEE 802.3x。
流量控制:支持 IEEE 802.3x 流量控制。
VLAN 支持:支持 VLAN 功能。
環網冗余:不支持環網冗余。
網管功能:不支持網管功能。
應用場景
工業自動化:在汽車制造、電子制造等行業中,用于連接自動化設備。
交通監控:在鐵路沿線部署,實現長距離數據傳輸。
能源管理:在電力系統中,用于設備之間的網絡連接。
智能交通:在交通信號系統中,確保網絡的穩定運行。
認證與標準
認證:CE, FCC, UL, cUL, RoHS。
抗沖擊與抗振動:符合 IEC 60068-2-27 和 IEC 60068-2-32 標準。

MOXA EDS-308-MM-SC Switch product overview MOXA EDS-308-MM-SC is a high-performance unmanaged industrial Ethernet switch designed specifically for network communication needs in harsh environments such as industrial automation, traffic monitoring, and energy management. It has high reliability, stability, and anti-interference ability, which can ensure the smooth operation of network communication. technical specifications Port configuration: 6 10/100BaseT (X) Ethernet ports (RJ45 connectors). 2 100BaseFX multimode fiber ports (SC connectors). Transmission rate: 10/100 Mbps. Power supply voltage: 12-48V DC. Working temperature: 0 ° C to 60 ° C. Storage temperature: -40 ° C to 85 ° C. Humidity range: 5% to 95% (no condensation). Size: 53.6 x 135 x 105 mm. Weight: 0.63 kg. Protection level: IP30. Installation method: DIN rail installation or wall mounted installation (optional installation kit required). Alarm function: 1 relay output, used for power failure or port interruption alarm. Transmission distance: Multimode fiber: 2 km. Single mode fiber: up to 40 km. Functional Features High reliability: designed for harsh industrial environments, with redundant dual power inputs and overload current protection. Intelligent alarm: Embedded intelligent alarm function, helping the system maintain and monitor the network operation status. Multiple network standards supported: Supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x. Traffic control: Supports IEEE 802.3x traffic control. VLAN support: Supports VLAN functionality. Ring network redundancy: Ring network redundancy is not supported. Network management function: does not support network management function. Application scenarios Industrial automation: used to connect automation equipment in industries such as automotive manufacturing and electronics manufacturing. Traffic monitoring: deployed along railway lines to achieve long-distance data transmission. Energy management: In the power system, it is used for network connections between devices. Intelligent transportation: Ensure the stable operation of the network in the traffic signal system. Certification and Standards Certification: CE, FCC, UL, cUL, RoHS. Anti impact and anti vibration: Complies with IEC 60068-2-27 and IEC 60068-2-32 standards.
