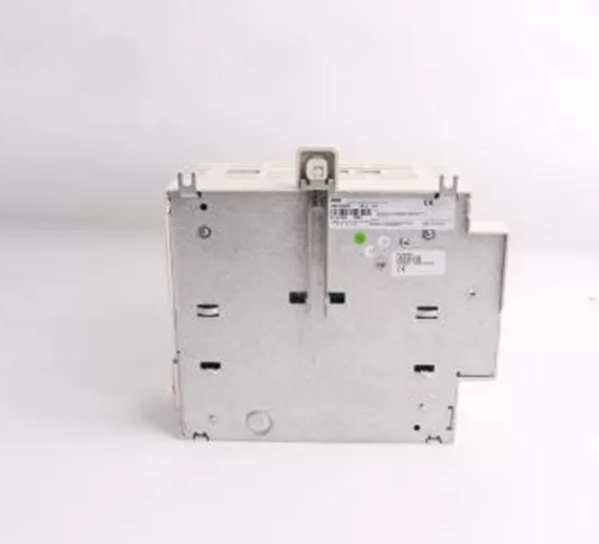

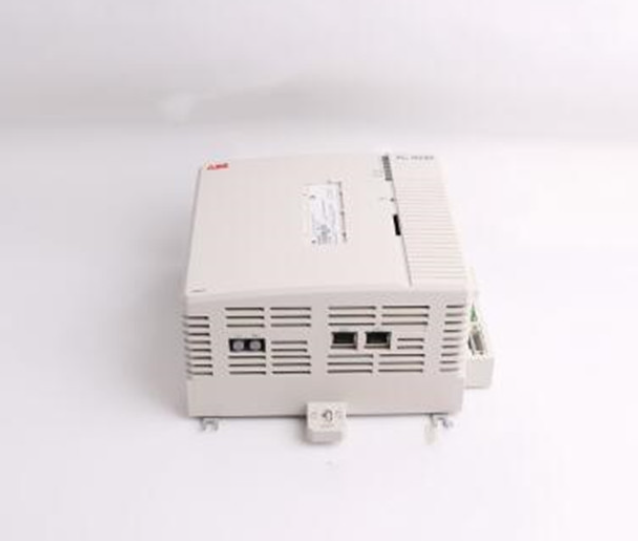

### ABB PM891K01 中央處理器單元
#### 產品概述
ABB PM891K01 是一款高性能冗余中央處理器單元，屬于 ABB Ability? System 800xA? 分布式控制系統。它專為滿足石油和天然氣、發電、化工等行業的復雜控制和自動化需求而設計。
#### 技術規格
- **處理器**：高性能多核處理器，主頻450MHz。
- **內存**：256MB RAM。
- **通信接口**：
- 2個RJ45以太網端口（CN1、CN2）。
- 1個RJ45串行端口（COM4，用于配置工具）。
- **擴展總線**：通信擴展總線（CEX總線），支持連接多個擴展模塊。
- **I/O連接**：通過Optical Modulebus連接器，可連接最多七個集群的S800 I/O單元，每個單元最多包含12個模塊。
- **防護等級**：IP20。
- **工作溫度**：-20°C至+60°C。
- **冗余功能**：支持CPU冗余、通信冗余及電源冗余。
- **重量**：約3.0公斤。
#### 核心特點
- **高性能處理能力**：配備多核處理器和大容量RAM，可同時處理多任務并快速處理海量數據，確保實時控制與復雜運算的高效執行。
- **冗余架構設計**：支持CPU冗余、通信冗余及電源冗余，主處理器故障時備用處理器可無縫接管，保障系統連續運行。
- **靈活擴展與通信能力**：支持多種通信接口和擴展總線，可連接擴展模塊及第三方設備，兼容Modbus、Profibus等協議。
- **高安全性與可靠性**：內置實時時鐘、LED指示燈、INIT按鈕及安全數字接口，具備短路保護、故障自診斷及SIL 1認證。
#### 應用場景
- **流程工業控制**：如化工、石油、天然氣等行業的連續生產過程控制。
- **電力與能源管理**：發電廠、變電站的自動化控制與監控。
- **基礎設施**：水處理、污水處理、軌道交通等領域的自動化系統。
- **復雜機械控制**：如造紙、冶金等行業的生產線控制。
ABB PM891K01 中央處理器單元憑借其高性能、多功能和高可靠性，成為工業自動化和控制系統中的重要組件。
###ABB PM891K01 Central Processing Unit
####Product Overview
ABB PM891K01 is a high-performance redundant central processing unit belonging to ABB Ability ? System 800xA ? Distributed control system. It is designed to meet the complex control and automation needs of industries such as oil and gas, power generation, and chemical.
####Technical specifications
-* * Processor * *: High performance multi-core processor with a clock speed of 450MHz.
-* * Memory * *: 256MB RAM.
-* * Communication interface * *:
-Two RJ45 Ethernet ports (CN1, CN2).
-1 RJ45 serial port (COM4, used for configuration tools).
-Expansion Bus: Communication Expansion Bus (CEX Bus), supporting the connection of multiple expansion modules.
-I/O Connection: Through the Optical Modular Bus connector, up to seven clusters of S800 I/O units can be connected, with each unit containing up to 12 modules.
-Protection level: IP20.
-Working temperature: -20 ° C to+60 ° C.
-* * Redundancy Function * *: Supports CPU redundancy, communication redundancy, and power redundancy.
-Weight: Approximately 3.0 kilograms.
####Core Features
-* * High performance processing capability * *: Equipped with multi-core processors and large capacity RAM, it can simultaneously handle multiple tasks and quickly process massive amounts of data, ensuring efficient execution of real-time control and complex operations.
-* * Redundant architecture design * *: Supports CPU redundancy, communication redundancy, and power redundancy. In the event of a main processor failure, the backup processor can seamlessly take over to ensure the continuous operation of the system.
-Flexible Expansion and Communication Capability: Supports multiple communication interfaces and expansion buses, can connect expansion modules and third-party devices, compatible with protocols such as Modbus and Profibus.
-* * High safety and reliability * *: Built in real-time clock, LED indicator light, Initiat button and safety digital interface, with short circuit protection, fault self diagnosis and SIL 1 certification.
####Application scenarios
-Process industry control: Continuous production process control in industries such as chemical, petroleum, and natural gas.
-Power and Energy Management: Automated Control and Monitoring of Power Plants and Substations.
-Infrastructure: Automated systems in fields such as water treatment, sewage treatment, and rail transit.
-* * Complex mechanical control * *: Production line control in industries such as papermaking and metallurgy.
The ABB PM891K01 central processing unit has become an important component in industrial automation and control systems due to its high performance, versatility, and high reliability.
