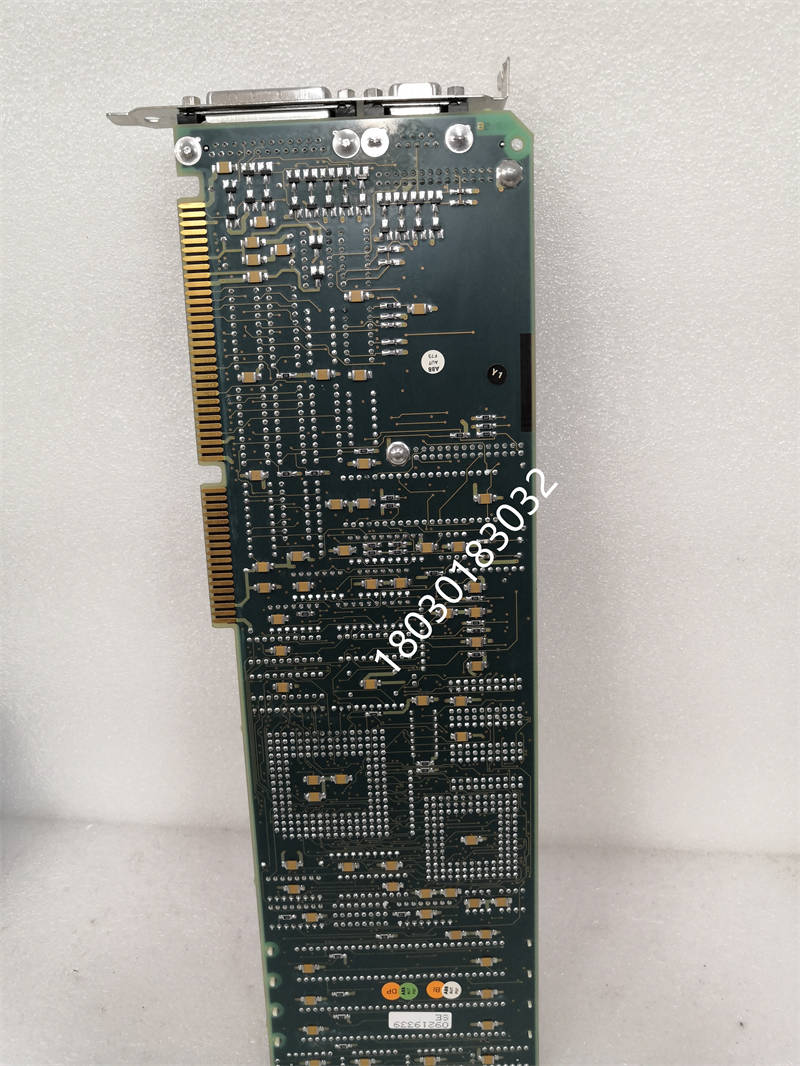

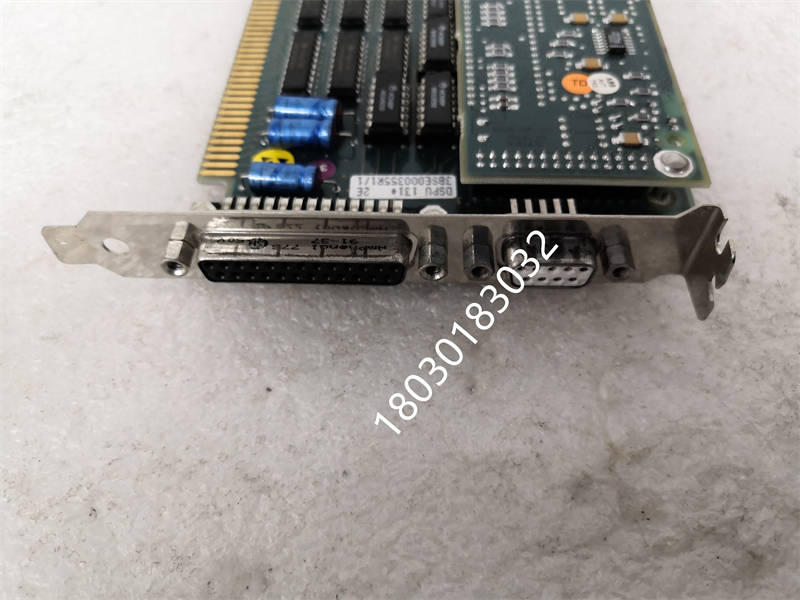

DSPU131 3BSE000355R1 是 ABB 公司生產的一款單元接口板模塊，屬于工業控制系統中的關鍵組件，用于連接不同類型的輸入/輸出（I/O）模塊、通信模塊及其他功能模塊，實現模塊間的信號傳輸與數據交互。
一、產品概述
DSPU131 3BSE000355R1 是一款高性能的單元接口板模塊，專為工業自動化和過程控制領域設計。它采用模塊化結構，便于安裝、維護和更換，提高了系統的靈活性和可擴展性。
二、技術規格與功能特點
處理器與內存
配備 32 位 DSP 芯片，主頻高達 200 MHz，確保高效的數據處理能力。
包含 256 KB RAM 和 512 KB Flash，滿足數據存儲和程序運行的需求。
輸入/輸出接口
提供 32 個數字輸入/輸出口和 8 個模擬輸入/輸出口，支持多種信號類型的連接。
數字輸入/輸出支持單端和差分輸入，輸出類型為繼電器，滿足不同應用場景的需求。
通信接口
支持 RS-485 和以太網通信協議，便于與其他模塊或控制系統進行數據交換和通信。
具備多個以太網端口，可連接到其他設備和網絡，實現高速、可靠的數據傳輸。
模塊化設計
采用模塊化結構，便于安裝、維護和更換，降低了系統的維護成本。
支持靈活的配置選項，可根據系統的需要進行定制和擴展。
可靠性與穩定性
遵循嚴格的制造和質量控制標準，確保在各種工業環境中穩定可靠地運行。
具有高可靠性和穩定性，能夠長時間穩定運行，并確保系統的安全和可靠性。
可編程性與安全性
支持一定程度的自定義配置和編程，以適應不同的應用場景和需求。
具有安全性，可以保護工業過程和機器不受外部干擾和攻擊。
三、應用領域
DSPU131 3BSE000355R1 廣泛應用于工業自動化和過程控制領域，特別是在需要實現不同模塊之間互聯互通的場景中表現出色。以下是其主要應用領域：
工業自動化系統
作為不同 I/O 模塊、通信模塊和其他設備之間有效傳輸和共享數據的橋梁。
可以處理來自傳感器、執行器和其他設備的數字信號和模擬信號，從而實現對自動化生產線的監控。
電機控制領域
接收來自電機編碼器、溫度傳感器和其他設備的信號，經過處理后控制電機運行，實現精確的速度控制、位置控制和轉矩控制。
可與其他控制模塊通信，實現遠程電機監控和故障診斷，提高電機效率和可靠性。
機器人控制系統
作為機器人的大腦，接收來自傳感器、執行器和其他設備的信號，控制機器人的軌跡、姿態和動作。
可以實現機器人的高精度定位、快速響應和復雜動作的執行，提高機器人的工作效率和安全性。
過程控制系統
在化工、石油、制藥等行業，可用作過程控制系統，接收傳感器和儀表的信號，控制生產過程中的溫度、壓力、流量等參數，確保過程的穩定性和安全性。
同時，它還可以與其他控制系統通信，實現對生產過程的遠程監控和故障診斷，提高生產效率和產品質量。
DSPU131 3BSE000355R1 is a unit interface board module produced by ABB, which is a key component in industrial control systems. It is used to connect different types of input/output (I/O) modules, communication modules, and other functional modules to achieve signal transmission and data exchange between modules.
1、 Product Overview
DSPU131 3BSE000355R1 is a high-performance unit interface board module designed specifically for the fields of industrial automation and process control. It adopts a modular structure, which is easy to install, maintain, and ｒｅｐｌａｃｅ, improving the flexibility and scalability of the system.
2、 Technical specifications and functional features
Processor and Memory
Equipped with a 32-bit DSP chip with a clock frequency of up to 200 MHz, ensuring efficient data processing capabilities.
Contains 256 KB RAM and 512 KB Flash, meeting the needs of data storage and program execution.
Input/output
Provide 32 digital input/output ports and 8 analog input/output ports, supporting connections for multiple signal types.
Digital input/output supports single ended and differential input, with relay output type to meet the needs of different application scenarios.
communication interface
Supports RS-485 and Ethernet communication protocols, facilitating data exchange and communication with other modules or control systems.
Equipped with multiple Ethernet ports, it can connect to other devices and networks, achieving high-speed and reliable data transmission.
Modular design
Adopting a modular structure facilitates installation, maintenance, and replacement, reducing the maintenance cost of the system.
Supports flexible configuration options that can be customized and expanded according to the needs of the system.
Reliability and stability
Adhere to strict manufacturing and quality control standards to ensure stable and reliable operation in various industrial environments.
It has high reliability and stability, can operate stably for a long time, and ensures the safety and reliability of the system.
Programmability and security
Support a certain degree of custom configuration and programming to adapt to different application scenarios and requirements.
It has security and can protect industrial processes and machines from external interference and attacks.
3、 Application Fields
DSPU131 3BSE000355R1 is widely used in the fields of industrial automation and process control, especially in scenarios where interconnection and interoperability between different modules are required. The following are its main application areas:
Industrial automation system
As a bridge for effective transmission and sharing of data between different I/O modules, communication modules, and other devices.
It can process digital and analog signals from sensors, actuators, and other devices to achieve monitoring of automated production lines.
Motor control field
Receive signals from motor encoders, temperature sensors, and other devices, process them to control motor operation, and achieve precise speed control, position control, and torque control.
It can communicate with other control modules to achieve remote motor monitoring and fault diagnosis, improving motor efficiency and reliability.
Robot control system
As the brain of a robot, it receives signals from sensors, actuators, and other devices to control the robot's trajectory, posture, and actions.
It can achieve high-precision positioning, fast response, and complex action execution of robots, improving their work efficiency and safety.
process control system
In industries such as chemical, petroleum, and pharmaceutical, it can be used as a process control system to receive signals from sensors and instruments, control parameters such as temperature, pressure, and flow during the production process, and ensure the stability and safety of the process.
At the same time, it can also communicate with other control systems to achieve remote monitoring and fault diagnosis of the production process, improving production efficiency and product quality.
